Privacy Fence
Includes: New Lexington

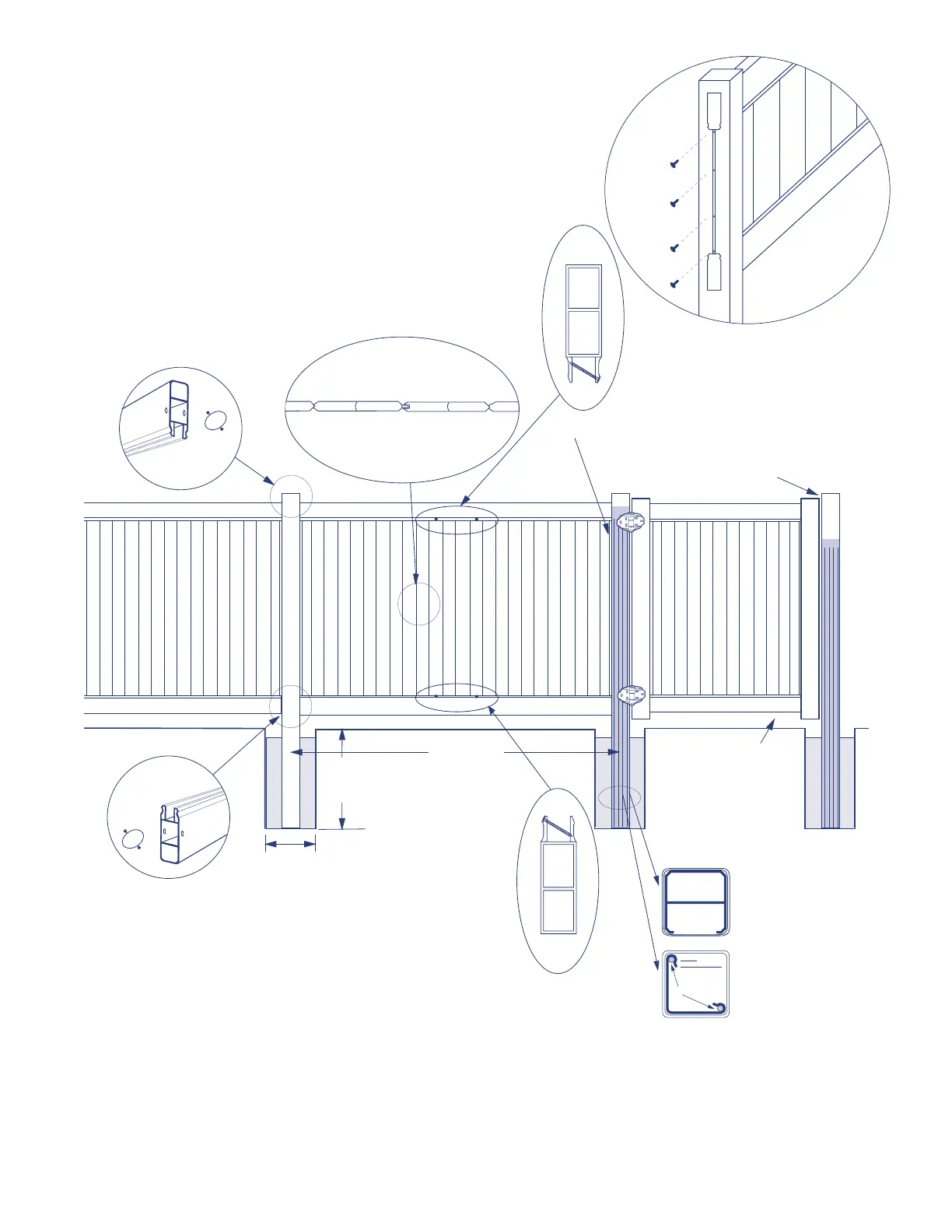

ATTACH END
CHANNEL TO POST
WITH 4 SCREWS
FOR IMPROVED WIND PERFORMANCE, ATTACH THE
CENTER TWO PICKETS TO THE TOP AND BOTTOM RAIL
WITH (4) 1-1/2" SCREWS WITH WASHERS AND SNAP
CAPS. THIS WILL NOT MEET WINDZONE
™
REQUIREMENTS.
ALLOW CLEARANCE
FOR GATE SWING
PICKETS FOR THIS STYLE
ARE TONGUE AND GROOVE
ALLOW 1" FOR HINGE
AND 3/4" FOR LATCH SYSTEM
END CHANNEL
DIG HOLES 30"
DEEP OR TO
FROST LINE
INSERT ALUMINUM GATE POST STIFFENER
INSIDE POST FOR FASTER, CLEANER INSTALLATION
REBAR
SEPARATOR CLIP
1/2" REBAR
USE (2) PIECES OF 1/2" REBAR IN HINGE,
LATCH AND END POSTS. POSITION REBAR
IN OPPOSING CORNERS OF EACH POST WITH
REBAR SEPARATOR CLIPS
POST SUPPORT OPTIONS:
POST CENTERS
5 X 5 POSTS = 97"
POST HOLES
5 X 5 POSTS = 12"
HOLD BOTTOM
RAILS IN POST
WITH LOCK
RING
HOLD TOP RAILS
IN POST WITH
LOCK RING
