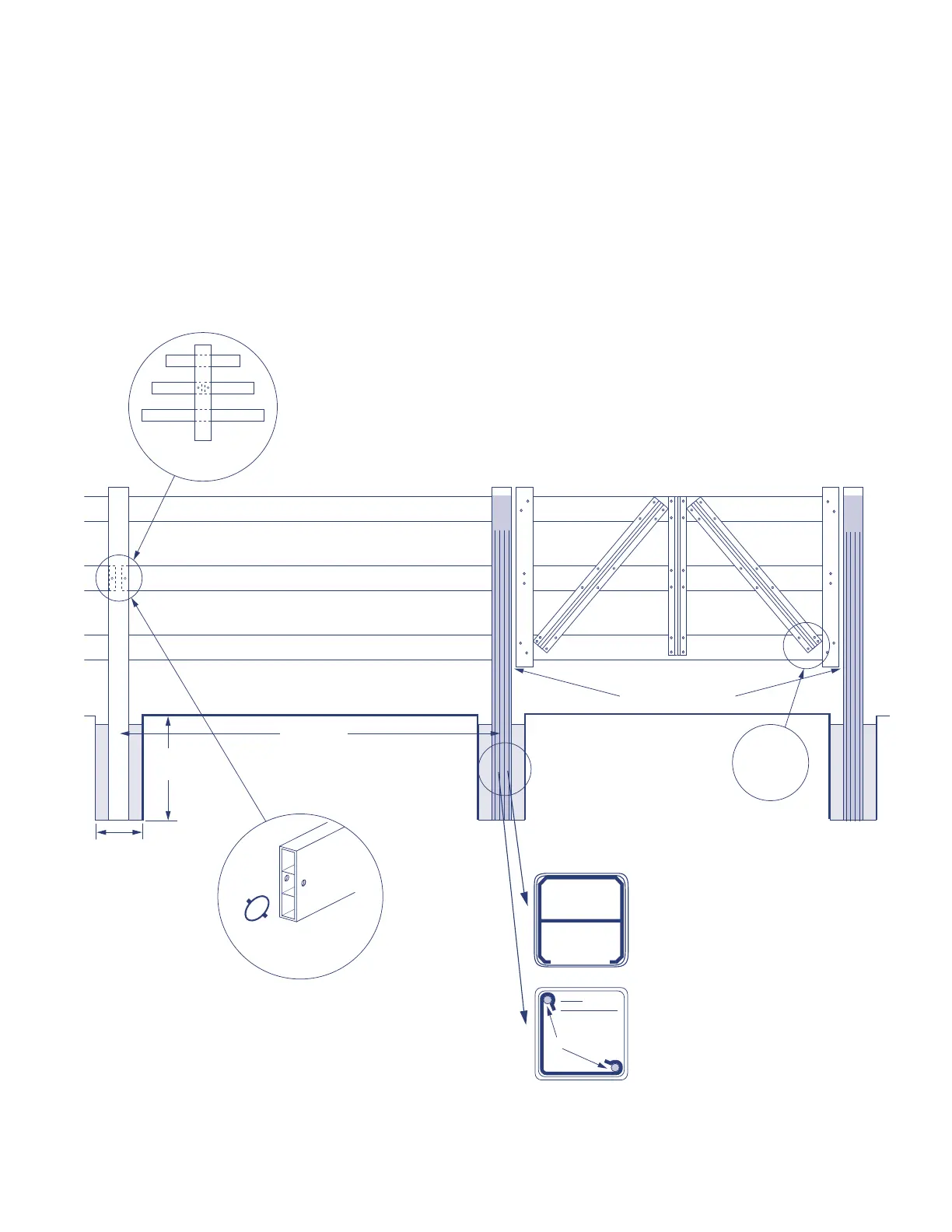

ALLOW 1-1/2" GAP ON HINGE SIDE
OF GATE AND 1-1/4" ON LATCH
SIDE OF GATE HARDWARE
HOLD RAILS IN POST WITH LOCK RING.
DEPRESS LOCK RING TABS
INSERT IN RAIL AND
RELEASE
STAGGER RAIL ENDS FOR
GREATER STRENGTH
ATTACH BRACES
ON BOTH SIDES OF
GATE IN IDENTICAL
POSITIONS
POST HOLES
5 x 5 POSTS = 12"
DIG HOLES 30"
DEEP OR TO
FROST LINE
POST CENTERS
WHITE
5 x 5 POSTS = 96"
ARCTIC BLEND, BRAZILIAN BLEND,
SIERRA BLEND, WEATHERED BLEND
5 x 5 POSTS = 72"
INSERT ALUMINUM GATE POST STIFFENER
INSIDE POST FOR FASTER, CLEANER INSTALLATION
REBAR
SEPARATOR CLIP
1/2" REBAR
USE (2) PIECES OF 1/2" REBAR IN HINGE,
LATCH AND END POSTS. POSITION REBAR
IN OPPOSING CORNERS OF EACH POST WITH
REBAR SEPARATOR CLIPS
POST SUPPORT OPTIONS:
