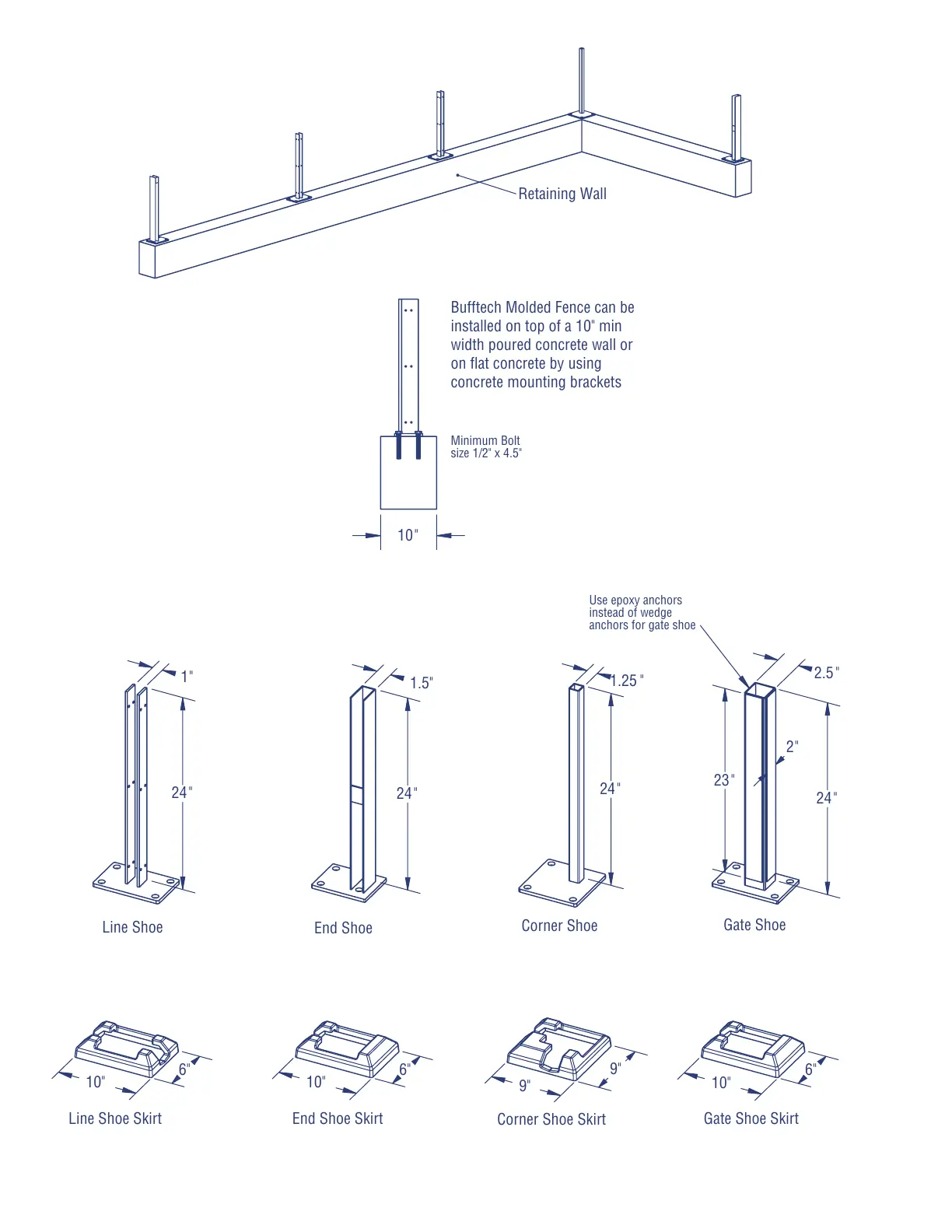

Retaining Wall
1.5"
24 "
End Shoe
10"
6"
End Shoe Skirt
Corner Shoe Skirt
Line Shoe Skirt
1 "
24 "
Line Shoe
10"
6"
9"
9"
1.25 "
24 "
Corner Shoe
2.5 "
24 "
23 "
2 "
Gate Shoe
Use epoxy anchors
instead of wedge
anchors for gate shoe
10"
6"
Gate Shoe Skirt
Minimum Bolt
size 1/2" x 4.5"
Bufftech Molded Fence can be
installed on top of a 10" min
width poured concrete wall or
on flat concrete by using
concrete mounting brackets
10"
