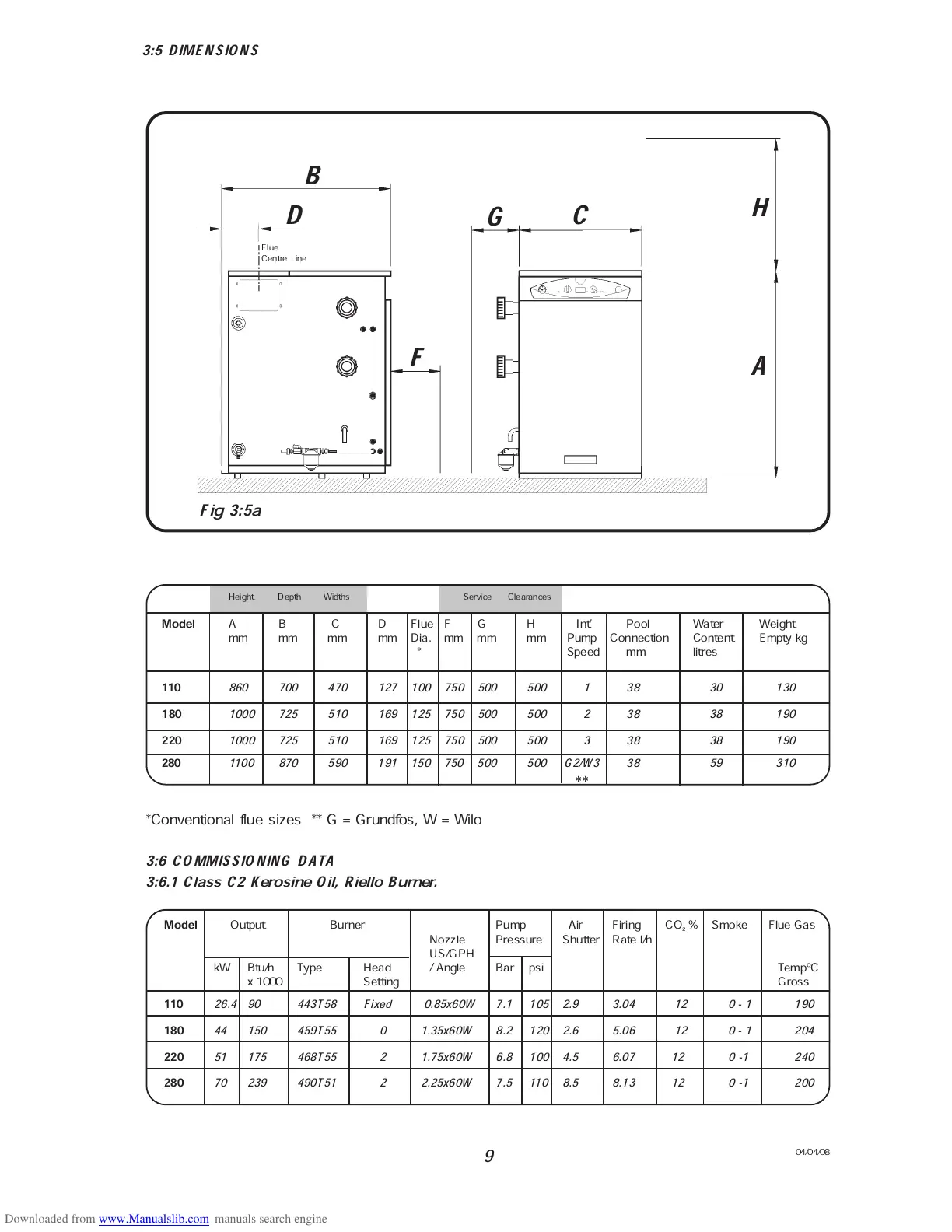

3:5 DIMENSIONS
Height Depth Widths Service Clearances
Model
A B C D Flue F G H Int’ Pool Water Weight
mm mm mm mm Dia. mm mm mm Pump Connection Content Empty kg
* Speed mm litres
110
860 700 470 127 100 750 500 500 1 38 30 130
180
1000 725 510 169 125 750 500 500 2 38 38 190
220
1000 725 510 169 125 750 500 500 3 38 38 190
280
1100 870 590 191 150 750 500 500 G2/W3 38 59 310
**
*Conventional flue sizes ** G = Grundfos, W = Wilo
3:6 COMMISSIONING DATA
3:6.1 Class C2 Kerosine Oil, Riello Burner.
04/04/08
Fig 3:5a
B
D
F
G
C
H
A
Flue
Centre Line
Model
Output Burner Pump Air Firing CO
²
% Smoke Flue Gas
Nozzle Pressure Shutter Rate l/h
US/GPH
kW Btu/h Type Head / Angle Bar psi TempºC
x 1000 Setting Gross
110
26.4 90 443T58 Fixed 0.85x60W 7.1 105 2.9 3.04 12 0 - 1 190
180
44 150 459T55 0 1.35x60W 8.2 120 2.6 5.06 12 0 - 1 204
220
51 175 468T55 2 1.75x60W 6.8 100 4.5 6.07 12 0 -1 240
280
70 239 490T51 2 2.25x60W 7.5 110 8.5 8.13 12 0 -1 200
