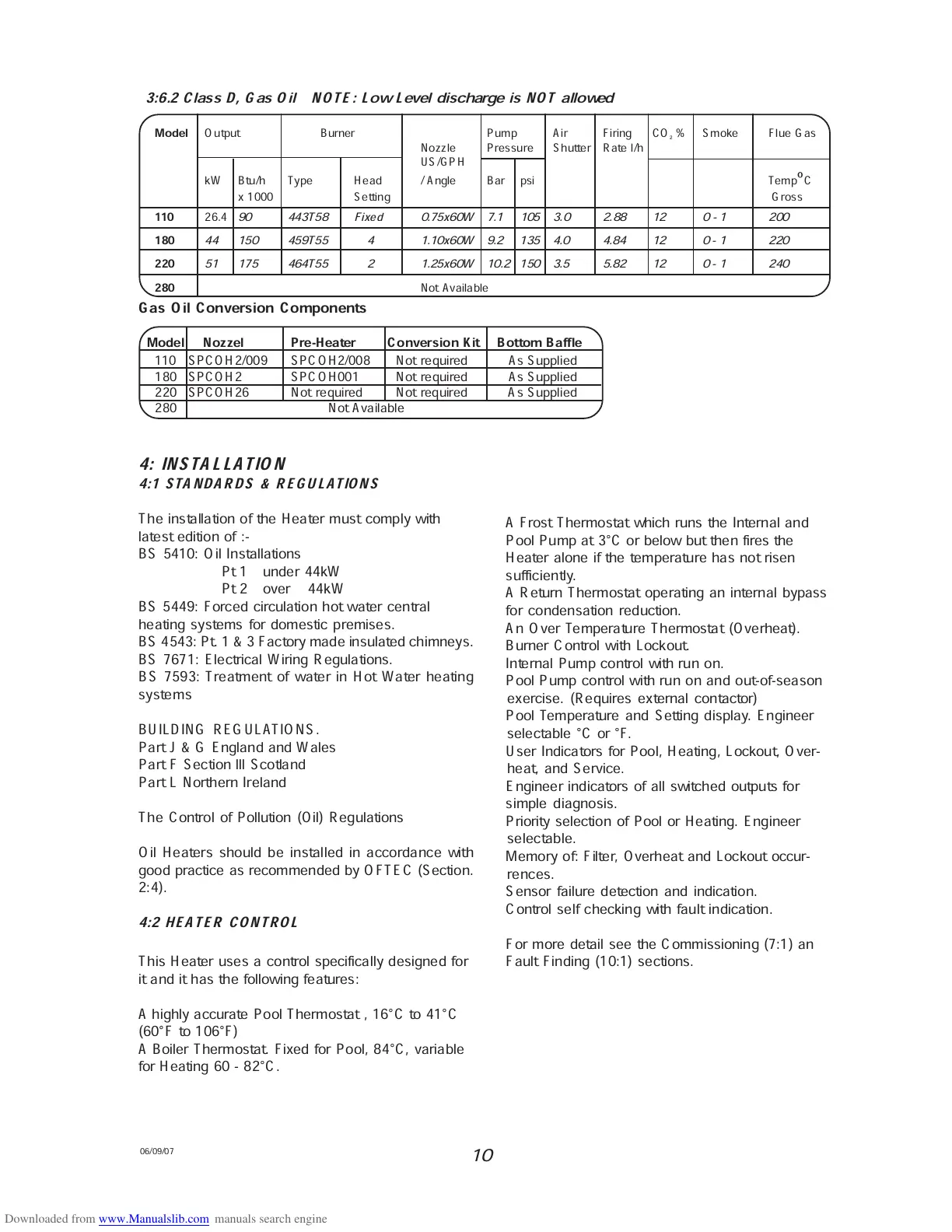

10
06/09/07
Model
Output Burner Pump Air Firing CO
²
% Smoke Flue Gas
Nozzle Pressure Shutter Rate l/h
US/GPH
kW Btu/h Type Head / Angle Bar psi TempºC
x 1000 Setting Gross
110
26.4
90 443T58 Fixed 0.75x60W 7.1 105 3.0 2.88 12 0 - 1 200
180
44 150 459T55 4 1.10x60W 9.2 135 4.0 4.84 12 0 - 1 220
220
51 175 464T55 2 1.25x60W 10.2 150 3.5 5.82 12 0 - 1 240
280
Not Available
3:6.2 Class D, Gas Oil NOTE: Low Level discharge is NOT allowed
Gas Oil Conversion Components
Model Nozzel Pre-Heater Conversion Kit Bottom Baffle
110 SPCOH2/009 SPCOH2/008 Not required As Supplied
180 SPCOH2 SPCOH001 Not required As Supplied
220 SPCOH26 Not required Not required As Supplied
280 Not Available
4: INSTALLATION
4:1 STANDARDS & REGULATIONS
The installation of the Heater must comply with
latest edition of :-
BS 5410: Oil Installations
Pt 1 under 44kW
Pt 2 over 44kW
BS 5449: Forced circulation hot water central
heating systems for domestic premises.
BS 4543: Pt. 1 & 3 Factory made insulated chimneys.
BS 7671: Electrical Wiring Regulations.
BS 7593: Treatment of water in Hot Water heating
systems
BUILDING REGULATIONS.
Part J & G England and Wales
Part F Section lll Scotland
Part L Northern Ireland
The Control of Pollution (Oil) Regulations
Oil Heaters should be installed in accordance with
good practice as recommended by OFTEC (Section.
2:4).
4:2 HEATER CONTROL
This Heater uses a control specifically designed for
it and it has the following features:
A highly accurate Pool Thermostat , 16°C to 41°C
(60°F to 106°F)
A Boiler Thermostat. Fixed for Pool, 84°C, variable
for Heating 60 - 82°C.
A Frost Thermostat which runs the Internal and
Pool Pump at 3°C or below but then fires the
Heater alone if the temperature has not risen
sufficiently.
A Return Thermostat operating an internal bypass
for condensation reduction.
An Over Temperature Thermostat (Overheat).
Burner Control with Lockout.
Internal Pump control with run on.
Pool Pump control with run on and out-of-season
exercise. (Requires external contactor)
Pool Temperature and Setting display. Engineer
selectable °C or °F.
User Indicators for Pool, Heating, Lockout, Over-
heat, and Service.
Engineer indicators of all switched outputs for
simple diagnosis.
Priority selection of Pool or Heating. Engineer
selectable.
Memory of: Filter, Overheat and Lockout occur-
rences.
Sensor failure detection and indication.
Control self checking with fault indication.
For more detail see the Commissioning (7:1) an
Fault Finding (10:1) sections.
