Certikin COH280 - 4:10 WIRING DIAGRAM

Default Icon
96 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
Boiler sensor
Pool sensor
Pool demand
Heating demand
Heater pump
Burner
Bypass valve
N
L
Pool demand
Heating demand
Heater pump
Pool pump
Burner
Lockout
Pool thermostat
Pool demand
Heating demand
Heating thermostat
Display
Overheat Stat
Overheat
Lockout
Filter
E
E
N
N
Pressure
Switch
Permanent Live
Return Stat
Pool Pump
E
N
Burner Sensor
Pool Sensor
Pressure Switch
Overheat Stat
Wh
Wh
Wh
R
Or
R
R
Or
B
Bl
Y
Br
R
R
Wh
Wh
Wh
Wh
Br Bl
V
Gr
Gr
V
P
P
Or
Br
B
B
Pool Pump
Contactor
(not supplied)
Switched Supply
Example Pump Installation
Black
Blue
Brown
Grey
Orange
Pink
Red
Violet
White
KEY
Eg. CCP01
Fuse 315 mA AS LRC
N
Heater pump
Sensor Common
Y
Yellow
Pool Pump
N
>
>
>
>
>
<
<
Br
Bl
V
Gr
Or
Factory Fitted Link
Remove if seperate
switched live supplied
121007 Fuse was 250 mA, uprated to 500 mA
011007
18
4:10 WIRING DIAGRAM

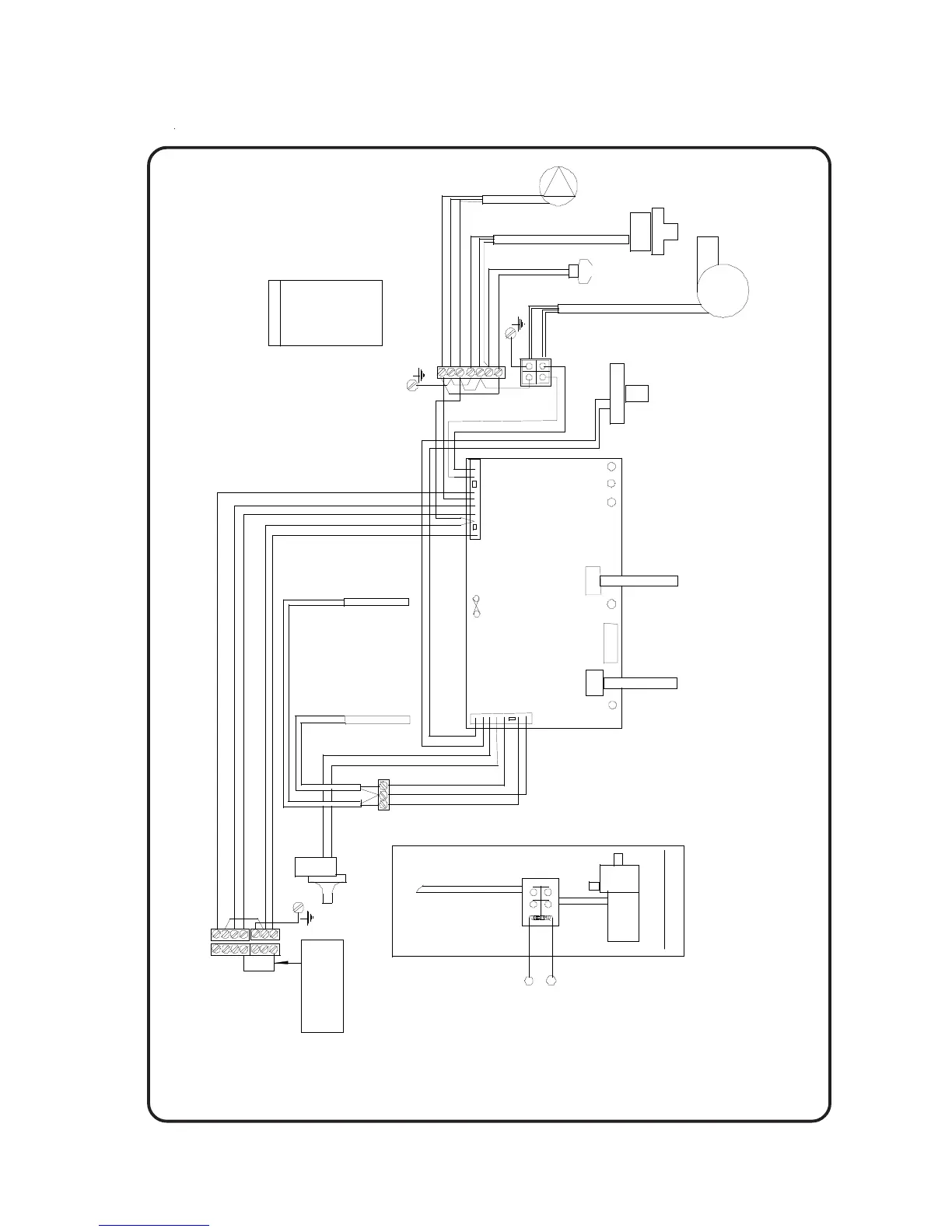

SCHEMATIC WIRING
Fig. 4:10a
01/10/07
