Setting Heating Knob On or Off Fascia Indicator
1 Heater temperature * Actual temperature Set Temperature e.g. 20 & 70
Factory setting Alternative
2 Display units °F = Fahrenheit °C = Centigrade °F or °C
3 Priority P = Pool H = Heating P or H
4 Filter memory Off On On or OFF
4 Filter pressure log # Number of Operations Resets to zero Yellow Filter LED on
5 Burner Lockout log # Number of Operations Resets to zero Red Lockout LED on
6 Boiler Overheat log # Number of Operations Resets to zero Red Overheat LED on
7 Version number - - e.g. 010
*
In this position with the Pool Temperature Control Knob Off, the Heater can be run for test purposes, if there
is a Space Heating demand, by turning On the Heating Temperature Control Knob.
# Reset the log by turning the Heating Temperature Control Knob On or Off.
Table 10:2.1 Control Display in Setup Mode.

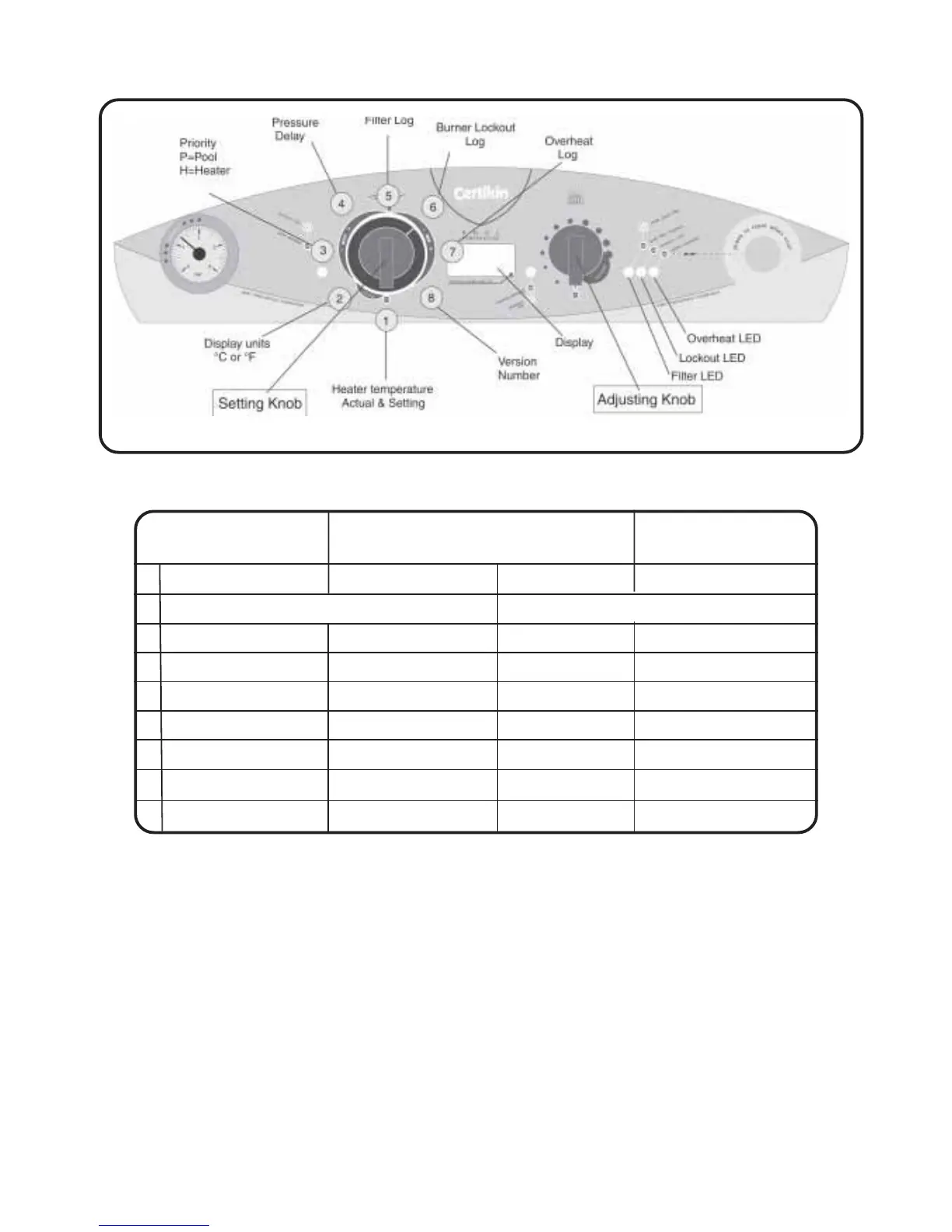

Fig 10:2a
