Certikin MB155 - Page 14

12MB Pool & spa heater
12
2/06/04

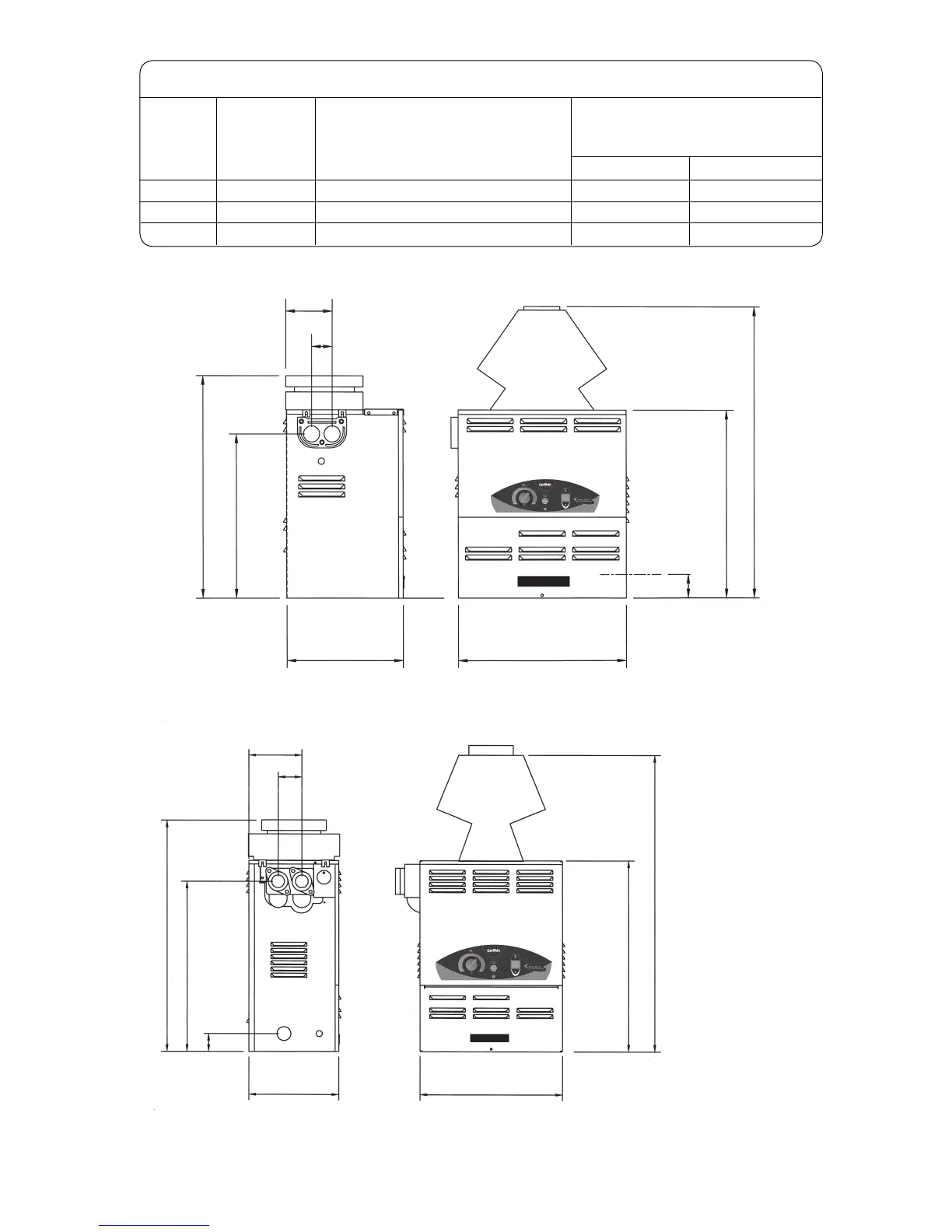

SPECIFICATIONS & DIMENSIONS 055 - 105 - 155
MODEL FLUE DIA CONNECTIONS SHIPPING WEIGHT
GAS WATER kg (lbs)
mm (in.) APPLIANCE DIVERTER
055 100 (4) ½" 1½" NPT 31.8 (70) 2.3 (5)
105 127 (5) ½" 1½" NPT 48 (105) 3.5 (8)
155 152 (6) ¾" 2" NPT 62 (135) 3.5 (8)
825mm
(32 - 1/2")
Gas Connection
60mm
(2 -
3/8")
525mm
(20 -
3/4")
455mm
(18")
620mm
(24 -
1/2")
130mm
(5 -
1/8")
325mm
(12 -
7/8")
475mm
(18 - 3/4")
65mm
(2 -
1/2")
85mm
(3 -
3/8")
190mm
(7 -
1/2")
Gas Con-
nection
65mm
(2 -
1/2")
325mm
(12 -
3/4")
510mm
(20")
690mm
(27 -
1/4")
1070mm
(42")
610mm
(24")
DIMENSIONS - 105 Model Only
DIMENSIONS - 055 Model Only
835mm
(32 -
7/8")
