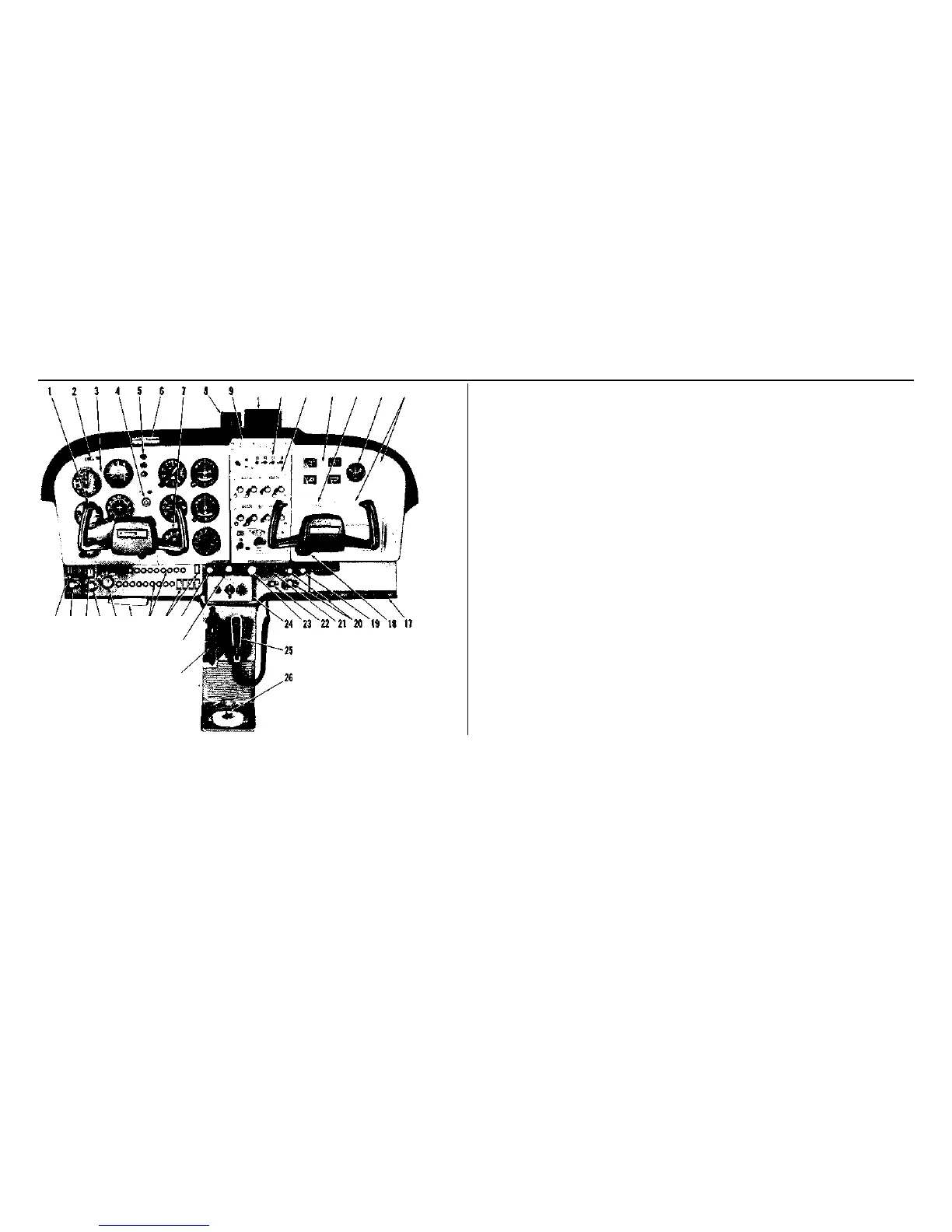

24. Autopilot Control Unit (Opt.)
25. Microphone (Opt.)
26. Fuel Selector Valve Handle
27. Elevator Trim Control Wheel
28. Throttle
29. Carburetor Heat Control
30. Electrical Switches
31. Circuit Breakers
32. Parking Brake Handle
33. Ignition/Starter Switch
34. Instrument and Radio Dial
Light Rheostats
35. Master Switch
36. Primer
37. Phone Jack
37 36 35 34 33 32 31
30 29
28
27
1. Boom Microphone Keying
Switch (Opt.)
2. Aircraft Registration Number
3. Flight Instrument Group 14.
4. Suction Gage (Opt.) 15.
5. Marker Beacon Indicator 16.
Lights and Switches (Opt.)
6. Compass Correction Card 17.
7. Tachometer 18.
8. Magnetic Compass 19.
9. Radio Selector Switches (Opt.) 20.
10. Rear View Mirror (Opt.) 21.
11. Transponder (Opt.) 22.
12. Radios (Opt.)
13. Fuel and Oil Gages 23.
Over-Voltage Warning Light
Ammeter
Optional Instrument and
Radio Space
Map Compartment
Wing Flap Position Indicator
Cigar Lighter
Cabin Air and Heat Controls
Wing Flap Switch
Static Pressure Alternate
Source Valve (Opt.)
Mixture Control Knob
