TITLE: Supplemental Airplane Flight Manual
A-10060
03/04/15
SUBTITLE:
Cessna 206 on Model 3400 Floats
REVISION: D
FAA Approved
G600 Landing Gear Advisory Unit
LANDING GEAR HANDLE
The landing gear handle is an electrical switch mounted within a control
unit on the instrument panel, and has two positions (UP for gear up and
DOWN for gear down) which give a mechanical indication of the gear
position selected. From either position, the handle must be pulled out to
clear a detent before it can be repositioned. Moving the handle to UP or
DOWN will start the reversible, electrically-driven hydraulic pump in the
selected direction of gear travel. Operation of the landing gear system will
not begin until repositioning of the handle is complete.
INDICATOR LIGHTS

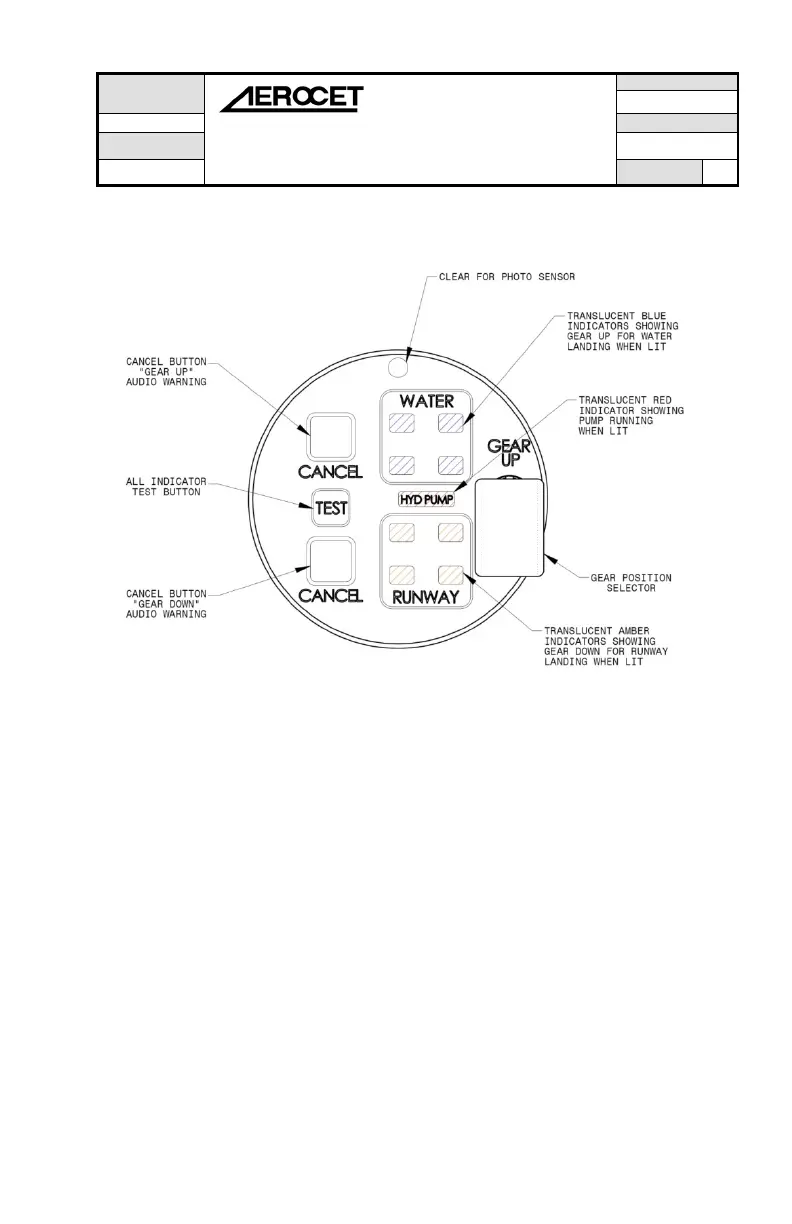

Eight indicator lights are mounted on the Landing Gear Advisory Unit
adjacent to the landing gear handle. The four blue indicator lights, labeled
WATER, (positioned respective to their location on the float, i.e. top left –
front left gear) show by their illumination that the landing gear is up.
