Cessna SKYCATCHER 162 - Reduced Tank Capacity

SECTION 2 CESSNA
AIRPLANE AND SYSTEM DESCRIPTION MODEL 162
GARMIN G300
U.S.
FUEL SYSTEM (Continued)
REDUCED TANK CAPACITY
The airplane may be serviced to a reduced capacity to permit heavier
cabin loadings. This is accomplished by filling each tank to the bottom
edge of the fuel filler indicator tab, thus giving a reduced fuel load of 3
gallons usable (minimum takeoff fuel) in each tank. Continued filling to
each subsequent hole in the indicator tab will add an additional 3
gallons usable fuel per tank. Do not fuel above top hole as fuel
expansion may cause overflow from fuel vent.

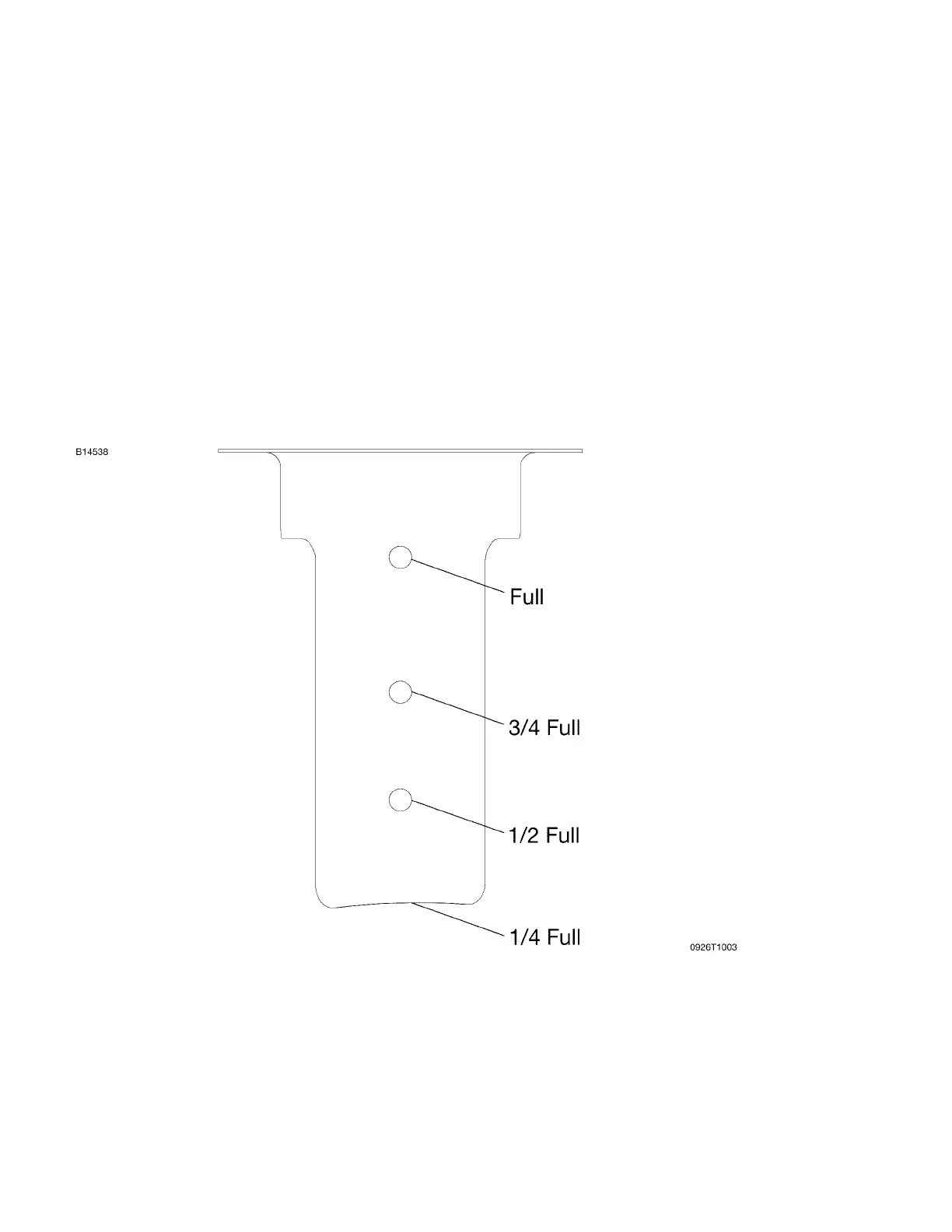

IN-TANK FUEL FILLER INDICATOR TAB
(Continued Next Page)
Figure 2-3*
162PHUS-01
2-18
