Spectrum Analysis
Vibrex 2000 and Vibrex 2000 Plus User Guide 115
The illustration below shows an example of the Spectrum Viewer screen.
In this screen, the
<RPM PEAK IPS>
context key becomes the
CYCLE
VIEW
(icon) key. These keys have the same function. Use the Arrow keys
to move the cursor position.
See Section 5.6.2 “Collecting Spectral Data” on page 111 for detailed
information on these screens. All other spectrum features with the
Vibrex 2000 Plus operate in the same way as they do with the
Vibrex 2000 model.
???

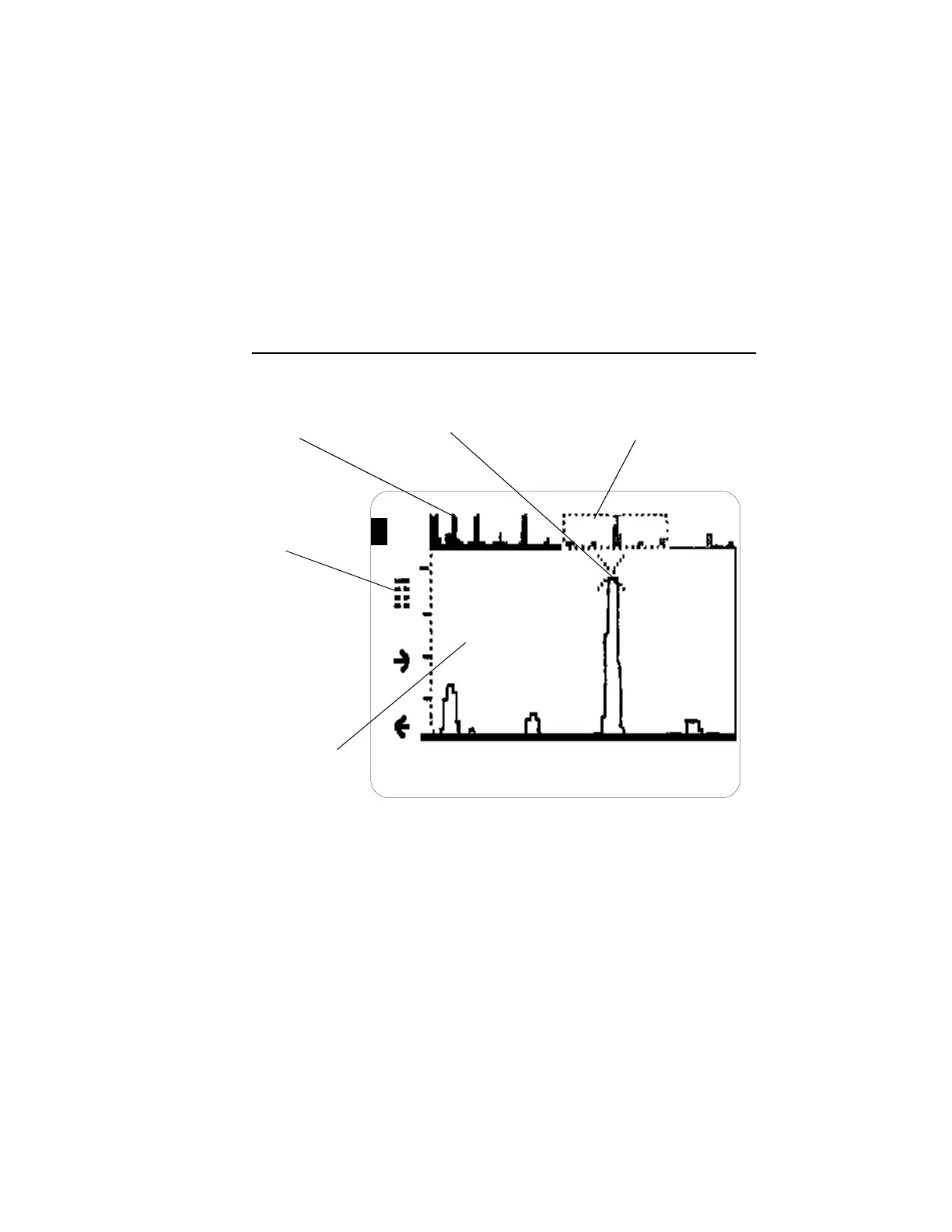

0.86 IPS 15300 RPM
SET ZOOM AREA IDENTIFIED
BY DOTTED LINE
FULL SPECTRUM
VIEW
ZOOMED
AREA VIEW
CYCLE VIEW
CONTEXT
KEY
CURSOR
POSITION
