CHAFFOTEAUX NIAGARA C 25 CF Installation And Servicing Instructions

44
Installation
GB
Commissioning
ROOM
OTS
CN01
CN16
CN21
DISPLAY
CN02
CN25
FLOW
CN14
TIMER
CN15
FAN
PUMP + SPEED
DIVERTR VALVE
CN11
FAST FUSE 2A
CN24
CN08
FLAME
CN5
EARTH
CN19
1234
CN3
N L
CN20
FILLING EXT. P.
CN12
FAN PUMP
PUMP
SPEED
1 2 3 4 5 6
CN10
DIVERTER VALVE
CN9
12 11 10 9 8 7 6 5 4 3 2 1
CN22
11 10 9 8 7 6 5 4 3 2 1
CN04
2
1
CN17
CN13
1 2 3 4
Fusible de protection
230 V - 2A
Electrode
ionisation
5
1
Achage
Sonde extérieure
Circulateur
Vanne distributrice
Débistat
sanitaire
Commande à distance
Circulateur sanitaire
B- Platine autres options
Thermostat plancher chauant
Thermostat d’ambiance (option)
Sonde sanitaire
P
Sonde pression circuit primaire
Vanne gaz
1110 9 8 7 6 5 4 3 2 1
CN04
Thermostat surchaue
121110 9 8 7 6 5 4 3 2 1
CN22
Sonde départ circuit primaire
Sonde retour circuit primaire
Sonde ballon
CN17
2
1
Sonde solaire
Allumeur
N
N
N
N
N
M
M
B
N
M
B
G
G
N
N
Bl
Bl
N
M
B
N = Noir B = Bleu Bl= Blanc R = Rouge V = Vert M = Marron G = Gris
Sonde fumée
M
M
6
1
A- Platine e-bus (option)
L N
B 1 2 3 4 5 6
T
E-BUS TA1 FLOORE-BUS SE
TA2
Bl
B
N
N
Bl
Bl
G
G
B
M
N
N
N
R
R
V
V
G
B
A

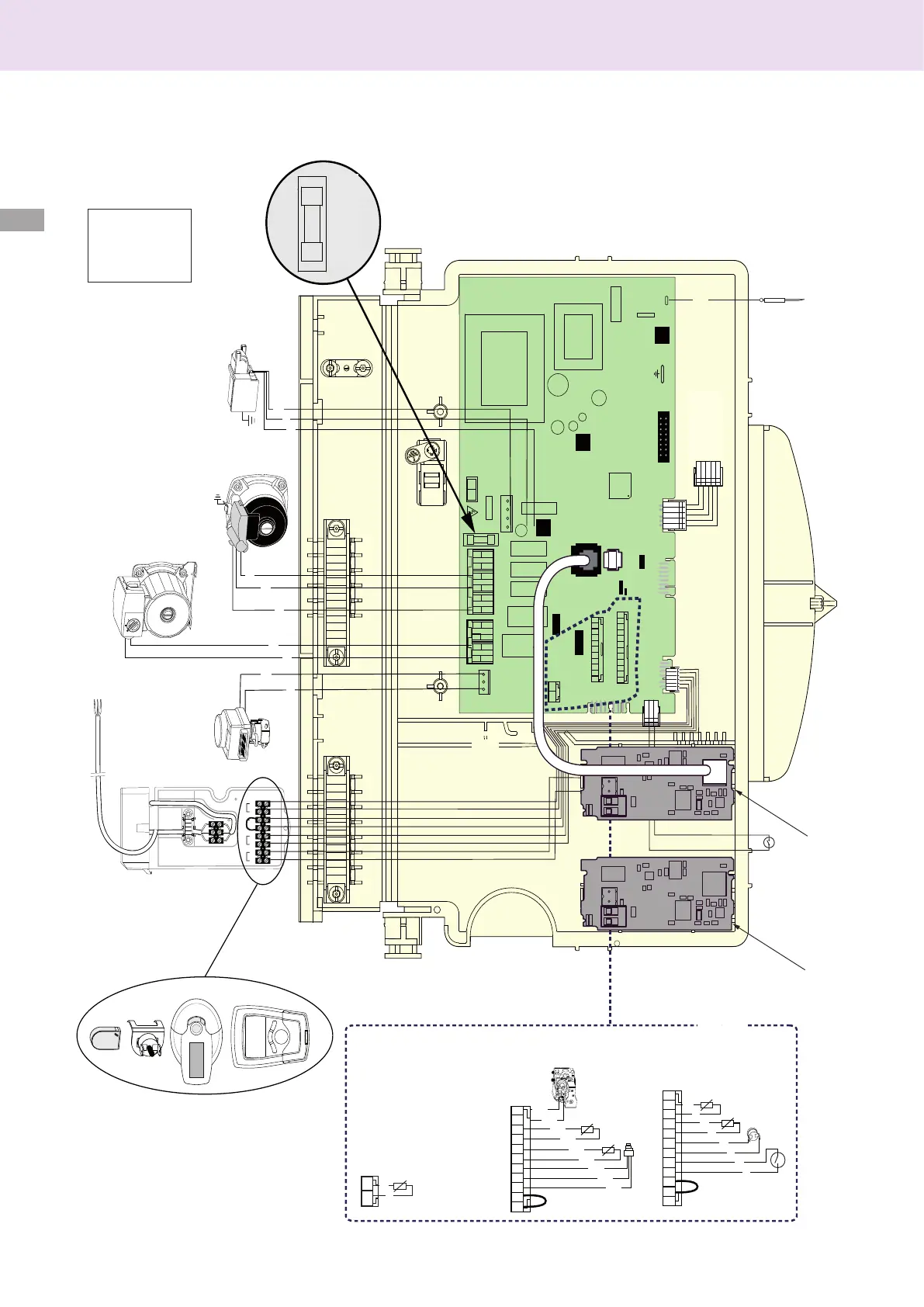

Boiler electrical diagram
For greater safety, the electrical installation should be thoroughly checked by a qualied person.
The manufacturer is not responsible for any damage caused by failure to earth the system or any electrical supply faults.
Remote
Control
Room
Thermostat
(option)
Room
Thermostat 2
External
sensor
Solar temp. probe
Gas valve
Water pressure sensor
Domestic hot water circuit sensor
Tank sensor
overheat sensor
C.H. return temperature probe
C.H. Flow temperature probe
D.H.W ow
switch
B - Platine others options
Detection
electrode
Display
Diverter
valve
Circulation pump with air release valve
Circulation pump heating
Ignitor
Protection fuse
230 V - 2A
smoke sensor
Black
Blue
White
Red
Green
Brown Grey
A - Platine Bus (option)
