Chapter 2
18

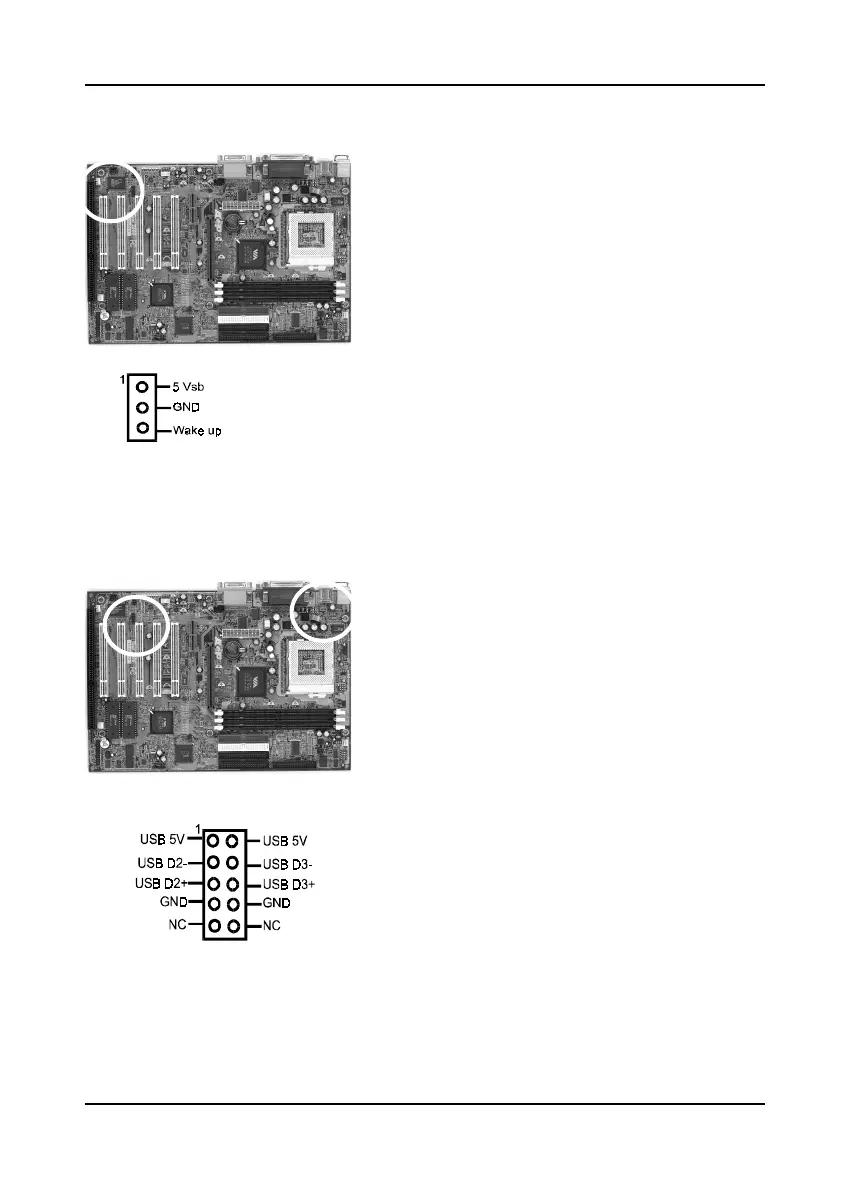

WOL (Wake-on-LAN) Connector (CN6)
Enable the Wake Up On LAN selection in BIOS's
Power Management Menu to use this function.
The capability to remotely manage PCs on a
network is a significant factor in reducing
administrative and ownership costs. Magic Packet
technology is designed to give WOL (Wake-on-
LAN) capability to the LAN controller. When a
PC capable of receiving wake up command goes
to sleep, the Magic Packet mode in the LAN
controller is enabled. When the LAN controller
receives a Magic Packet frame, the LAN controller
will wake up the PC. This header is used to
connect an add-in NIC (Network Interface Card)
which gives WOL capability to the mainboard.
USB Ports and USB 2/3 Connector (CN14)
If you want to use a USB keyboard, you must
enable the USB keyboard support function in
BIOS's Integrated Peripherals menu (See Section
3-7). USB is an open industry standard, providing
a simple and inexpensive way to connect up to
125 devices to a single computer port. Keyboards,
mice, tablets, digitizers, scanners, bar-code readers,
modems, printers and many more can all be used
at the same time.
USB is a dynamically reconfigurable serial bus
with an elementary data rate of 12Mbps. Based
on off the shelf, low cost micro-controller
technology, its modular layered software protocol
supports sophisticated devices and application
programs.
This board contains a USB Host controller and
includes a root hub with two USB ports (meets
USB Rev 1.0 spec.) and a connector for optional
USB Adaptor (USB2/3). Four USB peripherals or
hub devices are able to be connected.
USB 2/3
USB 0/1 ports
