Chapter 3
39
3-8 Frequency/Voltage Control
By choosing the Frequency/Voltage Control option from the CMOS Setup Utility
menu (Figure 3-1), the screen below is displayed. This sample screen contains the
manufacturer's default values for the motherboard.

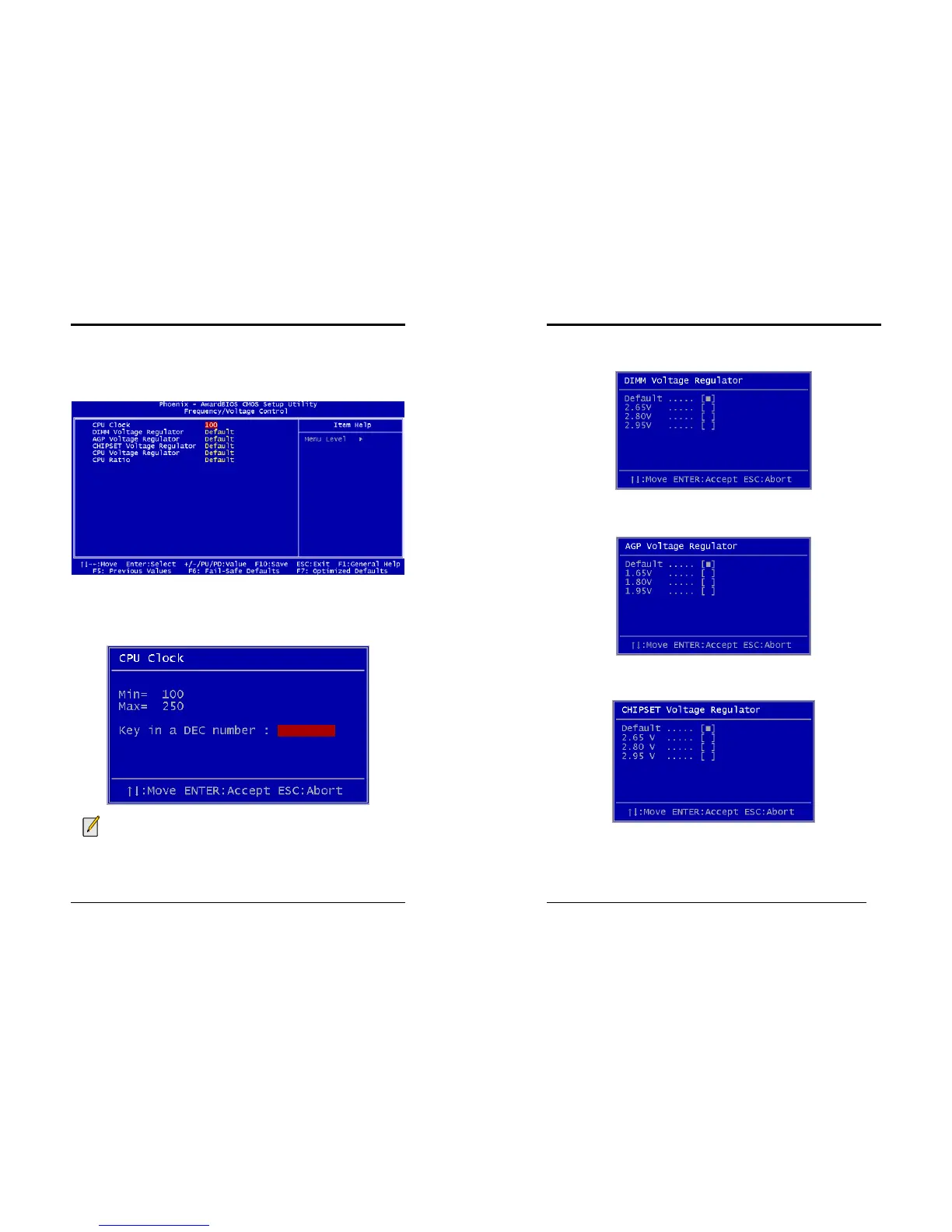

Figure 3-9 Frequency/Voltage Control
CPU Clock:
This feature allows the system memory to run at a particular CPU clock speed. The
default setting is at 100Mhz.
This motherboard can support memory overclocking up to 250 MHz, provided
that, the CPU clock must be set to run at 133Mhz FSB.
Chapter 3
40
DIMM Voltage Regulator
This feature allows the system memory to run at Power ON of Voltage.
AGP Voltage Regulator
This feature allows the AGP bus to work at a particular Voltage.
CHIPSET Voltage Regulator
This feature allows the motherboard CHIPSET to work at a particular Voltage.
