core
L2
Cache
Micron
process
700
700MHz
100 7.0 1.70V 256KB 0.18
750
750MHz
100 7.5 1.70V 256KB 0.18
800
800MHz
100 8.0 1.70V 256KB 0.18
850
850MHz
100 8.5 1.70V 256KB 0.18
900
900MHz
100 9.0 1.75V 256KB 0.18
950
950MHz
100 9.5 1.75V 256KB 0.18
1000
1000MHz
100 10.0 1.75V 256KB 0.18
1100
1100MHz
100 11.0 1.75V 256KB 0.18
1200
1200MHz
100 12.0 1.75V 256KB 0.18
1300
1300MHz
100 13.0 1.75V 256KB 0.18
1400
1400MHz
100 14.0 1.75V 256KB 0.18
1000
1000MHz
133 7.5 1.75V 256KB 0.18
1113
1113MHz
133 8.5 1.75V 256KB 0.18
1200
1200MHz
133 9.0 1.75V 256KB 0.18
1333
1333MHz
133 10.0 1.75V 256KB 0.18
1400
1400MHz
133 10.5 1.75V 256KB 0.18
AMD Athlon XP CPU (Palomino/Thunderbird)
Model
CPU
Speed
FSB
Frequency
Multiplier Vcore
L2
Cache
Micron
process
1500+ 1333MHz 133 10.0 1.7V 256KB 0.18
1600+
1400MHz
133 10.5 1.7V 256KB 0.18
1700+
1467MHz
133 11.0 1.7/1.6V 256KB 0.18/0.13
1800+
1500MHz
133 11.5 1.7/1.6V 256KB 0.18/0.13
1900+
1600MHz
133 12.0 1.7/1.6V 256KB 0.18/0.13
2000+
1666MHz
133 12.5 1.7/1.6V 256KB 0.18/0.13
2100+
1733MHz
133 13.0 1.7/1.6V 256KB 0.18/0.13
2200+
1800MHz
133 13.5 1.65V 256KB 0.13
2400+
1995MHz
133 15.0 1.65V 256KB 0.13
2600+
2128MHz
133 16.0 1.65V 256KB 0.13
Chapter 2
8
2-3 Main Memory Configuration

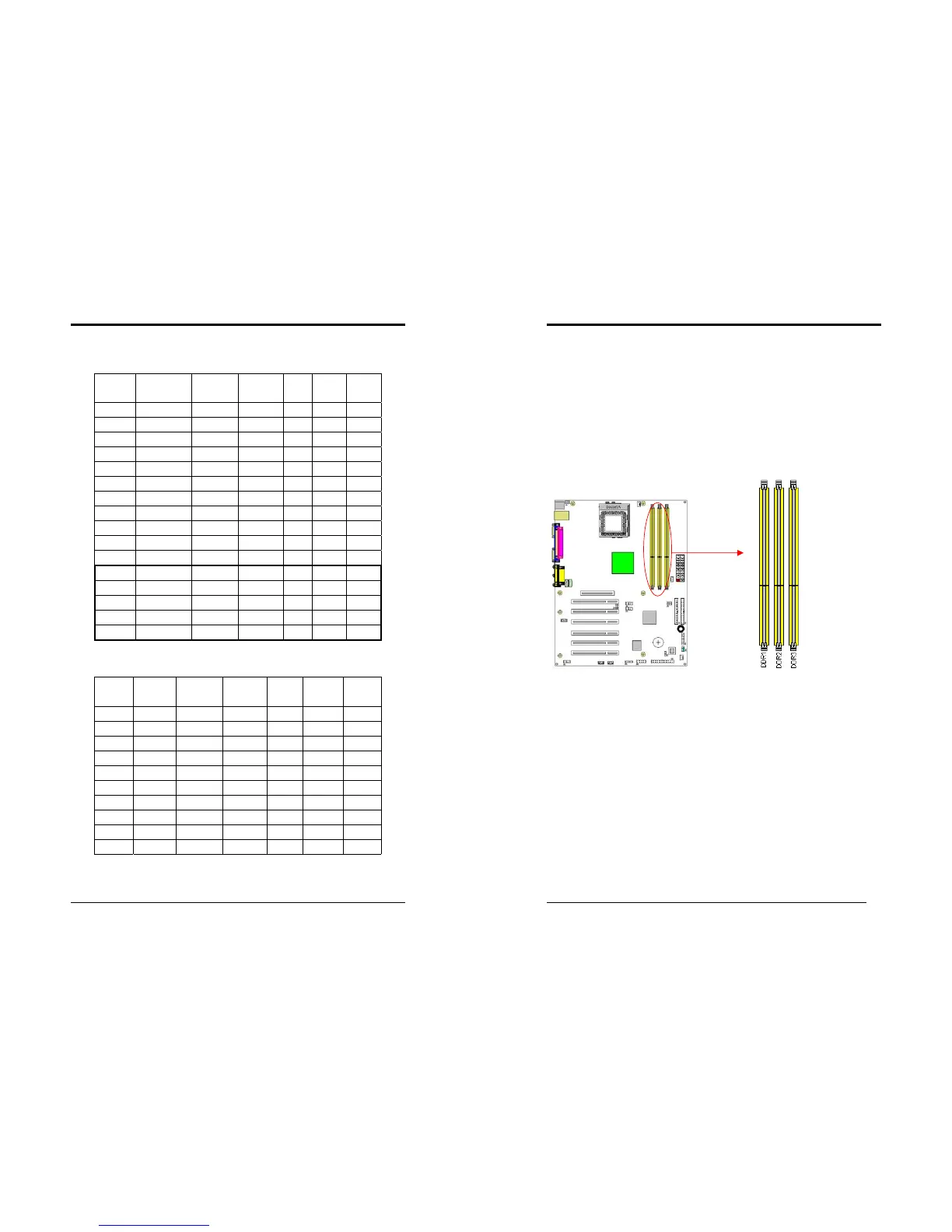

This motherboards provides 3 184pin Double Data Rate (DDR) Dual Inline Memory
Modules (DIMM) slots. Which supports PC 1600/DDR200 or PC2100/DDR266
DDR SDRAM modules up to 3GB. Install at least one DIMM module on the slots.
Memory modules can be installed on the slots in any order. You can install either
single- or double-sided modules to meet your own needs. The DDR SDRAM
memory system consists three banks and each bank can support up to 1GB memory
size. If you only use one bank it does not matter which one you use and if you use
two or more banks, it does not matter which bank you install first.
DRAM Specifications
DIMM type: 2.5V unbuffered 64/128/256/512-bit DDR SDRAM.
Module size: Single/double-sided 64/128/256/512MB/1GB.
Parity: Ether parity or non-parity.
To Next Page
