7. Assembly
Always pull out the power plug before carrying
out any maintenance or conversion work.

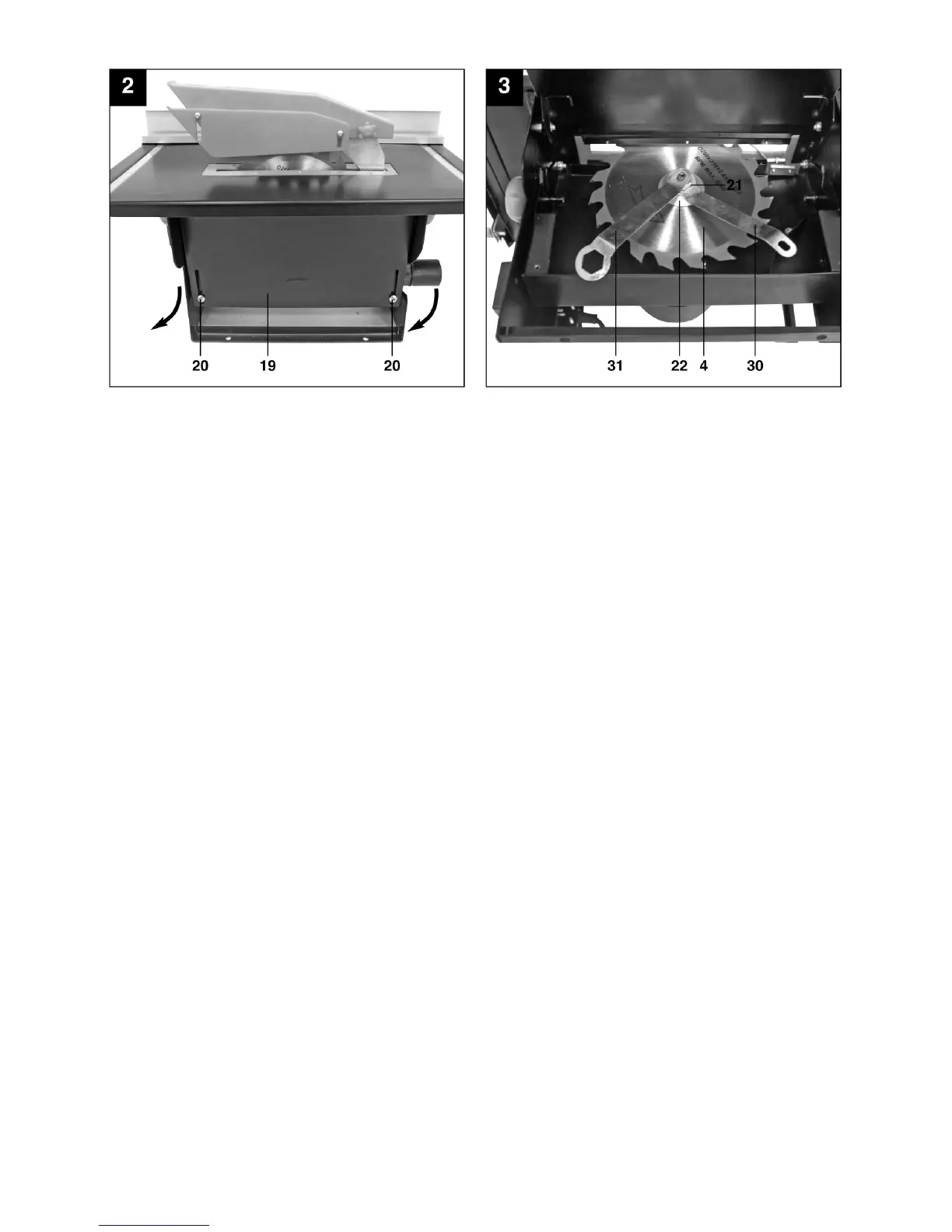

7.1 Fitting the saw blade (Fig. 2/3)
• Caution!Pulloutthepowerplug.
• Unscrewthefixingscrews(20)andremovechip
bin cover (19).
• Undothenut(21)witharingwrench(30)onthe
nut itself and a face spanner (31) on the saw shaft
to apply counter-pressure.
• Caution!Turnthenutinthedirectionofrotationof
the saw blade (4).
• Takeofftheouterflange(22)andpulltheoldsaw
blade (4) off the inner flange by dropping the blade
at an angle.
• Cleanthemountingflange.
• Fitthenewsawbladeinreverseorder.
• Caution!Notethedirectionofrotation(seearrow
on the saw blade).
Please note that the saw bench is supplied with the
saw blade (4), splitter (5) and the saw blade guard (2)
already fitted.
