F.669-D/820-870/Jan 98
Medalist Air Feed Table Model Folder

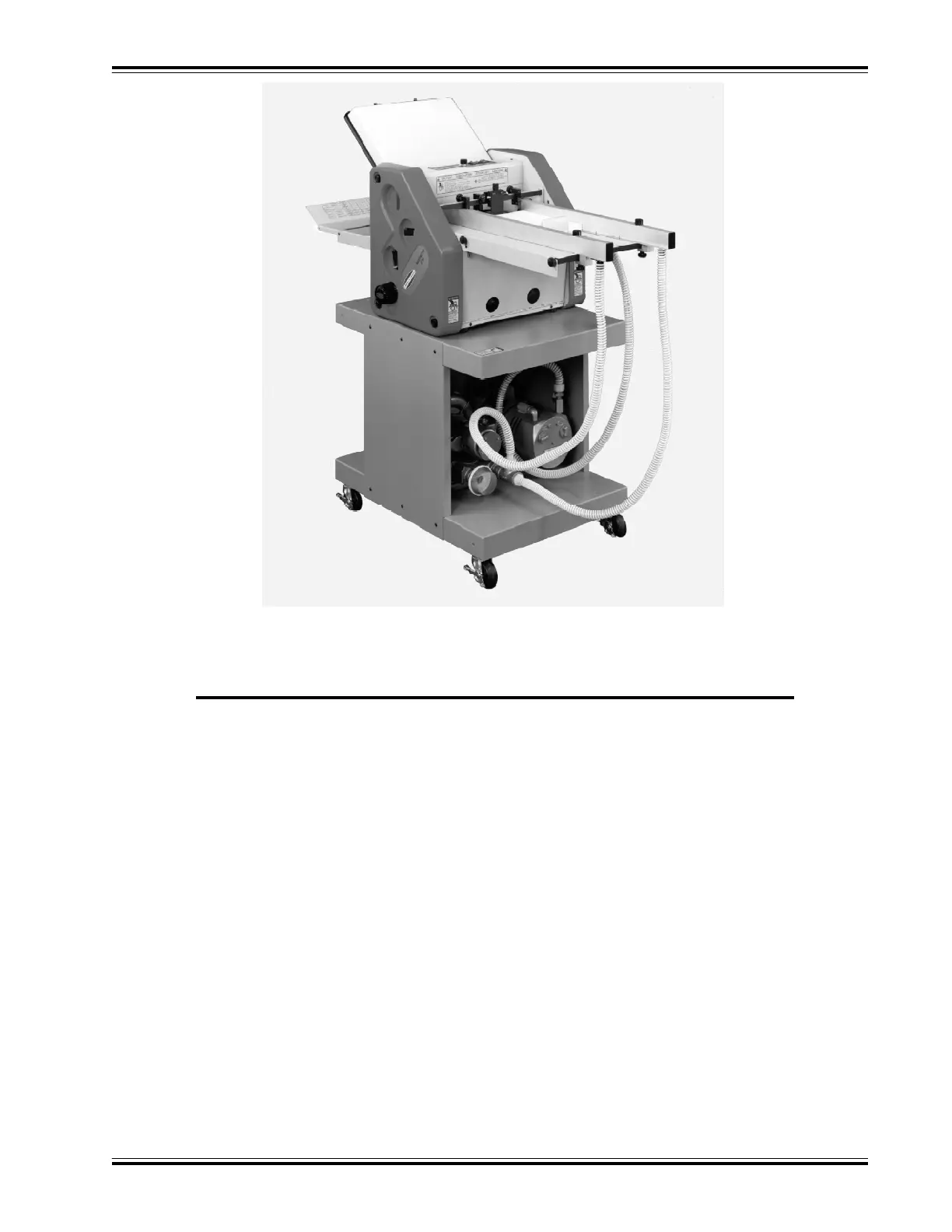

(870 shown with stand)
PACKING LIST
Your folder has been carefully packaged to prevent damage in shipment. Inspect all
shipments as soon as they are received. Note any signs of damage on the freight bill and
notify the claims department of the carrier within 15 days. All claims for damage or loss
are the responsibility of the receiver, INSPECT PROMPTLY! Check the contents of your
container(s)* against the following list. NOTE: The vacuum-pump unit is shipped in a
separate container.*
In the folder carton you should find the following sub assemblies:
1). Base Machine
2). Feed Table Assembly
3). First Fold Plate
4). Second Fold Plate
5). Stacker Tray Assembly
6). Stacker Wheel Assembly
7). Accessory Package (see parts list of Standard Accessories, pg 66)
8). Vacuum Tubes (3)
9). Sound Guard
10). Feeder Back Stop
11).* Compressor Unit
12).* Strainer, Pump Unit P-102
The folder stand will arrive in a separate carton.
(fig. 1)
