F.669-D/820-870/Jan 98
8
Note: For Right Angle & Crosscarrier assembly see
page 20. Open the stand carton first and assemble ac-
cording to the instructions enclosed. Using two people,

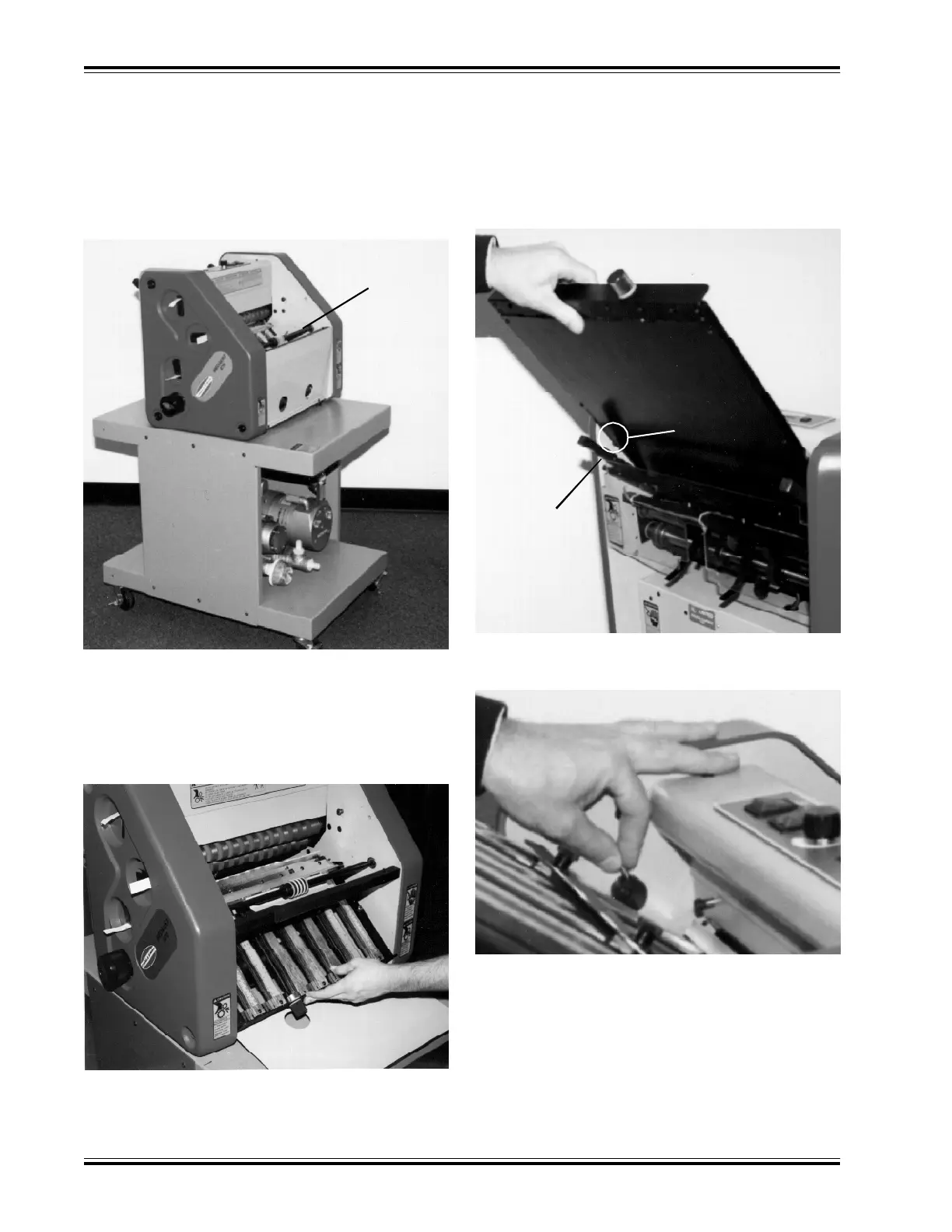

center the folder on the stand as shown, fig. 3, with the
stand opening towards the front.
INSTALLATION
(fig. 3)
Remove the parts of the folder checking them against
the packing list on page 3 of this manual. (Remove and
save the roller spacers on 820 only.)
Steps for assembling the Medalist folder:
the rail guides, (fig. 4), and tighten the eccentric plate
locks, (fig. 6). Note both plates have two sets of locat-
ing holes in the plate rails. The first set is used when
the plate deflector is down, the other when the plate is
open, see fig. 5.
(fig. 5)
2. Install the #1 (upper) foldplate, fig. 5.
(fig. 6)
3. Make sure the foldplate pins are located in the guide
rails, then lower the plate locks, (fig. 6).
Place the sound cover on top of the #1 foldplate. (the
sound cover is optional on 820 model).
4. Install the feed table. Insert the table between the
(fig. 4)
1. Install the #2 (lower) foldplate. Lower the cover and
insert the #2 foldplate making sure the pins latch into
Do Not Lift
on Drive
Shaft
(round bar)
Notched
Plate Rail
#1 Fold Plate/
Locating Pins
To Next Page
