Chamberlain 1265 - Installation Parts; Rail Assembly Parts; Repair Parts Pages

7
10
11
5
NOTICE
UP
CEILING MOUNT ONLY
8
6
1
4
3
2
LOCK
LIGHT
9
12
1
3
4
5
RAIL GREASE
NO. 83A4
6
2
Installation Parts
33
REPAIR PARTS

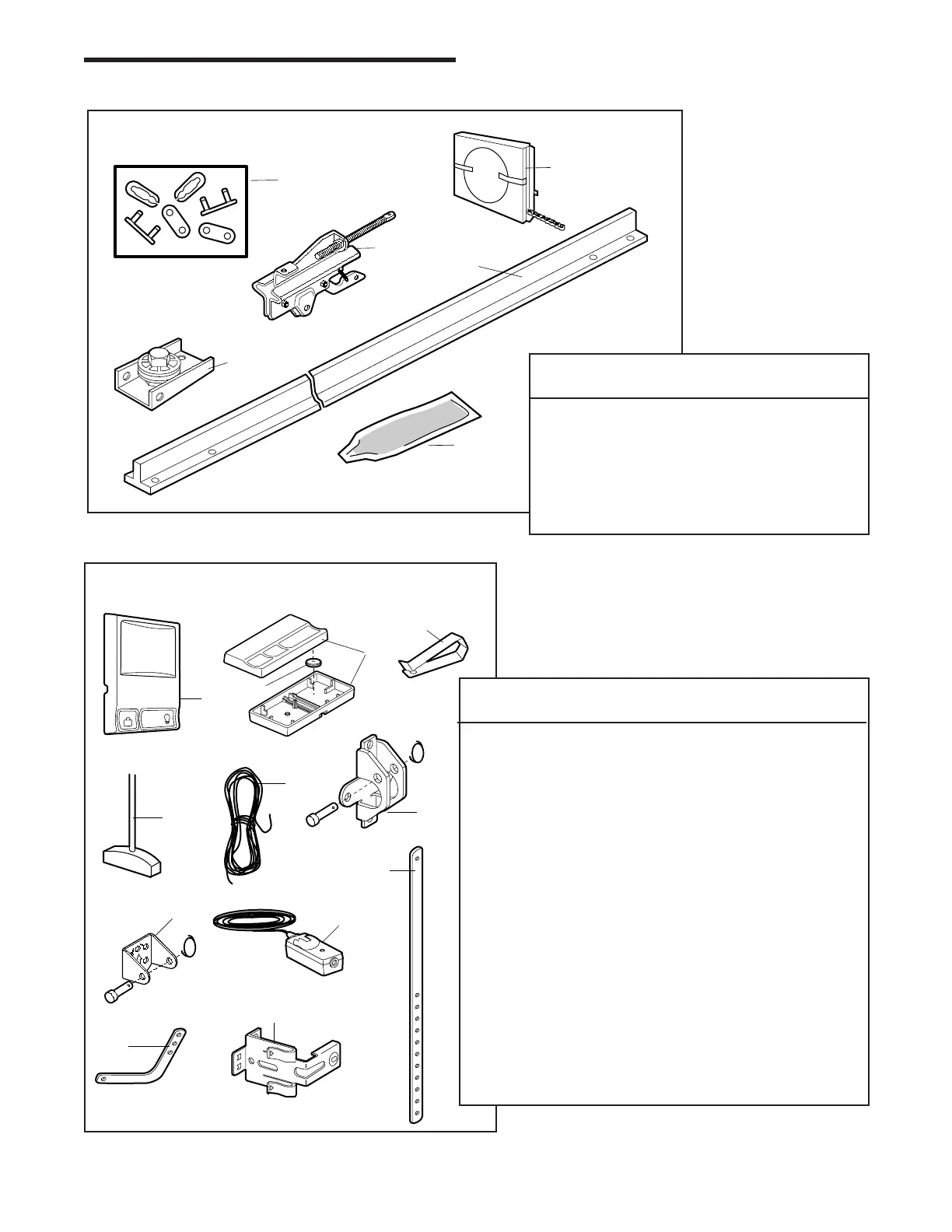

Rail Assembly Parts
KEY PART
NO. NO. DESCRIPTION
1 1A995 Master link kit
2 41A4813 Chain pulley bracket
3 41A3489 Complete trolley assembly
4 183B99 One-piece T-rail
5 41D3484 Full chain assembly
6 83A4 Rail grease
KEY PART
NO. NO. DESCRIPTION
1 41A45273-1 Multi-function door control panel
2 41A5056-3 3-channel remote control housing
(no circuit board)
3 10A20 3V2032 Lithium battery
4 29B137 Remote control visor clip
5 41A2828 Manual rope & handle assy.
6 217A238 2-Conductor bell wire, white & white/red
7 41A5047 Door bracket w clevis pin & fastener
8 41A4353 Header bracket w/clevis pin & fastener
9 41A5034 Safety sensor kit (receiving and
sending eyes) with 3' 2-conductor bell
wire
10 178B34 Straight door arm section
11 178B35 Curved door arm section
12 41A5266-1 Safety sensor brackets (2)
Not shown
41A2770-6 Installation hardware bag
(includes hardware listed on page 5).
114A2070 Owner's manual
