Chamberlain 1265 - Motor Unit Assembly Parts

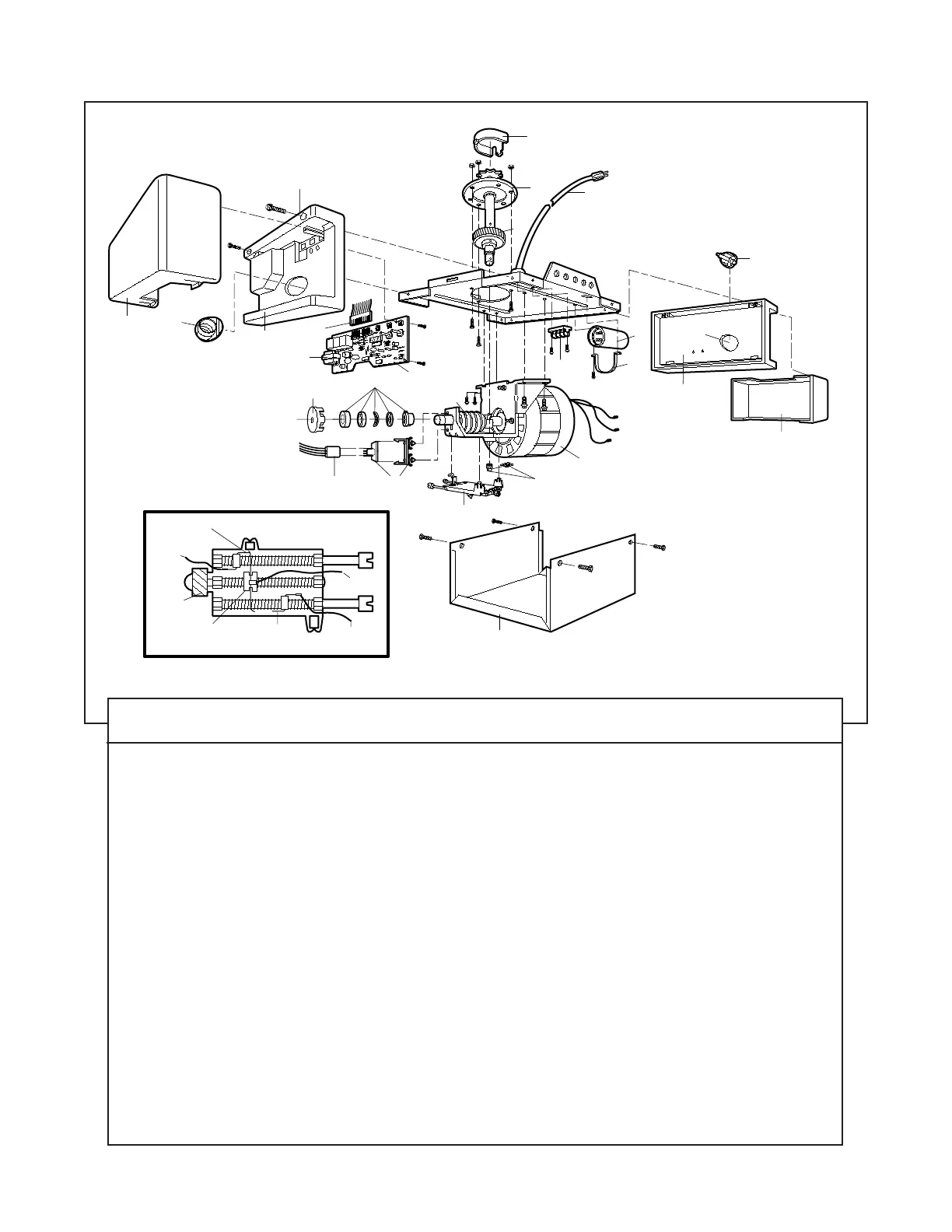

Motor Unit Assembly Parts
34
1
2
10
8
13
14
15
16
19
4
5
3
DN
UP
Brown
Wire
(Down)
Contact
LIMIT SWITCH ASSY.
Grey
Wire
Yellow
Wire
(Up)
Contact
Center Limit
Contact
Drive
Gear
7
9
20
16
12
6
7
18
6
11
17
3
KEY PART
NO. NO. DESCRIPTION
1 31D380 Sprocket cover
2 41C4220A Gear and sprocket assembly
Complete with: Spring washer,
Thrust washer, Retaining ring,
Bearing plate, Roll pins (2), Drive
gear and worm gear, Helical gear
w/retainer and grease
3 41A2817 Drive/worm gear kit w/grease,
Roll pins (2)
4 41B4245 Line cord
5 41A2916 End panels w/all labels
6 175B88 Light socket
7 108D34 Lens
8 30B363 Capacitor - 1/2 HP
9 12A373 Capacitor bracket
10 41A3150 Terminal block w/screws
11 41D3058 Universal replacement motor
&bracket assembly
Complete with: Motor, worm,
bracket, bearing assembly, RPM
sensor
KEY PART
NO. NO. DESCRIPTION
12 41A3583-11 Cover
13 41A2818 Limit switch drive & retainer
14 41D3452 Limit switch assembly
15 41C4398A RPM sensor assembly
16 41C4246 Wire harness assy. w/plug
17 41A2826 Shaft bearing kit
18 41A2822A Interrupter cup assembly
19 41A5021-E Receiver logic board assy.
Complete with: Logic board. End
panel w/all labels, Light socket
20 41A3673-1 End panel w/all labels
Not shown
41A2825 Opener assembly hardware kit
(includes screws not designated
by a number in illustration).
