Chamberlain 248739M - Parts, Accessories, and Service; Rail Assembly Parts; Installation Parts

37

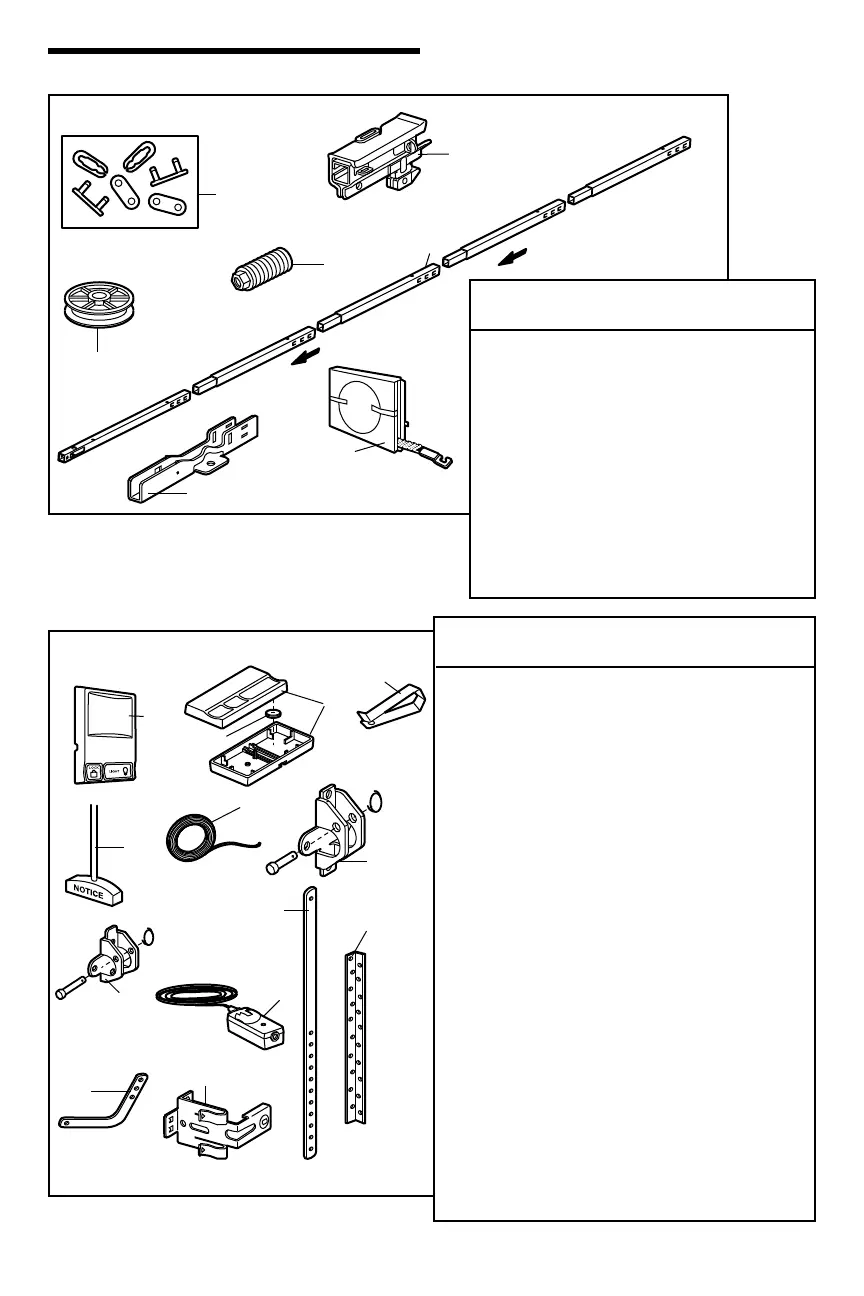

REPAIR PARTS
Rail Assembly Parts
KEY PART
NO. NO. DESCRIPTION
1 4A1008 Master link kit
2 41C5141-2 Complete trolley assembly
3 41A5665-2 Complete rail
4 41B4103 Spring trolley nut
5 144C54 Idler pulley
6 41A5250 Full belt assembly
7 41D598-1 “U” bracket
NOT SHOWN
183A163 Wear pads
8808CB 8 Foot (2.4 m) Rail extension kit
8810CB 10 Foot (3 m) Rail extension kit
KEY PART
NO. NO. DESCRIPTION
1 41C494-1 Multi-Function door control
2 953D 3-Button remote control
3 10A20 3V2032 Lithium battery
4 29B137 Remote control visor clip
5 41A2828 Emergency release rope and
handle assembly
6 41B4494-1 2-Conductor bell wire, white and
white/red
7 41A5047-1 Door bracket with clevis pin &
fastener
8 41A5047-3 Header bracket with clevis pin &
fastener
9 41A5034 Safety sensor kit (receiving and
sending eyes) with 3' (.9 m)
2-conductor bell wire
10 178B34 Straight door arm section
11 12B776 Hanging brackets
12 178B35 Curved door arm section
13 41A5266-1 Safety sensor brackets (2)
NOT SHOWN
41A5257-21 Installation hardware bag
(includes hardware listed
on page 7)
114A4282 Owner's manual
114A4282SP Owner's manual - Spanish
Installation Parts
1
2
3
4
5
7
6
1
2
4
3
6
7
11
10
5
8
9
13
12
