Chamberlain 41A7114-7 - Installation of New Travel Module; Align and Mount New Travel Module; Reconnect Wire Harness and Reassemble; Restore Power and Proceed

2

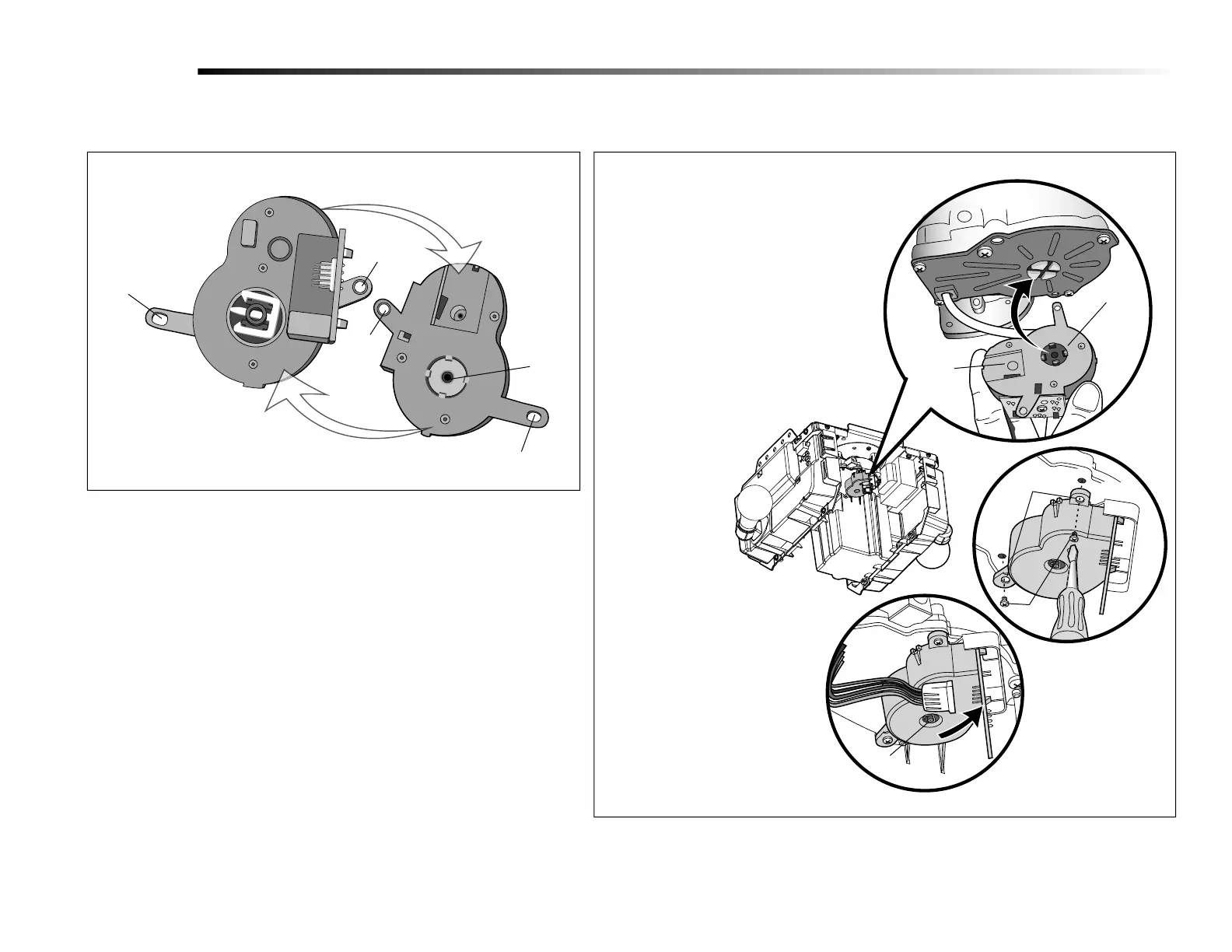

2.1 Install the new travel module by aligning
the spindle to the motor.
2.2 Ensure the 2 mounting holes (A) are
aligned with the motor. Fasten the travel
module to the motor with 2 screws (B).
IMPORTANT: When aligning the travel module
to the motor, you may need to twist the travel
module back and forth until the spindle is
seated and properly aligned.
2.3 Reconnect the wire harness to the travel
module.
2.4 Reassemble the garage door opener.
2.5 Reapply all electrical and battery power to
the garage door opener.
2.6 Proceed to Adjustments.
Installation
Install the new travel module
TRAVEL MODULE
2
Spindle
A
B
Spindle
BACK
FRONT
A
A
A
A
Mounting Holes (A)
FRONT
BACK
