Chamberlain 87504-267 - Page 55

55

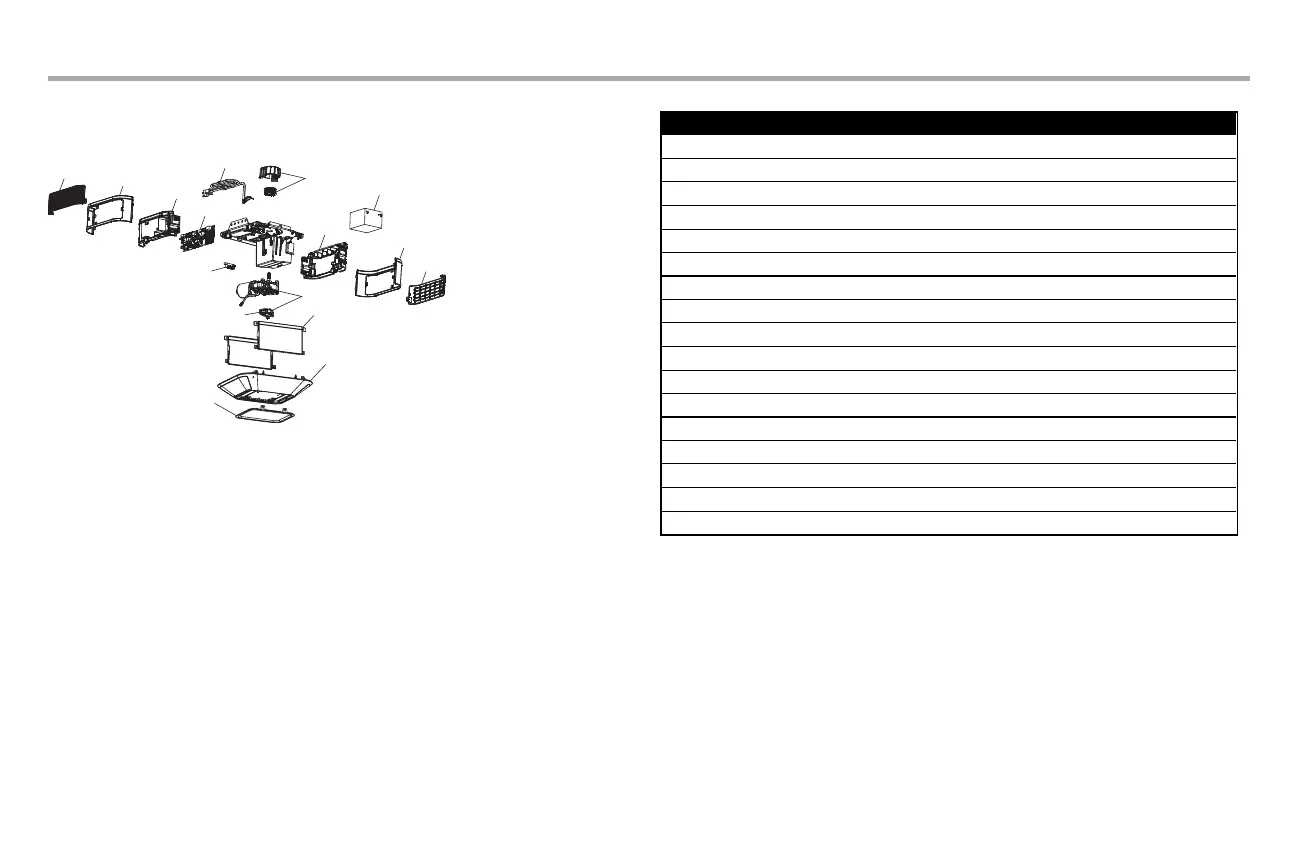

Garage Door Opener Parts Model
84602
1
8
2
12
9
13
14
7
7
6
6
10
11
3
5
4
Description Part Number
1 Sprocket and Sprocket Cover with Screws 041B5348-2
2 Non-logic board end panel 041-0185-000
3 Integrated LED Light Module 041-0189-000
4 Badge 041-0196-000
5 Main Enclosure Cover 041-0191-000
6 Control door panel 041-0192-000
7 End panel cover 041-0194-000
8 Motor with travel module 041-0236-000
9 Travel Module 041D8071-4
10 Logic board end panel 041-0183-000
11 Logic board 050DCTBFMC
12 Terminal block 041A3150
13 Backup battery 485LM
14 Line cord 041B4245-1
Not Shown
Wire harness 041-0180-000
Transformer 041A7635
Repair Parts
