Chamberlain 87504-267 - Page 57

57

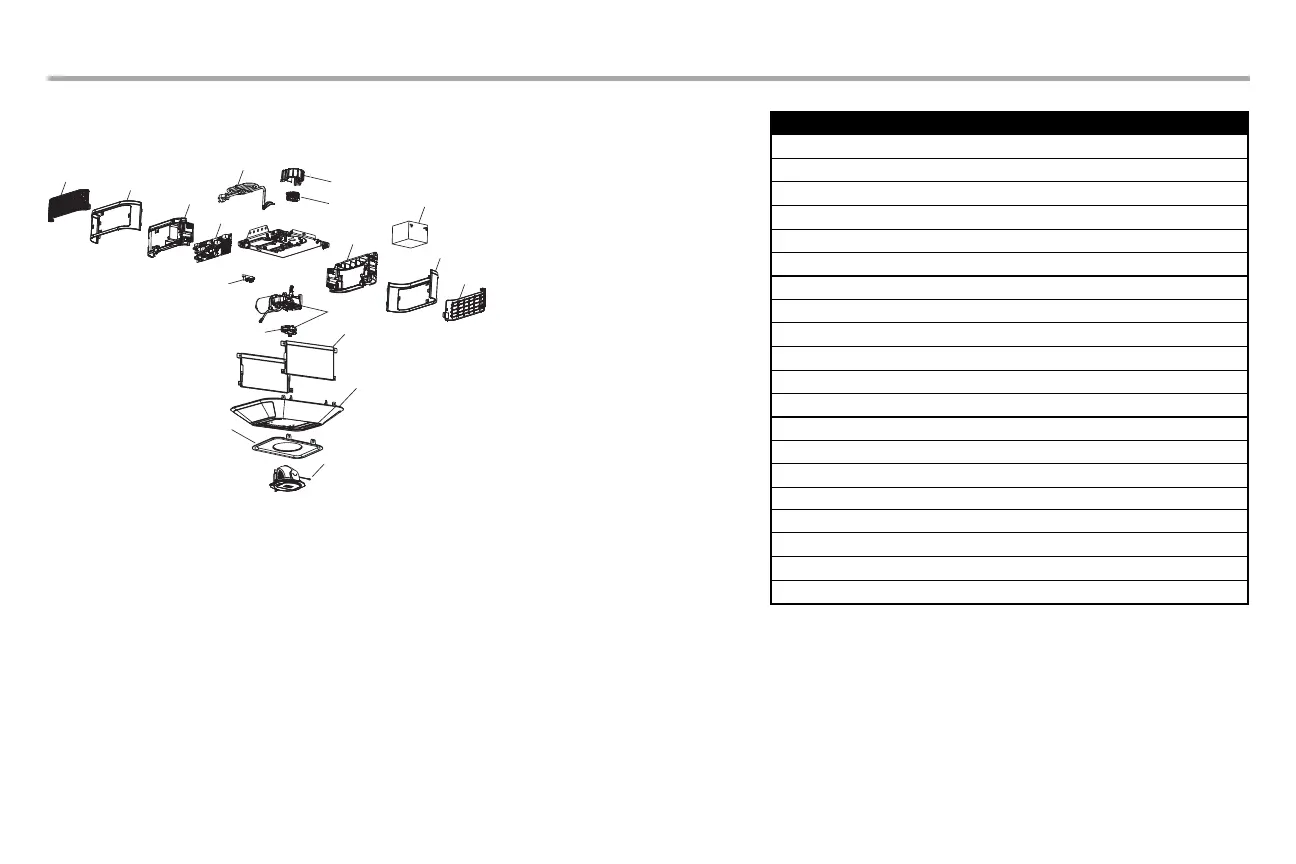

Garage Door Opener Parts 84504R
1
2
9
3
13
10
14
8
8
7
7
11
12
4
6
15
5
16
Description Part Number
1 Sprocket cover 041A4371
2 Gear and sprocket 041C0589-2
3 Non-Logic Board End Panel 041-0185-000
4 Dual Light Pod Kit 041-0188-000
5 Badge 041-0196-000
6 Main Enclosure cover 041-0191-000
7 Control door panel 041-0192-000
8 End panel cover 041-0194-000
9 Motor with travel module 041-0236-000
10 Travel module 041D8071-4
11 Logic Board End Panel Cover 041-0183-000
12 Logic board 050DCTBFMC
13 Terminal Block 041A3150
14 Line Cord 041B4245-1
15 Camera 041-0347-000
16 Backup battery 485LM
Not Shown
Wire harness 041-0180-000
Camera wire harness 041-0349-000
Transformer, Wi-Fi Non-Battery Backup 041D0277-2
Repair Parts
