29
Installation
STEP 14 Wire the Safety Reversing Sensors
If your garage has pre-installed wiring for the safety reversing sensors, see OPTION B - PRE-WIRED
INSTALLATION page 30.
OPTION A - INSTALLATION WITH NO PRE-WIRING

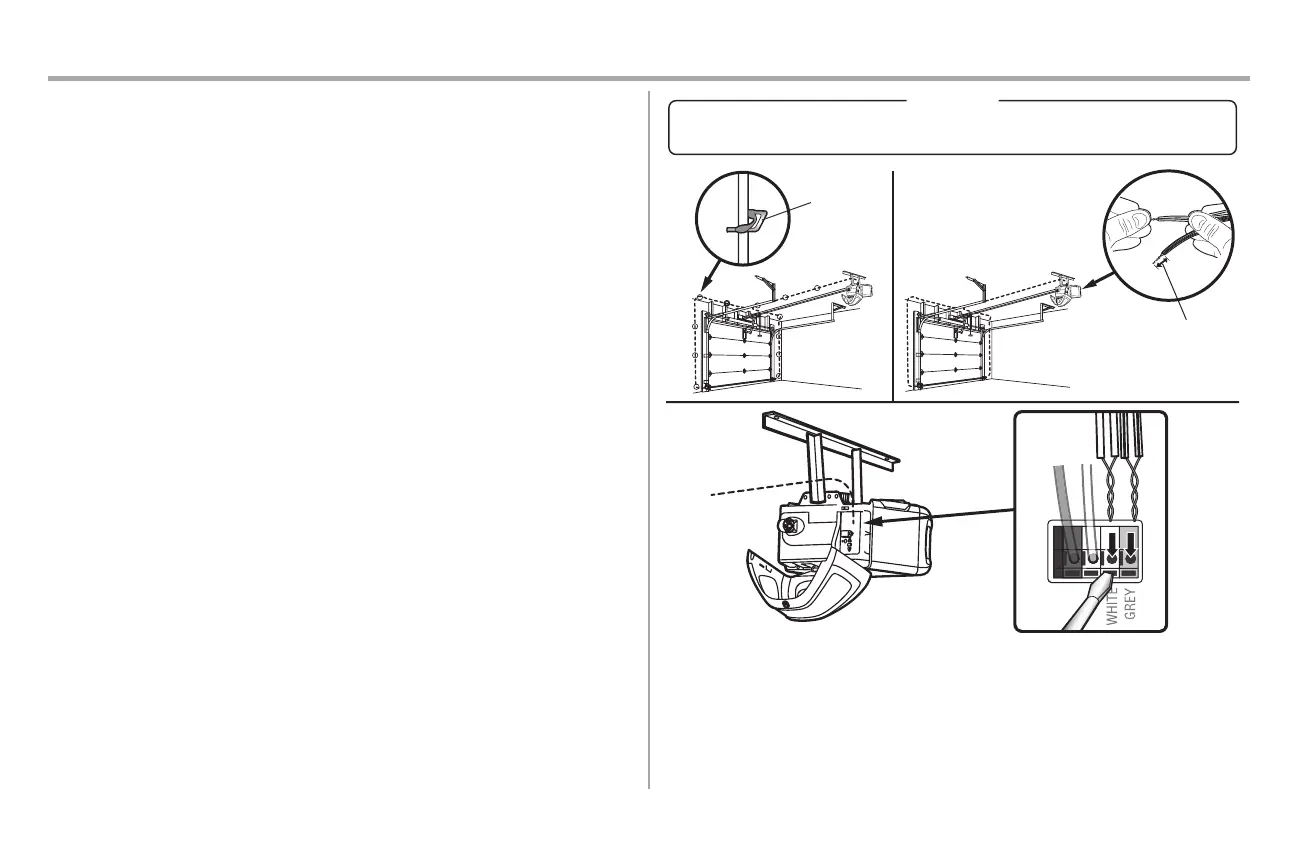

1. Run the wire from both sensors to the garage door opener. Attach with staples, but DO NOT puncture
the wire.
2. Separate the sensor wires and strip insulation from each end. Twist the two white wires together. Then
twist the two white/black wires together.
3. Using a screwdriver, push in the terminal tabs, and insert the white wires into the white terminal.
Insert the white/black wires into the grey terminal.
Staple
1
2
3
HARDWARE
Insulated Staple (Not Shown)
7/16" (11 mm)
To Next Page
