Installation

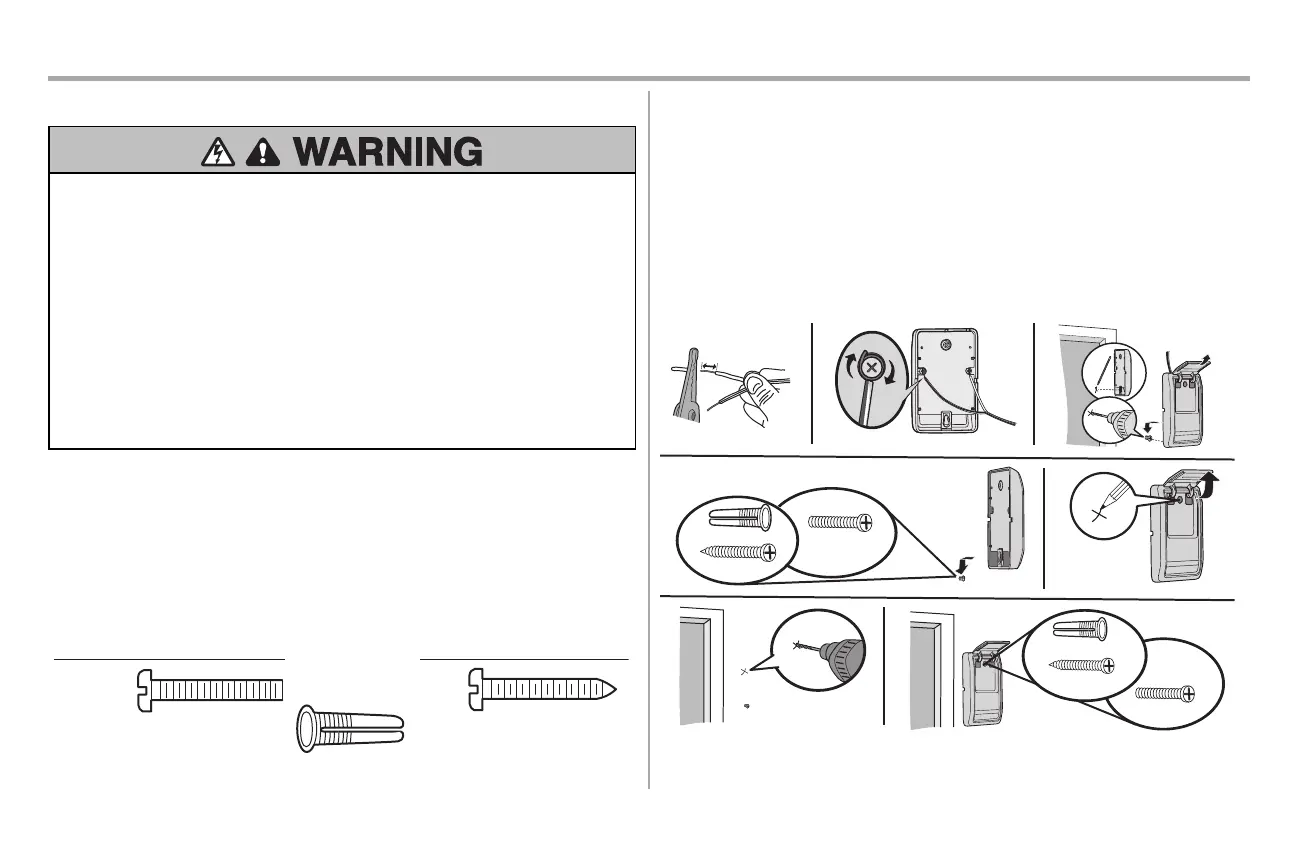

STEP 10 Install the door control
To preventpossible SERIOUS INJURY or DEATH from electrocution:
l Be sure power is NOT connected BEFORE installing door control.
l Connectdoor control ONLY to 12 VOLT low voltage wires.
To preventpossible SERIOUS INJURY or DEATH from a closing garage door:
l Install door control within sightof garage door, outofreach ofsmall children at a minimum
heightof 5feet(1.5m) above floors, landings,steps or any other adjacentwalking surface, and
away from ALL moving parts ofdoor.
l NEVER permitchildren to operate or playwith door control push buttons or remote control
transmitters.
l Activate door ONLY when itcan be seen clearly, is properly adjusted, and there are no
obstructionsto door travel.
l ALWAYS keep garage door in sight until completely closed. NEVERpermit anyone to cross
path of closing garage door.
INTRODUCTION
Compatible with MyQ
®
enabled accessories, see page 41. Your garage door opener iscompatible with
up to 2 MyQ
®
door controls.NOTE: Older Chamberlain door controls and third party products are not
compatible.
Install door control within sightof garage door, outofreach ofsmall children at a minimum height of
5feet (1.5m) above floors,landings, steps or any other adjacentwalking surface,and awayfromALL
moving parts ofdoor.For gang boxinstallations it isnotnecessary to drill holes or install the drywall
anchors.Use the existing holes in the gang box.
NOTE: Your productmay look different than the illustrations.
HARDWARE
Screw
6AB x 1" (2)
Drywall
Anchors (2)
Screw
6-32 x 1" (2)
1. Strip 7/16 inch (11 mm) of insulation from one end ofthe wire and separate the wires.
2. Connect one wire to each of the two screws on the back ofthe door control. The wires can be
connected to either screw. Ifyour garage ispre-wired for the door control choose anytwo
wires to connect,note which wires are used so the correct wires are connected to the garage
door opener in a later step.
3. Mark the location of the bottom mounting hole and drill a 5/32 inch hole.
4. Install the bottom screw,allowing 1/8 inch (3 mm) to protrude fromthe wall.
5. Position the bottom hole of the door control over the screw and slide down into place.
6. Lift the push bar up and markthe top hole.
7. Remove the door control fromthe wall and drill a 5/32 inch hole for the top screw.
8. Position the bottom hole of the door control over the screw and slide down into place.Attach
the top screw.
7/16" (11 mm)
Wall
1
2 3
DRYWALL
GANG BOX
6AB x 1"
6-32 x 1"
Drywall Anchor
4-5
6
6-32 x 1"
GANG BOX
8
DRYWALL
6AB x 1"
Drywall Anchor
7
