Installation

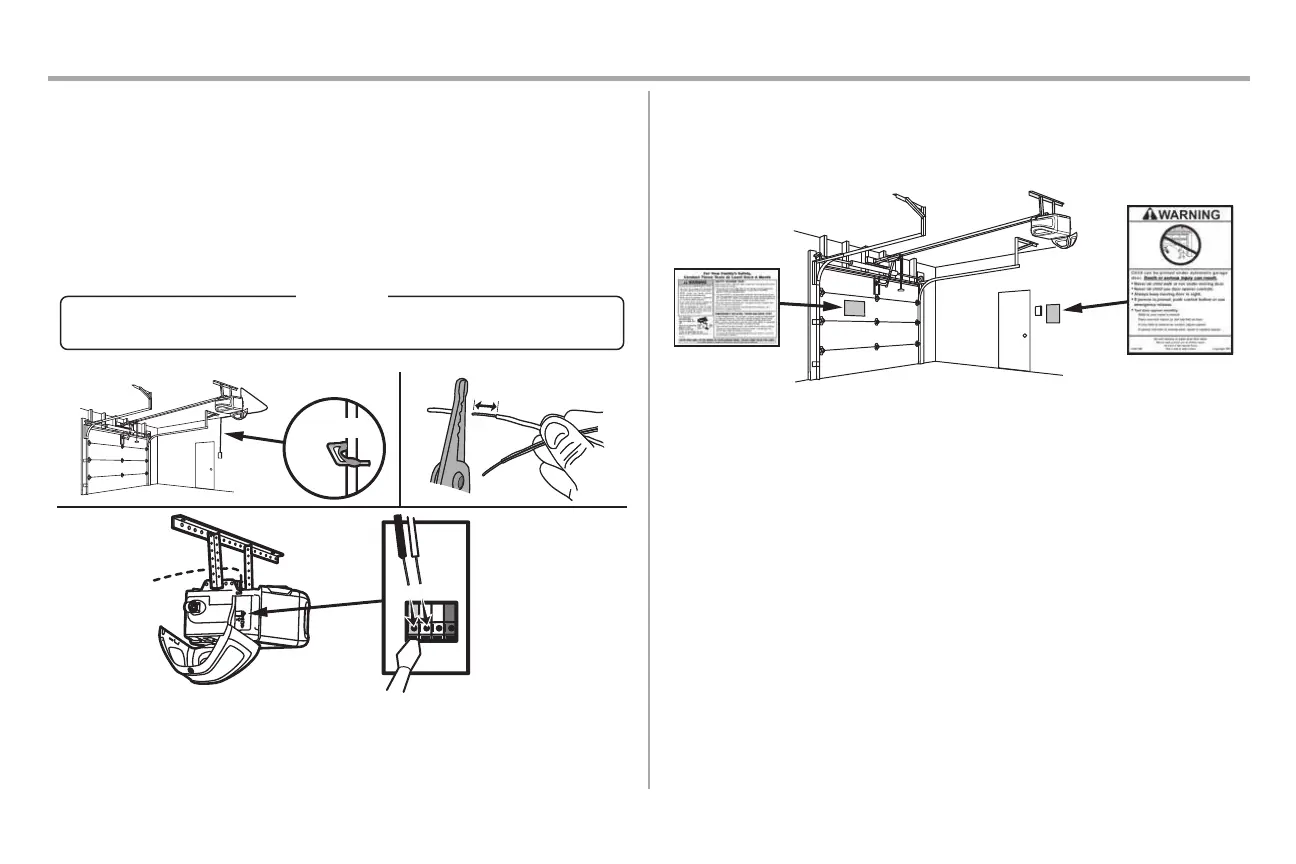

STEP 11 Wire the door control to the garage door opener
1. Run the white and red/white wire from the door control to the garage door opener. Attach the
wire to the wall and ceiling with the staple (not applicable for gang boxor pre-wired
installations). Do not pierce the wire with the staple asthismaycause a short or an open
circuit.
2. Strip 7/16 inch (11 mm) of insulation from the end ofthe wire near the garage door opener.
3. Connect the wire to the red and white terminals on the garage door opener. Ifyour garage is
pre-wired make sure you use the same wiresthatare connected to the door control.To insert
or release wires from the terminal, push in the tab with screwdriver tip.
RED
WHITE
WHITE
GREY
7/16" (11 mm)
2
3
1
HARDWARE
Insulated Staple (Not Shown)
Staple
STEP 12 Attach the warning labels
1. Attach the entrapmentwarning label on the wall near the door control with tacks or staples.
2. Attach the manual release/safety reverse test label in a visible location on the inside ofthe
garage door.
