12
Assembly

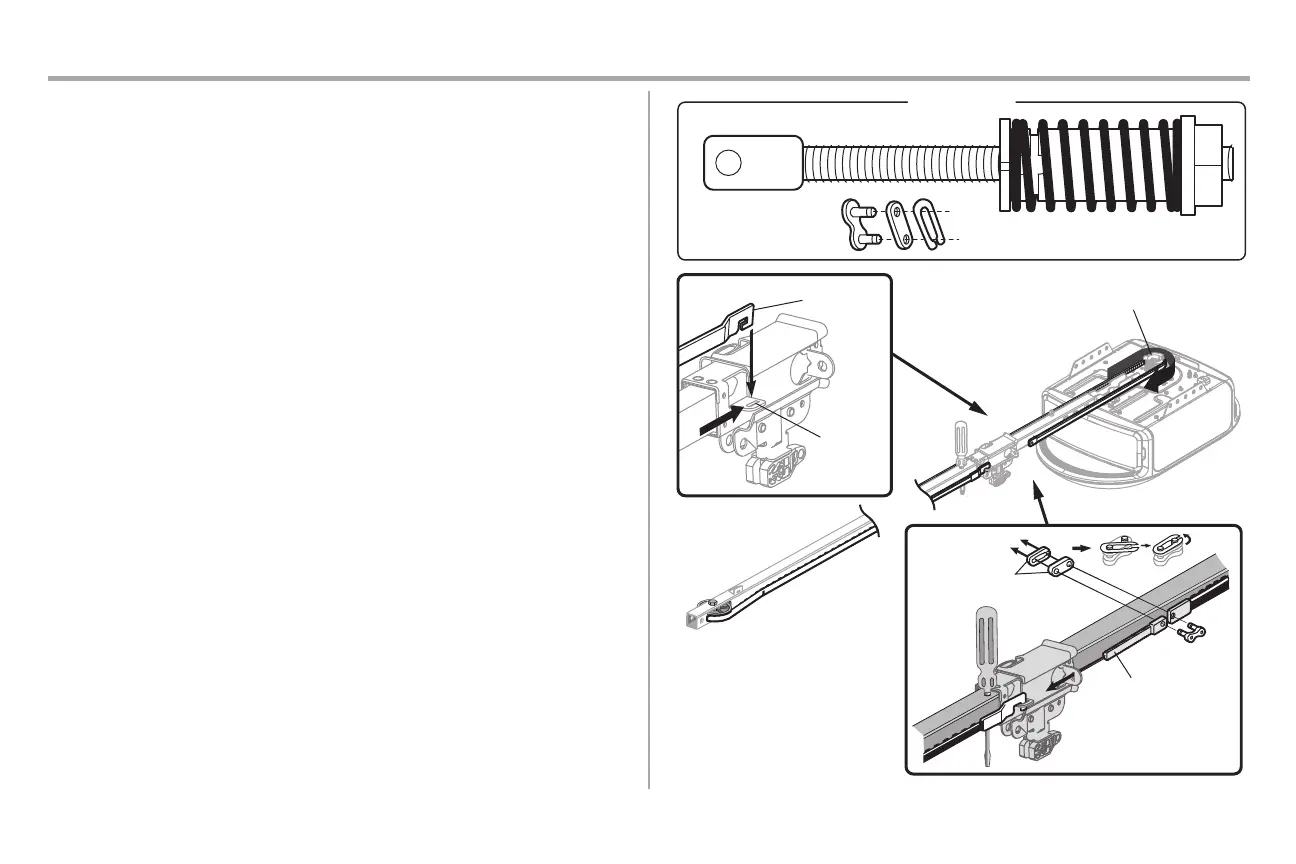

STEP 4 Install the Belt
1. Pull the belt around the idler pulley and toward the trolley. The ribbed side must contact the pulley.
2. Hook the trolley connector into the retaining slot on the trolley as shown (Figure1).
3. With the trolley against the screwdriver, dispense the remainder of the belt along the rail
lengthtoward the motor unit and around the sprocket (Figure2). The sprocket teeth must engage
the belt.
4. Check to make sure the belt is not twisted. Connect the trolley threaded shaft with the master link
(Figure3).
a. Push pins of master link bar through holes in end of belt and trolley threaded shaft.
b. Push master link cap over pins and past pin notches.
c. Slide the closed end of the clip-on spring over one of the pins. Push the open end of the clip-
on spring onto the other pin.
5. Remove the spring trolley nut from the threaded shaft.
6. Insert the trolley threaded shaft through the hole in the trolley.
HARDWARE
Master Link
Figure 3
Threaded Shaft with Spring Trolley Nut
Threaded Shaft
Master Link
Sprocket
Figure 2
Figure 1
Trolley
Connector
Retaining
Slot

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Chamberlain BILT B4643T and is the answer not in the manual?

Chamberlain BILT B4643T Specifications

General IconGeneral
Drive TypeBelt Drive
Horsepower1/2 HP
Battery BackupYes
Smartphone ControlYes
ConnectivityWi-Fi
Remote Controls Included2
Safety and Security FeaturesRolling Code
Speed7.0 in/sec
MotorDC
Warranty5 years on parts
LightingDual LED lighting
