Chamberlain BILT B4643T User Manual

25
Installation

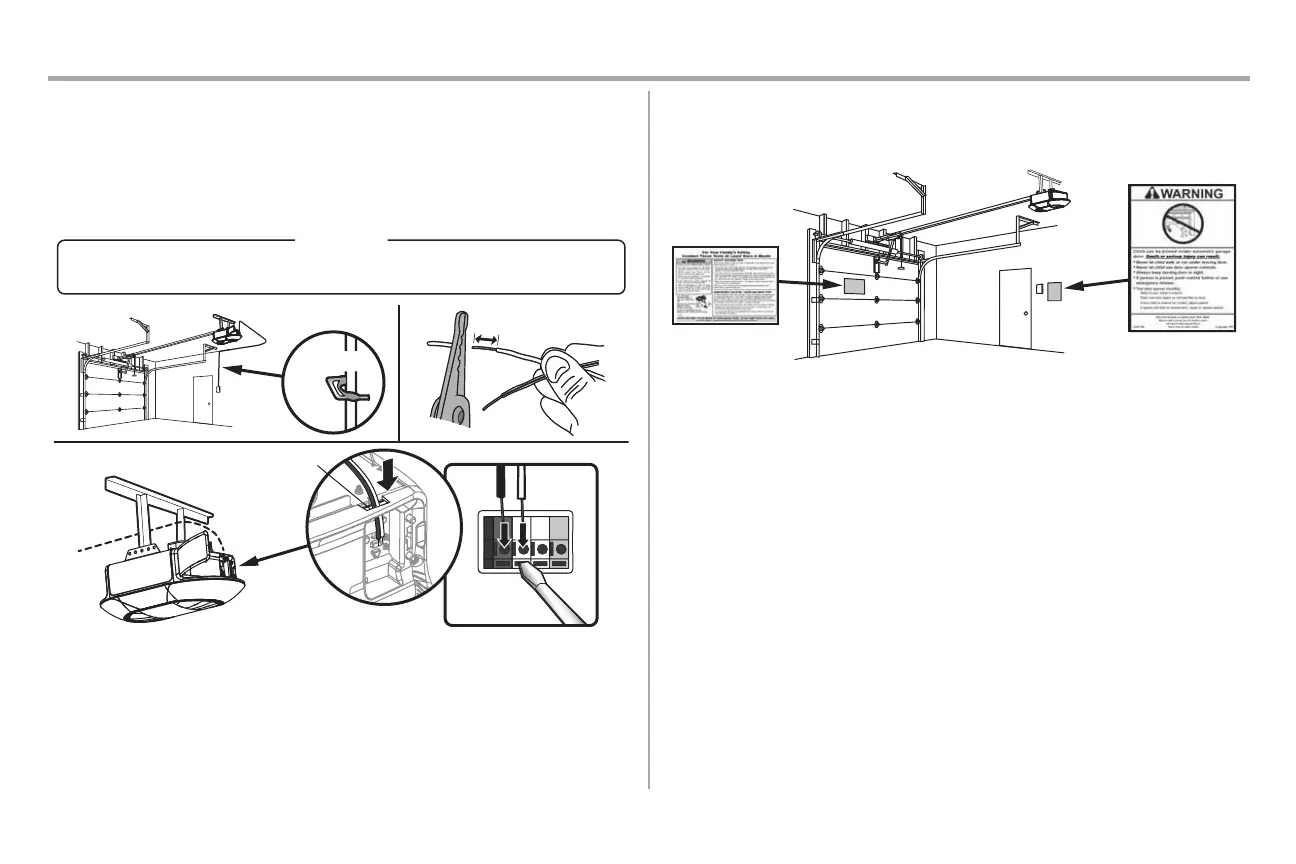

STEP 10 Wire the Door Control to the Garage Door Opener
1. Run the white and red/white wire from the door control to the garage door opener. Attach the wire
to the wall and ceiling with the staple (not applicable for gang box or pre-wired installations). Do not
pierce the wire with the staple as this may cause a short or an open circuit.
2. Strip 7/16" (11 mm) of insulation from the end of the wire near the garage door opener.
3. Connect the wire to the red and white terminals on the garage door opener. If your garage is pre-
wired make sure you use the same wires that are connected to the door control. To insert or release
wires from the terminal, push in the tab with screwdriver tip.
7/16" (11 mm)
2
3
1
HARDWARE
Insulated Staple (Not Shown)
Staple
RED
WHITE
Wire channel
STEP 11 Attach the Warning Labels
1. Attach the entrapment warning label on the wall near the door control with tacks or staples.
2. Attach the manual release/safety reverse test label in a visible location on the inside of the garage
door.

Chamberlain BILT B4643T Specifications

General

Drive Type	Belt Drive
Horsepower	1/2 HP
Battery Backup	Yes
Smartphone Control	Yes
Connectivity	Wi-Fi
Remote Controls Included	2
Safety and Security Features	Rolling Code
Speed	7.0 in/sec
Motor	DC
Warranty	5 years on parts
Lighting	Dual LED lighting
