Commercial DC
VEHICULAR SWING GATE OPERATOR
Model CSW24VDC

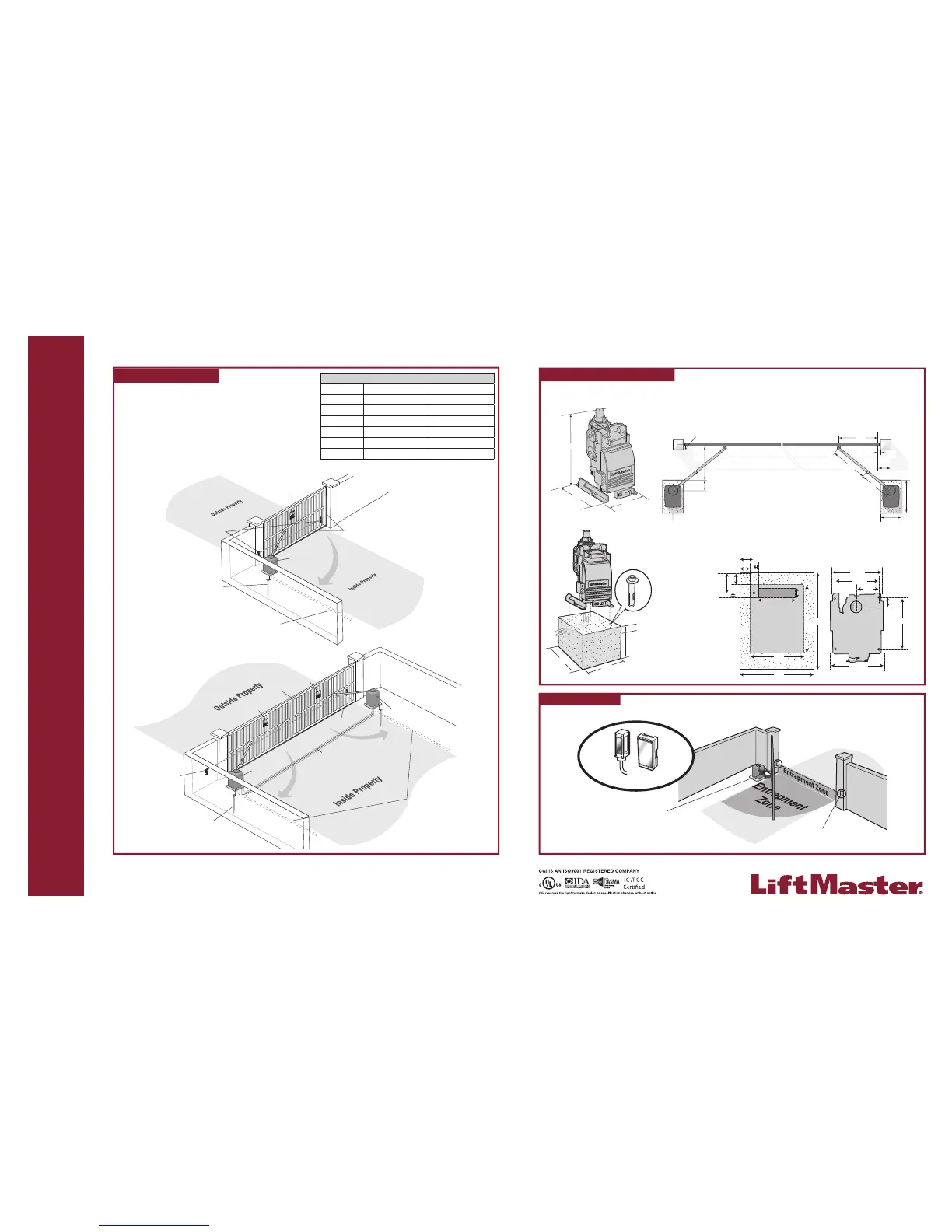

Installation Blueprint
TYPICAL INSTALLATION
OPERATOR POWER SOURCE
Wire Gauge 120 Vac 240 Vac
14 130 feet 260 feet
12 205 feet 410 feet
10 325 feet 650 feet
8 520 feet 1040 feet
6 825 feet 1650 feet
4 1312 feet 2624 feet
SAFETY LAYOUT
INSTALLATION DIMENSIONS
© 2014 LiftMaster All Rights Reserved
845 Larch Ave., Elmhurst, IL 60126
LiftMaster.com
01-37415B
DUAL GATE
Operator
Water Tight Conduit
(Not provided)
NOTE: Power and control wiring
MUST be run in separate conduits.
Earth Ground Rod
Check national and local
codes for proper depth
Warning Sign
Photoelectric
Sensors
Operator
Photoelectric
Sensors
Edge Sensor
Edge
Sensor
SINGLE GATE
NOTE: Use copper conductors ONLY.
Water Tight Conduit
(Not provided)
NOTE: Power and control wiring
MUST be run in separate conduits.
Warning Sign
Earth Ground Rod
Check national and local
codes for proper depth
OPERATOR DIMENSIONS DETERMINE LOCATION FOR CONCRETE PAD AND OPERATOR
CONCRETE PAD AND OPERATOR ATTACHMENT
4 Concrete
Anchors
1/2" x 3 1/2"
Below the frost line.
Check all national and
local codes.
6" Above Ground
NOTE: One or more non-contact sensors shall be located where the risk
of entrapment or obstruction exists at either the opening or closing
direction. Care shall be exercised to reduce the risk of nuisance tripping,
such as when a vehicle, trips the sensor while the gate is still moving.
Monitored Photoelectric Sensors
Sensors for Close Cycle
(Inside Property)
(Outside Property)
NOTE: Entrapment protection is
required for the area between the
open gate and the operator.
Warning Sign
Operator
Edge
Sensor
27.66"
18.77"
14.8"
28"
24"
Outside Property
Inside Property
29.5"
35.5"
11"
2"
46"
25"
10"
Short Arm
Long Arm
Hinge Center
Concrete Pad
NOTE: There should only be a maximum of 4" (10.2 cm)
from the center of the hinge to the edge of the post or
column. If the distance is greater than 4" (10.2 cm)
entrapment protection for this area is required.
4" (10.2 cm) maximum
STANDARD INSTALLATION
CONDUIT LOCATION MOUNTING FOOTPRINT
5.5"
4.5"
1"
6.5"
4"
1.5"
10"
3"
28"
20"
15"
24"
13.6"
12.2"
6.1"
2.49"
14"
14.82"
(cover mounting distance)
(Conduit)
(Pad)
28"
24"
NOTE: Wired connection in
a dual gate setup is optional.
Operators can be setup for
wireless dual gate communication.
