T
he force, as measured on the closing edge of the door,
should not exceed 400N (40kg). If the closing force is
measured to more than 400N, The Protector System
TM
(IR Beams) must be installed (refer section 16).

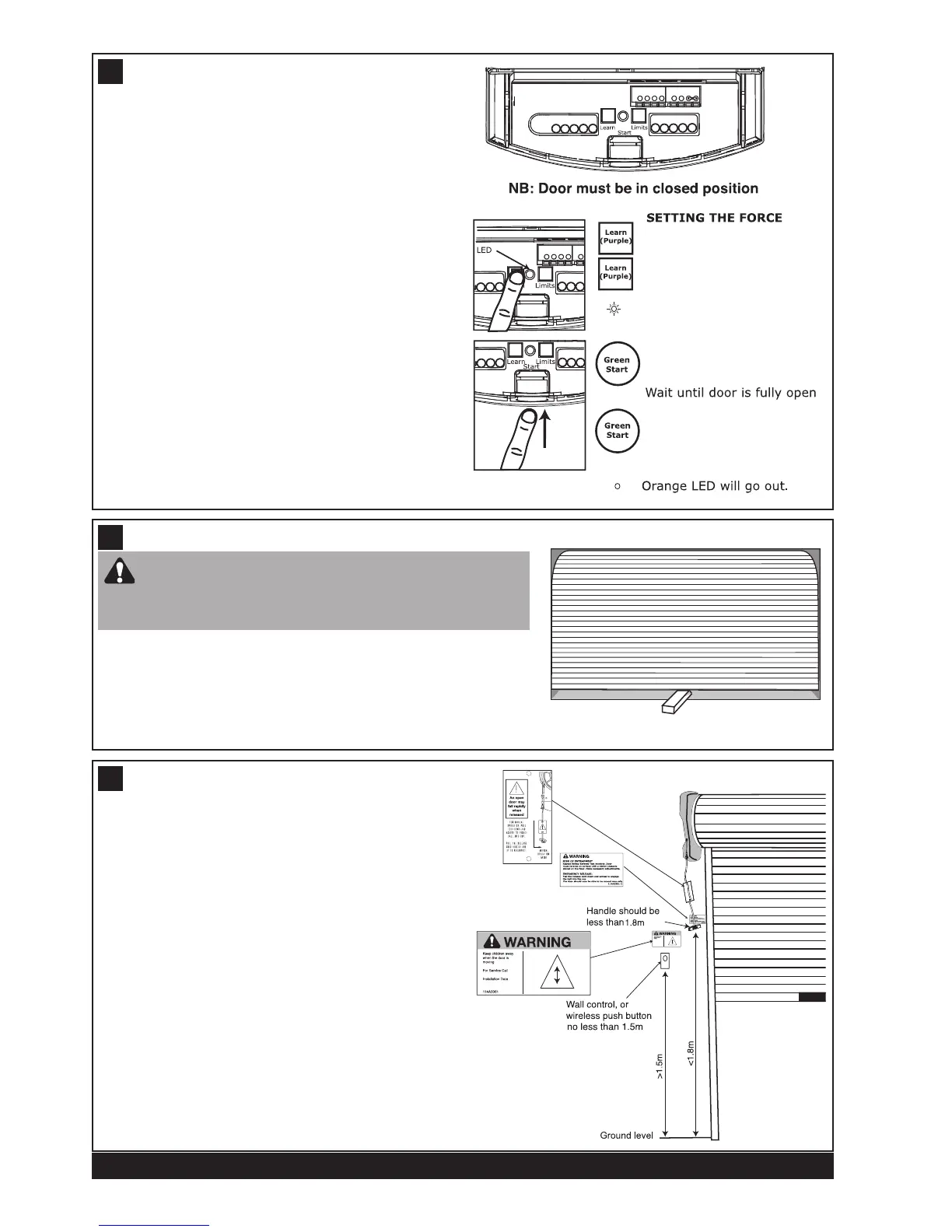

The force setting regulates the amount of power
required to open and close the door.
• Door should be closed before proceeding.
• Press the purple button twice to enter the opener into
force adjustment mode. The indicator LED will flash
quickly.
• Press the green start button on the bottom of the
opener. The door will travel to the up limit. Press the
green start button again, the door will travel to the
down limit. The indicator LED will stop flashing when
the force has been learned.
• The door must travel through a complete cycle, up and
down, in order for the force to be set properly. If the
opener cannot open and close your door fully,
examine your door to ensure that it is balanced
properly and is not sticking or binding (refer section 4).
Press the purple learn button
twice
F
AST flashing orange LED
Press the green start
button to open the door.
P
ress the green start
button to close the door.
13
Operate the door in the down direction. The door must reverse
upon contact with the obstacle. If the door stops on the obstacle,
remove obstacle and repeat limit and force setting (sections 12 &
13). Repeat testing procedure of the safety reverse system.
14
8
This test should be repeated monthly to ensure the safe operation of your opener.
Once you have completed your installation and
successfully carried out the safety reverse system
test (outlined above), install the warning labels
provided with your opener as shown.
The risk of entrapment label must be installed
adjacent to the release handle at a height of less than
1.8m from the floor.
The WARNING label must be installed in a prominent
place near any fixed control.
Any fixed wall control or wireless door control must be
mounted at a height of no less than 1.5m out of the
reach of children.
Ensure the instruction card concerning the manual
release of the door is attached to the rope as detailed
in section 10.
Read the safety instructions (page 1) for further
details concerning safety.
15
FIXING WARNING LABELS
The safety reverse system test is important. The garage
door must reverse on contact with a 40mm obstacle laid
flat on the floor. Failure to properly adjust the opener may
result in serious personal injury from a closing garage door.
STANDARD INSTALLATION COMPLETE
SETTING THE FORCE
TESTING THE SAFETY REVERSE SYSTEM
