7
Assembly

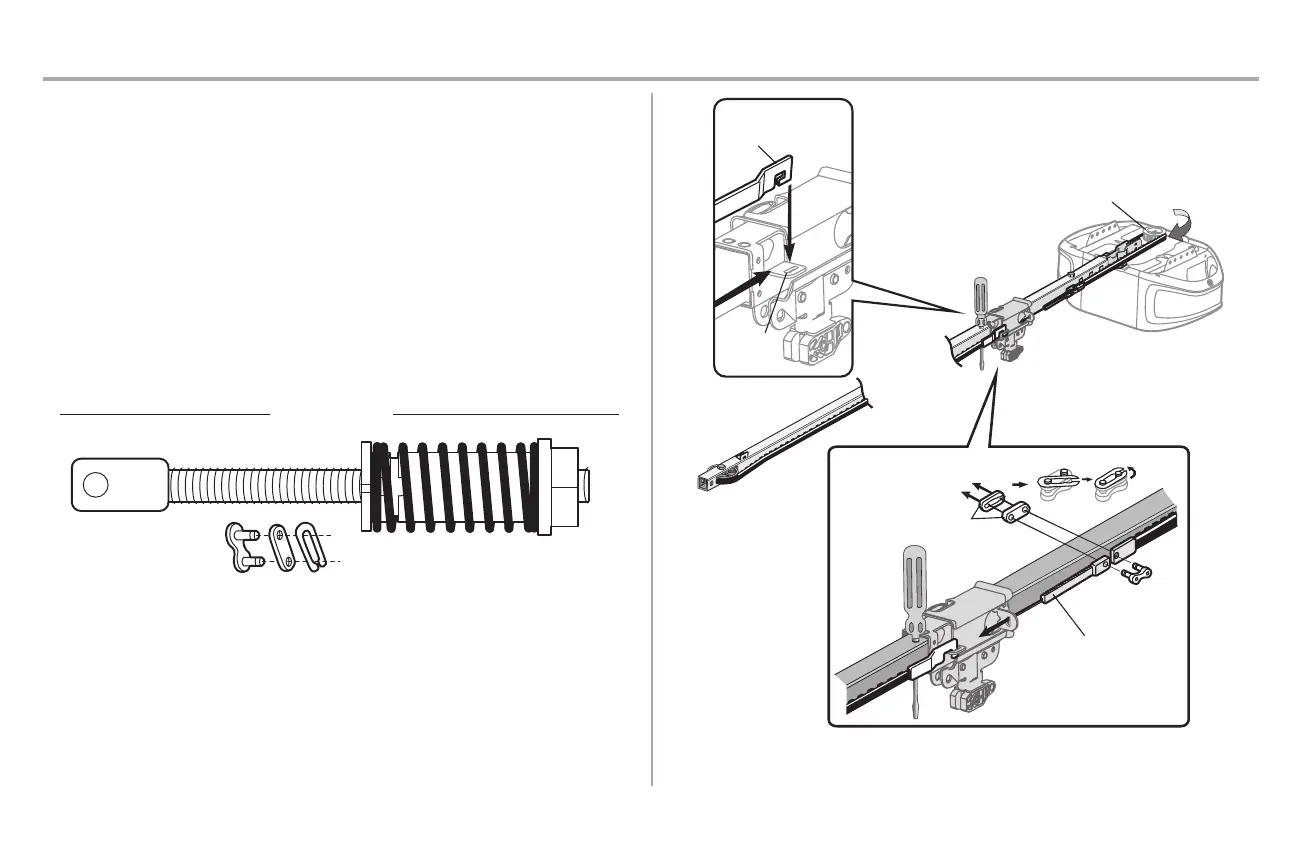

STEP 4 Install the belt
1. Pull the beltaround the idler pulley and toward the trolley.The ribbed side must contact the
pulley.
2. Hook the trolley connector into the retaining sloton the trolley as shown (Figure 1).
3. With the trolley againstthe screwdriver,dispense the remainder of the belt along the rail
lengthtoward the motor unitand around the sprocket (Figure 2). The sprocket teeth must engage
the belt.
4. Checkto make sure the belt is not twisted.Connectthe trolley threaded shaft with the master link
(Figure 3).
l Push pins ofmaster link bar through holes in end ofbelt and trolley threaded shaft.
l Push master link cap over pins and pastpin notches.
l Slide the closed end of the clip-on spring over one of the pins.Push the open end of the
clip-on spring onto the other pin.
5. Remove the spring trolley nut from the threaded shaft.
6. Insert the trolley threaded shaftthrough the hole in the trolley.
HARDWARE
Master
Link
Threaded Shaft with Spring Trolley Nut
Sprocket
Figure 3
Threaded Shaft
Master Link
Figure 2
Trolley Connector
Figure 1
Retaining
Slot
