Install door control within sight of door, out of reach of small children at a
minimum height of 5 feet (1.5 m) above floors, landings, steps or any other
adjacent walking surface, and away from ALL moving parts of door.
1. Remove the control station cover.
2. Fasten the control station to the wall at least 5' (1.5 m) above floors, landings,
steps or any other adjacent walking surface. The installation surface must be
smooth and flat.
3. Select appropriate knockout and run the wires to the operator.
4. Connect wires to the control station and replace the control station cover.
5. Fasten the warning placards to the wall next to the single button control station.
NOTE: DO NOT connect the power and operate the door operator at this time. The door
will travel to the full open position but will not return to the close position until the
safety reversing sensors are connected and properly aligned. See page 12.

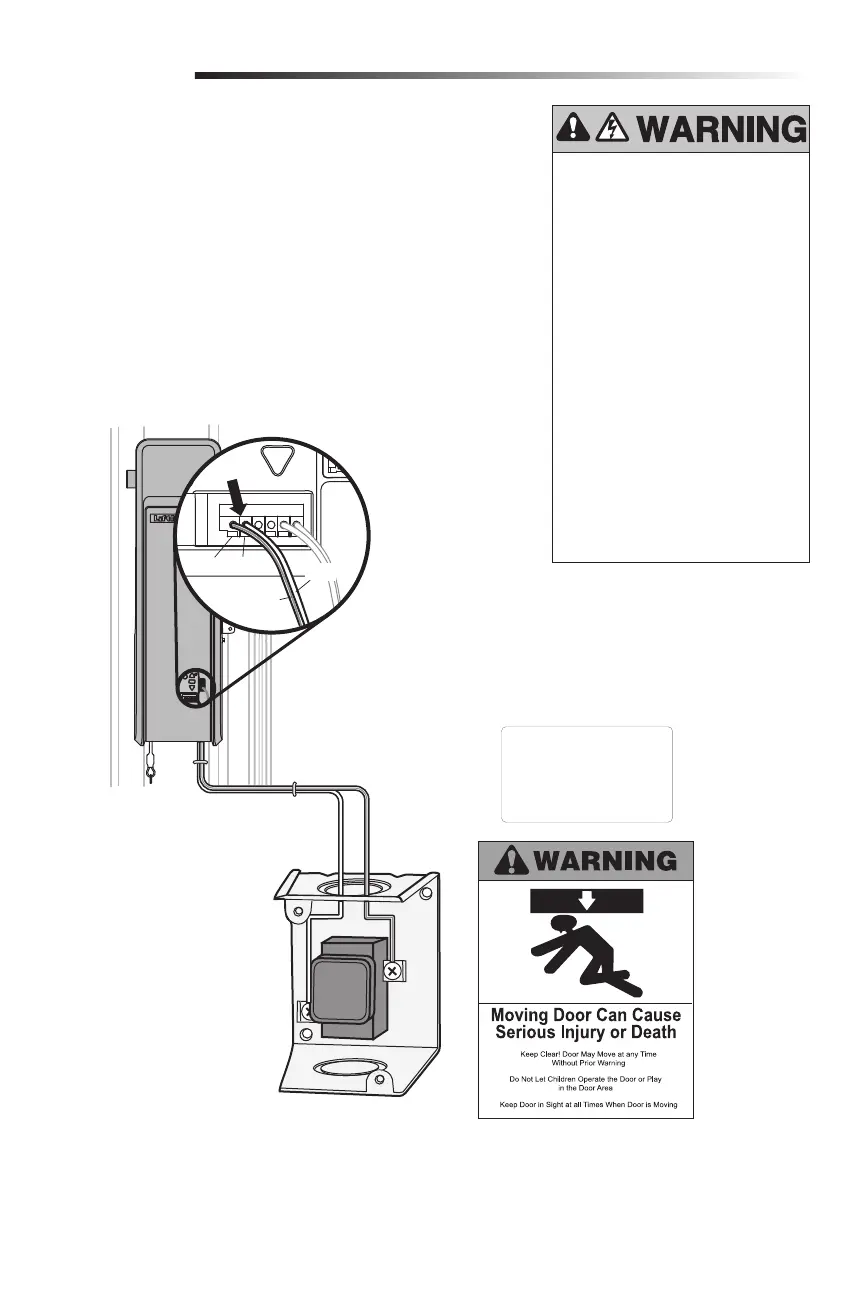

Install the Single Button Control Station
5
Installation
To prevent possible SERIOUS INJURY or
DEATH from electrocution:
• Be sure power is NOT connected
BEFORE installing door control.
• Connect ONLY to 24VOLT low voltage
wires.
To prevent possible SERIOUS INJURY or
DEATH from a closing door:
• Install door control within sight of door,
out of reach of children at a minimum
height of 5 feet (1.5 m) above floors,
landings, steps or any other adjacent
walking surface, and away from ALL
moving parts of door.
• NEVER permit children to operate or
play with door control push buttons or
remote controls.
• Activate door ONLY when it can be seen
clearly, is properly adjusted and there are
no obstructions to door travel.
• ALWAYS keep door in sight until
completely closed. NEVER permit anyone
to cross path of closing door.
Red White
WHT/RED
WHT
To insert or
release wire,
push in tab with
screwdriver tip
Single Button
Control Station
132A2112-2
132LA2112-20-A
Shown at 100% (4.25" x 2.375")
ECN: 07-0326
14-May-2007
DO NOT EXCEED 10 DOOR OPERATIONS
PER HOUR.
FASTEN LABEL ADJACENT TO DOOR.
NE PAS FAIRE FONCTIONNER LA PORTE
PLUS DE 10 FOIS PAR HEURE.
FIXER L’ÉTIQUETTE PRÈS DE LA PORTE.
NO OPERE LA PUERTA MÁS DE 10
VECES POR HORA.
SUJETE LA ETIQUETA JUNTO A LA
PUERTA.
40-35246-10-A
Shown at 100%
ECN: 09-2104
4-May-2009
