REPAIR PARTS

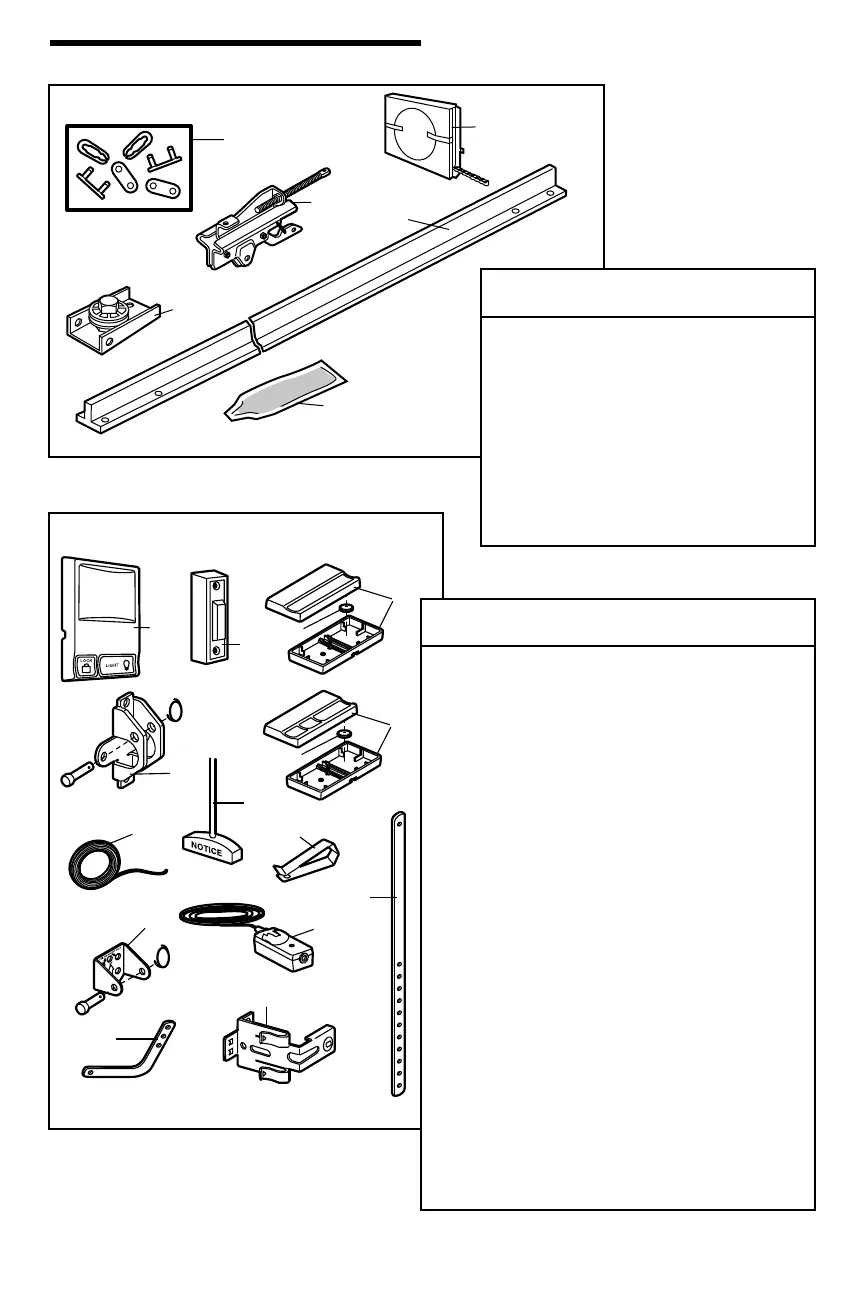

Rail Assembly Parts
KEY PART
NO. NO. DESCRIPTION
1 4A1008 Master link kit
2 41A4813 Chain pulley bracket
3 41A3489 Complete trolley assembly
4 1707LM One-piece rail - 7 feet (2.1 m)
5 41D3484 Full chain assembly
6 83A11-2 Rail grease
NOT SHOWN
1708LM One-piece rail - 8 feet (2.4 m)
1710LM One-piece rail - 10 feet (3 m)
Installation Parts
KEY PART
NO. NO. DESCRIPTION
1 41A5273-13 Multi-function door control panel
2 41A4166 Lighted door control button
3 10A20 3V2032 Lithium battery
4 371AC Single-Button remote control
5 373AC 3-Button remote control
6 29B137 Remote control visor clip
7 41A2828 Manual rope & handle assembly
8 41A5047 Door bracket with clevis pin
& fastener
9 41B4494-1 2-Conductor bell wire, white
& white/red
10 41A4353 Header bracket with clevis pin
& fastener
11 178B35 Curved door arm section
12 41A5266-1 Safety reversing sensor brackets (2)
13 41A5034 Safety reversing sensor kit (receiving
and sending eyes) with 3 feet (.9 m)
2-conductor bell wire
14 178B34 Straight door arm section
NOT SHOWN
41A2770-6 Installation hardware bag
(includes hardware listed on page 5)
114A4279 Owner's manual
114A4279SP Owner’s manual - Spanish
1
3
6
1
2
3
3
7
6
8
9
10
12
11
13
14
4
5
2
4
5
