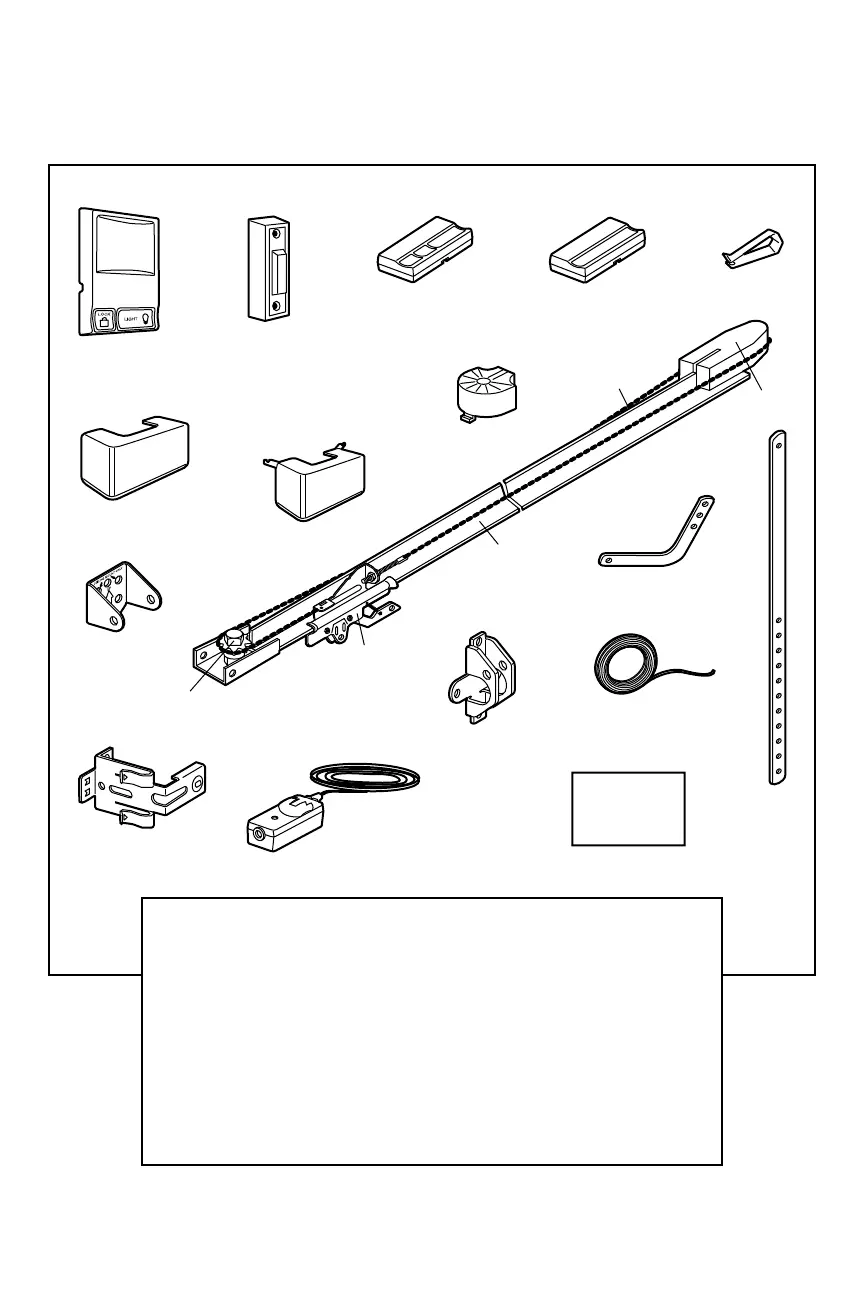

Carton Inventory
Your garage door opener is packaged in two cartons
which contain the motor unit and all parts illustrated
below. Accessories will depend on the model purchased.
If anything is missing, carefully check the packing
material. Parts may be stuck in the foam. Hardware for
installation is also listed below.
INSTALLATION HARDWARE
Hex Bolt 5/16"-18x7/8" (4)
Lag Screw 5/16"-9x1-5/8" (2)
Clevis Pin 5/16"x2-3/4" (1)
Clevis Pin 5/16"x1-1/4" (1)
Clevis Pin 5/16"x1" (1)
Nut 5/16"-18 (4)
Lock Washer 5/16" (4)
Screw 6ABx1-1/4" (2)
Screw 6-32x1" (2)
Self-Threading Screw 1/4"-14x5/8" (2)
Insulated Staples
Ring Fastener (3)
Drywall Anchors (2)
Rope
Handle
Carriage Bolt 1/4"-20x1/2" (2)
Wing Nut 1/4"-20 (2)
(Model M3100M)
(Model M3100M)
(Model M3100M)(Model M350M)
(Model M350M)
(Model M350M)
Remote Control
Visor Clip
SECURITY✚
®
Single-Button
Remote Control
SECURITY✚
®
3-Button
Remote Control
Lighted Door
Control Button with
6ABx1-1/2" Screws
Multi-Function
Door Control Panel
Light Lens (2)
Light Lens (1)
Sprocket Cover
Chain
Styrofoam
Curved Door
Arm Section
Door Bracket
2-Conductor Bell Wire
White & White/Red
Straight Door
Arm Section
Safety Reversing
Sensor Bracket (2)
Safety Labels
and
Literature
The Protector System
®
(2) Safety Reversing Sensors
(1 Sending Eye and 1 Receiving Eye)
with 2-Conductor White & White/Black
Bell Wire attached
One-Piece
T-rail
Trolley
Chain
Pulley
Bracket
Header Bracket
