18
Installation

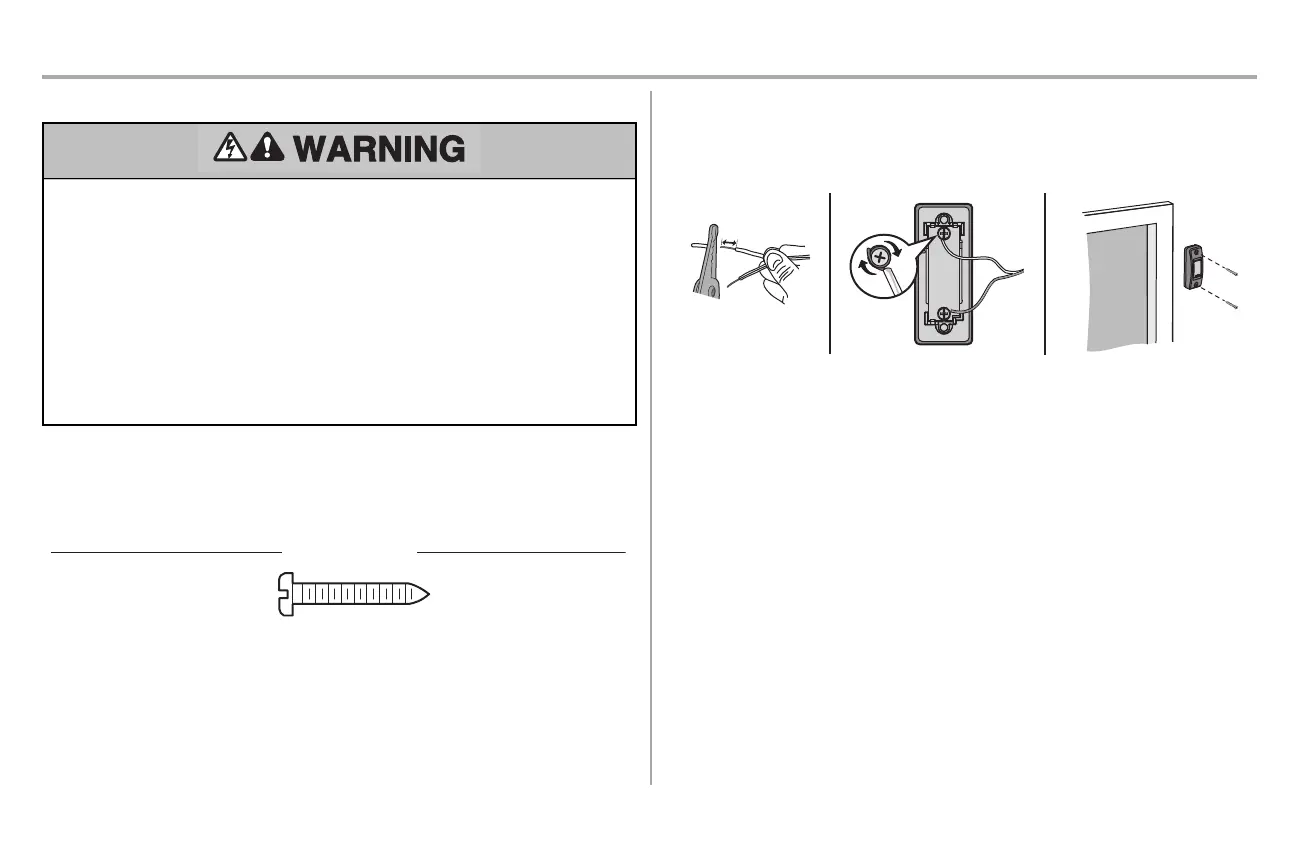

STEP10 Install the door control
To prevent possible SERIOUS INJURY or DEATHfrom electrocution:
l Be sure power isNOT connected BEFORE installing door control.
l ConnectONLY to 12 VOLT low voltage wires.
To prevent possible SERIOUS INJURY or DEATHfrom a closing garage door:
l Install door control within sight ofgarage door, outof reach of children at a minimum height of 5
feet (1.5 m), and away from ALL moving parts ofdoor.
l NEVER permitchildren to operate or play with door control push buttons or remote control
transmitters.
l Activate door ONLY when it can be seen clearly,is properly adjusted,and there are no
obstructions to door travel.
l ALWAYS keep garage door in sight until completelyclosed. NEVER permitanyone to crosspath
of closing garage door.
INTRODUCTION
Install the door control within sight of the door at a minimum height of5 feet (1.5 m) where small children
cannotreach,and away from the moving parts ofthe door.
NOTE: Your productmay look different than the illustrations.
1. Strip 1/4" (6 mm) of insulation from one end of the wire and separate the wires.
2. Connectone wire to each ofthe two screws on the backofthe door control. The wires can be
connected to either screw.
3. Mount the door control with the hardware provided.
1/4" (6 mm)
1
2 3
