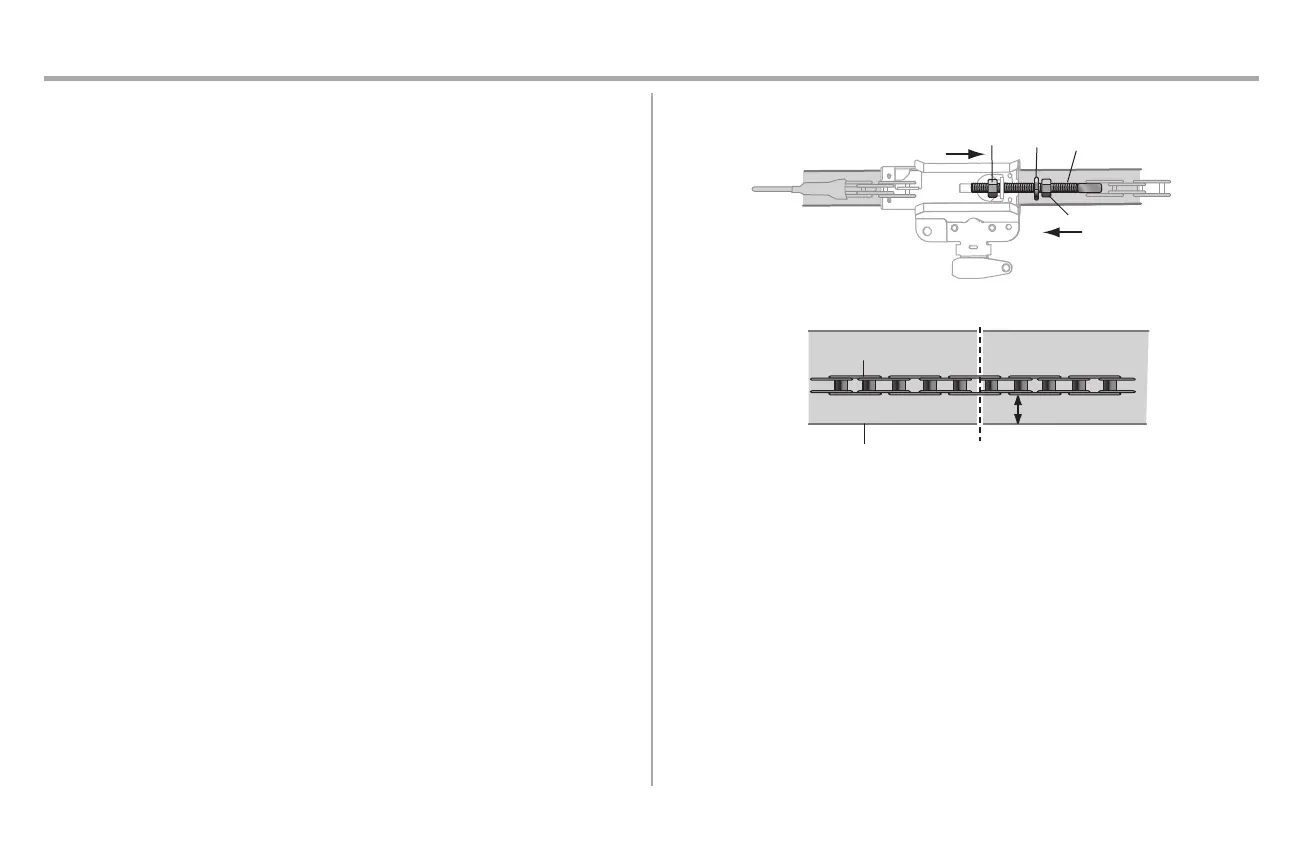

STEP 5 Tighten the chain
1. Spin the inner nut and lock washer down the trolley threaded shaft, away from the trolley.
2. To tighten the chain, turn the outer nut in the direction shown.
3. When the chain is approximately 1/4" (6 mm) above the base of the rail at it's midpoint, re-tighten
the inner nut to secure the adjustment.
Sprocket noise can result if the chain is too loose.
When installation is complete, you may notice some chain droop with the door closed. This is normal. If
the chain returns to the position shown when the door is open, do not re-adjust the chain.
NOTES:During future maintenance, ALWAYS pull the emergency release handle to disconnect the
trolley before adjusting the chain.
You may notice loosening of the chain after Adjustment Step 3 (Test the Safety Reversal System). Check
for proper tension and readjust chain if necessary. Then repeat Adjustment Step 3.
You have now finished assembling your garage door opener. Please read the following warnings
before proceeding to the installation section.
