Chamberlain Power Drive Security+ HD400DM - Installation Parts; Rail Assembly Parts; Repair Parts

37

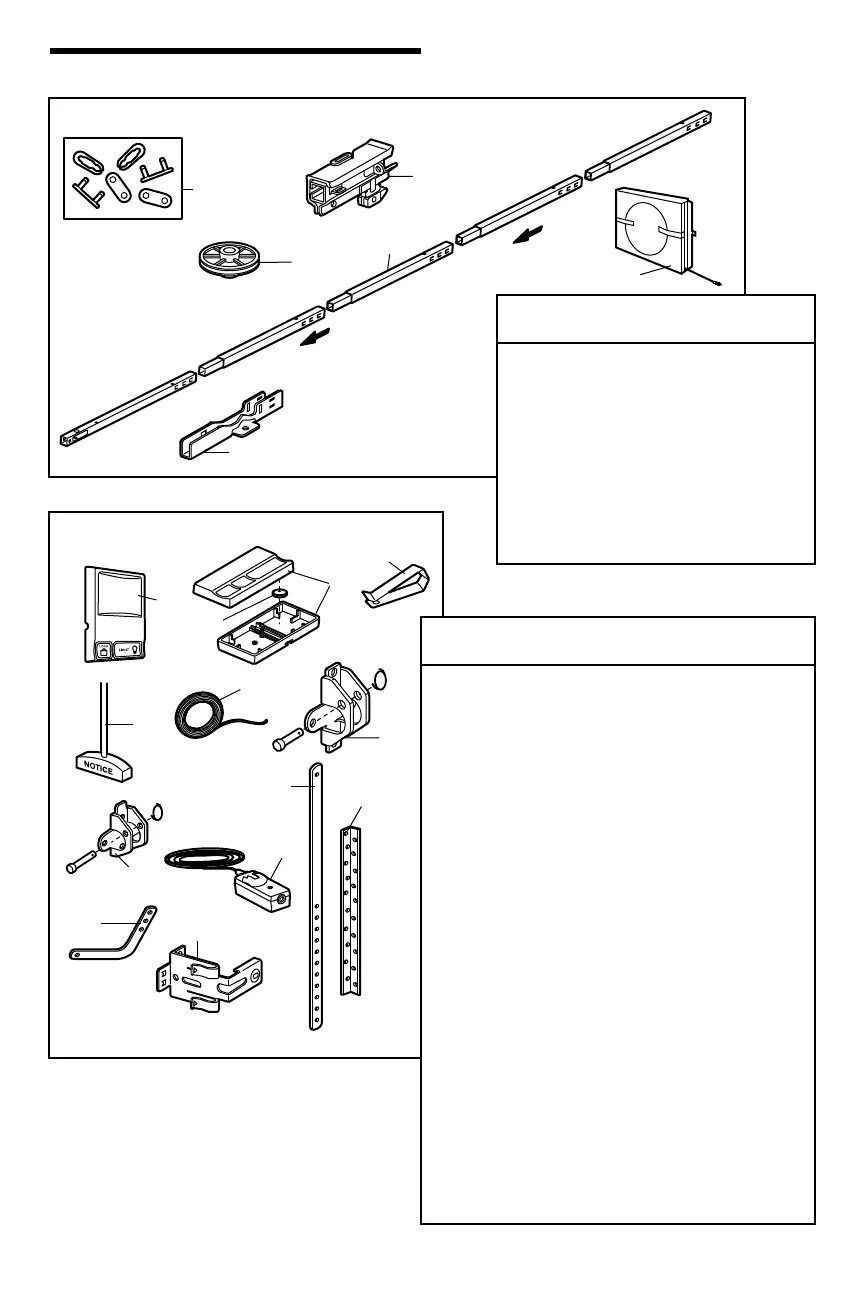

Installation Parts
KEY PART
NO. NO. DESCRIPTION
1 41C494-2 Multi-Function door control panel
2 953D 3-Button remote control
3 10A20 3V2032 Lithium battery
4 29B137 Remote control visor clip
5 41A2828 Emergency release rope and handle
assembly
6 41B4494-1 2-Conductor bell wire, white and
white/red
7 41A5047-1 Door bracket with clevis pin
& fastener
8 41A5047-2 Header bracket with clevis pin
& fastener
9 41A5034 Safety reversing sensor kit
(receiving and sending eyes) with
3 feet (.9 m) 2-conductor bell wire
10 178B34 Straight door arm section
11 12B776 Hanging bracket
12 178B35 Curved door arm section
13 41A5266-1 Safety reversing sensor brackets (2)
NOT SHOWN
41A5258-22 Installation hardware bag
(includes hardware listed on page 7)
114A4259 Owner’s manual
114A4259SP Owner’s manual - Spanish
REPAIR PARTS
Rail Assembly Parts
KEY PART
NO. NO. DESCRIPTION
1 4A1008 Master link kit
2 41C5141-1 Complete trolley
assembly
3 41A5665 Complete rail
4 144C56 Idler pulley
5 41A5807 Chain and cable
6 12D598-1 “U” bracket
NOT SHOWN
183A163 Wear pads
1
4
2
3
6
1
3
5
8
9
7
12
13
10
6
11
2
4
5
