Carton Inventory

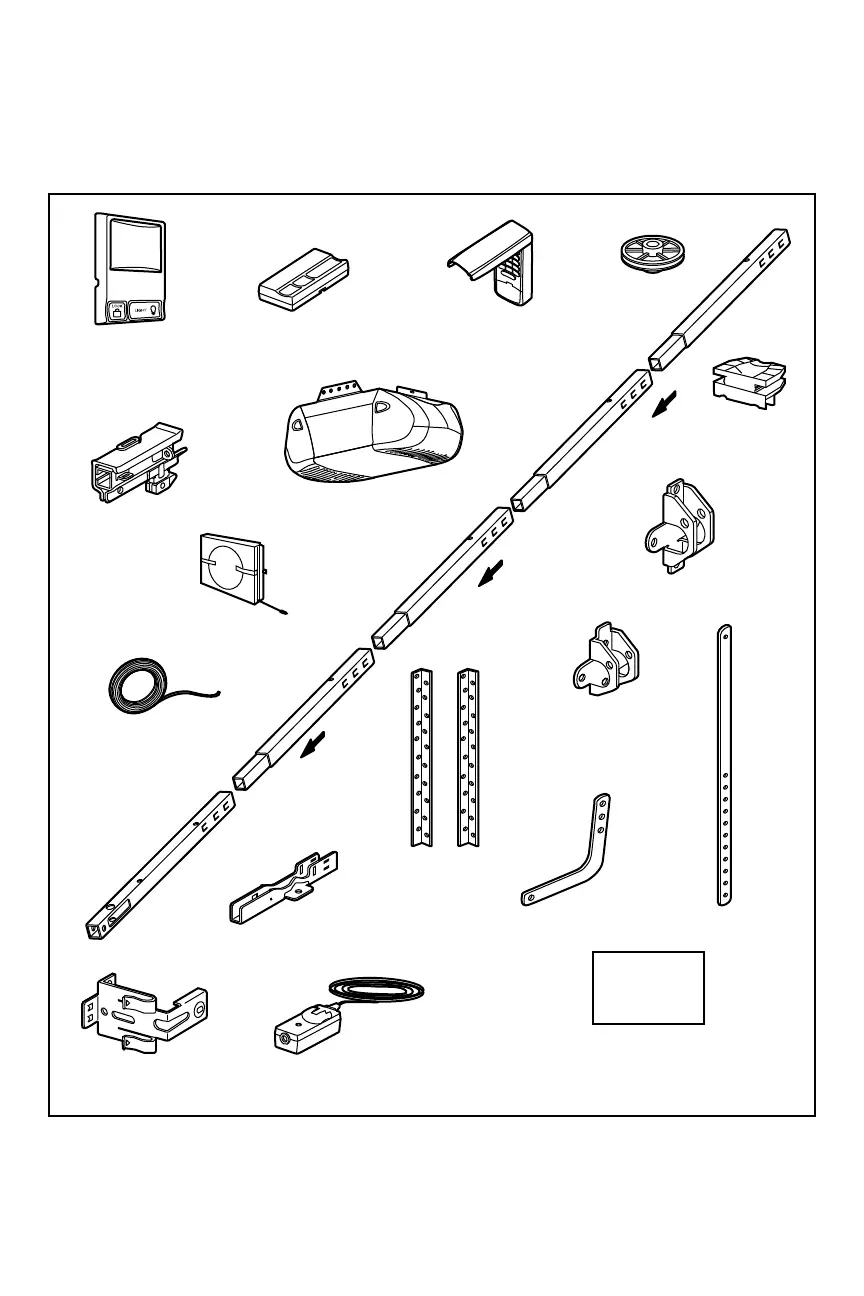

Your garage door opener is packaged in one carton which
contains the motor unit and all parts illustrated below.
Accessories will depend on the model purchased. If
anything is missing, carefully check the packing material.
PARTS MAY BE STUCK IN THE FOAM. Hardware for
assembly and installation is shown on the next page.
Save the carton and packing material until installation and
adjustment is complete.
Multi-Function Door
Control Panel
SECURITY
®
3-Button Remote Control (2)
SECURITY
®
Keyless Entry
Idler Pulley
Chain Spreader
Door Bracket
Header Bracket
Curved Door
Arm Section
Straight Door
Arm Section
Safety Labels
and
Literature
Hanging
Brackets
“U” Bracket
Safety Reversing
Sensor Bracket (2)
Rail
Center/Back
Sections
Chain and Cable in
Dispensing Carton
Trolley
Motor Unit with 2 Light Lenses
2-Conductor Bell Wire
White & White/Red
Rail
Front (Header)
Section
The Protector System
®
(2) Safety Reversing Sensors
(1 Sending Eye and 1 Reversing Eye)
with 2-Conductor White & White/Black
Bell Wire attached
