BEFORE YOU BEGIN
Leave room on the side of the motor for arms and installation work. Make sure to leave sufficient space.
Windload: Even light wind may cause the motor to reverse (safety-reverse) as the forces effecting the gate are very high. This applies especially
to solid panel gates.
Note: An E-lock in combination with a floor locking device should always be installed in order to relieve the motor. In extreme cases strong wind
may bend fittings and door and /or damage the motor .
There are many important factors when deciding on the correct motor. Assuming a well functioning gate, the initial force is the most difficult
moment. When the gate is moving it generally requires a considerably smaller amount of force.
Gate Size: Gate size is an important factor. Wind can slow down gate or distort it, leading to higher amount of required force.
Gate weight: Specification of gate weight represents only a rough parameter, which can vary according to actual demand. Operation is
important.
Influence of temperature: Low outdoor temperatures can impede or even prevent starting torque (ground deformation etc.). High outdoor
temperatures can lead to premature initiation of temperature protection (approx. 135°)
Attention: Motors are not designed to run continuously (continuous operation). The motor warms up and can reach a temperature at which it
shuts down until operating temperature is reached again. Outside temperature and gate represent important parameters for actual operating
duration.

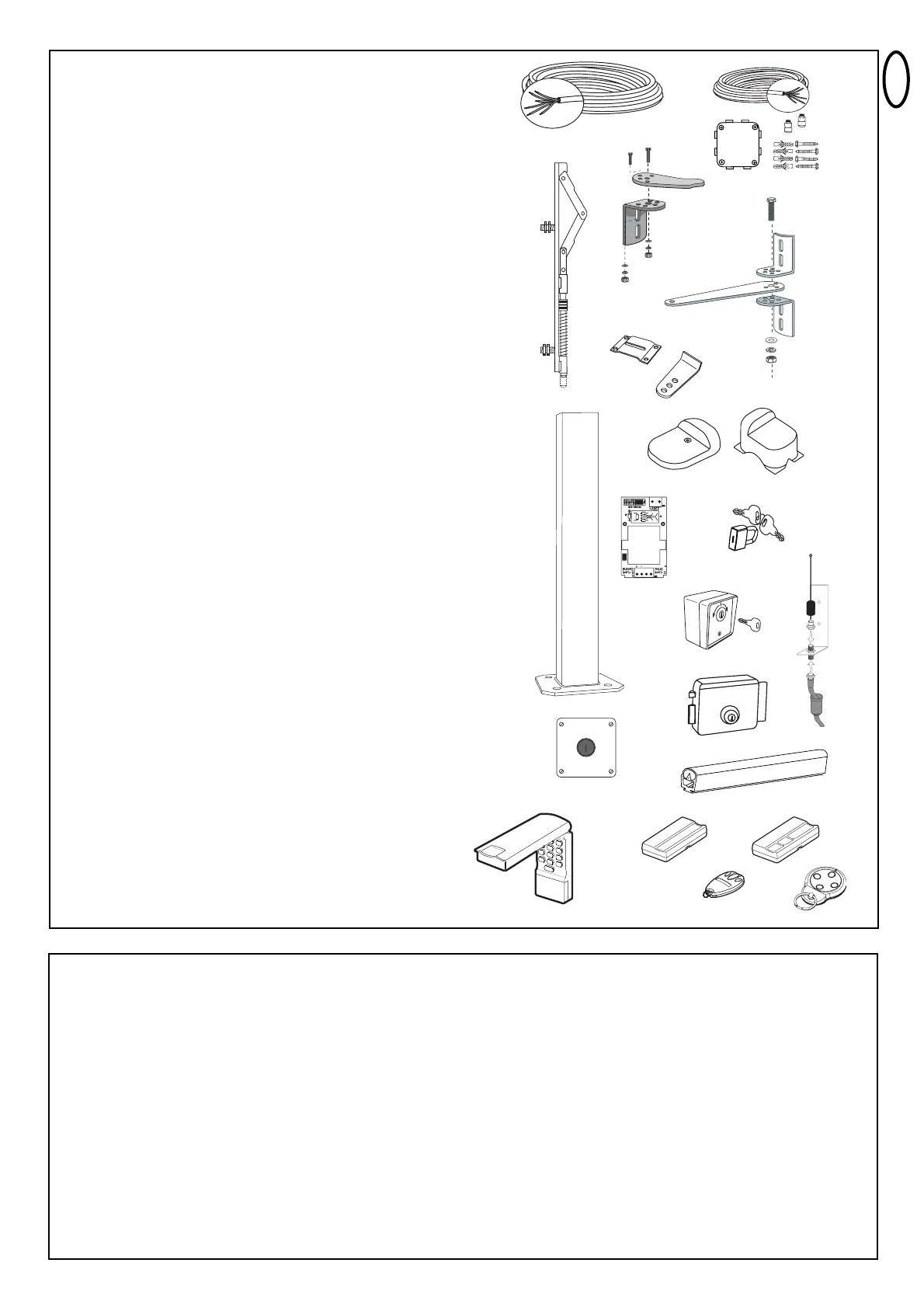

AVAILABLE INSTALLATION ACCESSORIES
1. 041ASWG-0482-50 50m roll of installation cable, 6-pole for
outdoor use, Laying possible without
cable duct with the identical wire colours
as motor
2. LA400-JB40E Kit for cable extension of one installation
unit. Consists of 12m of cable 6-pole with
identical colours, distribution box IP65,
cable screw joints and fastening material
3. Pillar fitting PRO 2 pieces with large 4-hole baseplate
041ASWG-0092, 041ASWG-0090
4. Pillar fitting for round pillars 202077
5. Pillar fitting for gates opening outwards
50-19503
6. Padlock 55124VO (2 keys per lock)
7. E-lock 203285 (12Volts)
8. Transformer for E-lock 207399
9. Floor locking 203339 (in combination with E-lock)
10. Stops for wings 203315 (standard) and 203322
(high)
11. Safety edge 600046 2.5m set of safety edge
(profile & rail)
600053 20m of rubber profile (small)
600077 20m of mounting rail
600077-1 2m of mounting rail
600060 Assembly pack is required for
each safety edge
12. IR Sensor stand 600008 single, height 530mm
13. Emergency Stop switch 600084 plastic enclosure, IP65
14. Keyswitch 100034 2-Function, flush-mount
100041 2-Function, surface-mount
15. External Antenna ANT4X-1LM
16. Remote Controls 94330E 1-channel
94333E 3-channel
94334E 4-channel, mini
94335E 3-channel, mini
17. Wireless keypad 9747E
