en-10

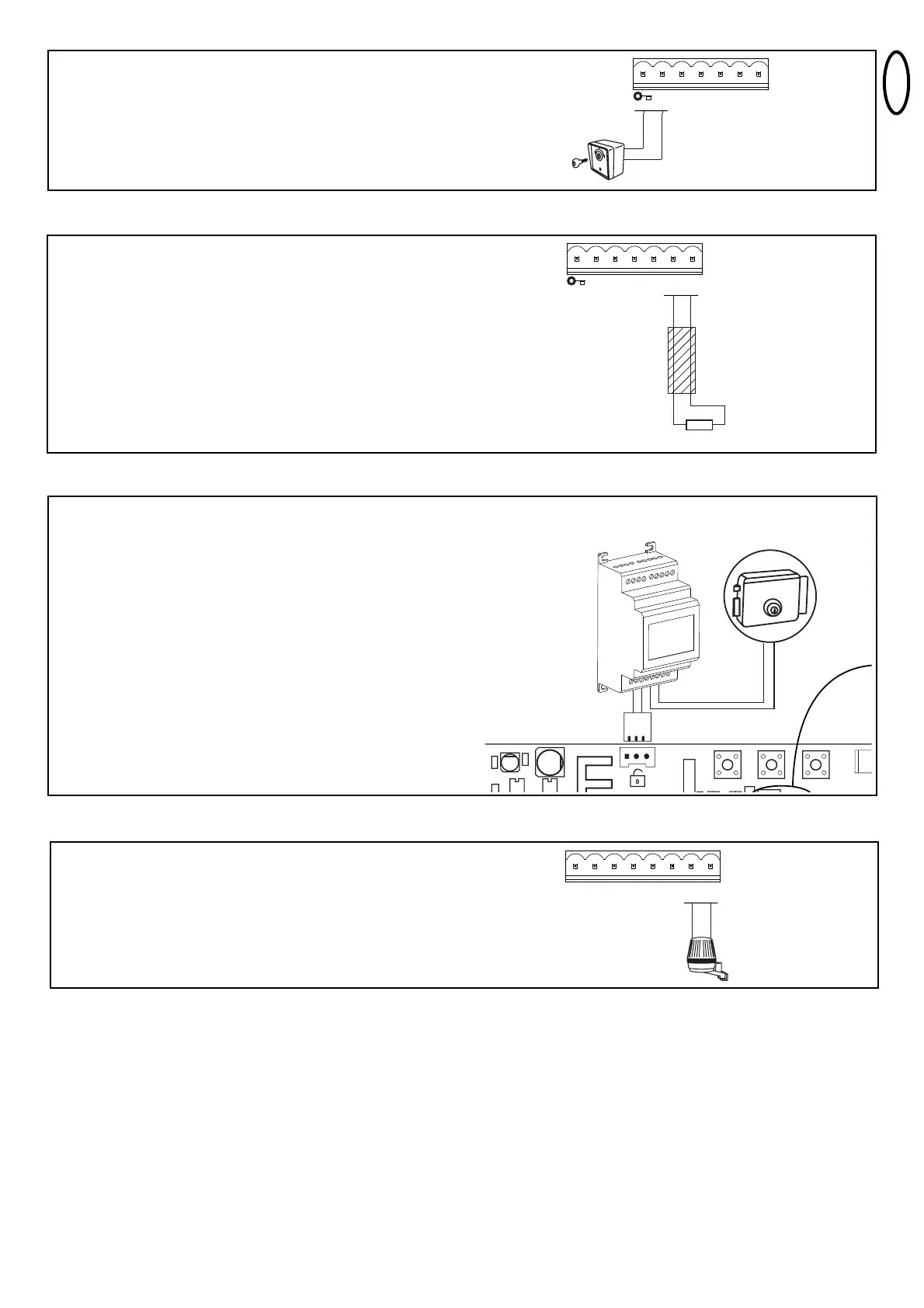

KEY SWITCH (OPTIONAL)
The system can be operated by key switch. It is possible to operate
only 1 wing or two wings. This depends on how the JUMPERS are
used (connectors: key symbol and COM)
E-LOCK (OPTIONAL)
The control board allows the use of a 12V E-lock. (instructions
included with E-lock).
A support board must be connected for the E-lock on the main
board.
Attach support board next to the transformer on to the baseplate
using screws.
Open its casing and make all necessary electrical wiring.
Plug support board in to where the E-lock symbol is depicted.
SAFETY EDGE (OPTIONAL)
A safety edge working according to the 8.2 kilo ohm principle can be
connected to the control board, i.e. a 8.2 kilo ohm test resistor is
attached to the end of the safety edge. It ensures that the electric
circuit is monitored permanently. The control board is supplied with
an 8.2 kilo ohm resistor installed. Several safety edges are
connected in series.
Cable cross-section: 0.5 mm
2
or more.
FLASHING LAMP (OPTIONAL)
A flashing lamp can be connected to the control board. It warns
when the gate is being moved. The flashing light should be fitted as
high as possible and in good clear view. The control board emits a
constant signal that the lamp converts to a flashing signal.
Cable cross-section: 0.5 mm
2
or more.
Voltage: 24 V DC
