TECHNICAL DATA OF MOTOR CONTROL:
Voltage 230VAC
Transformer 230/24VAC minimum60VA
Output motor 24VDC max.
Supply accessories 24VDC - 100mA
Operating temperature -20°C - +55°C
Degree of protection IP54

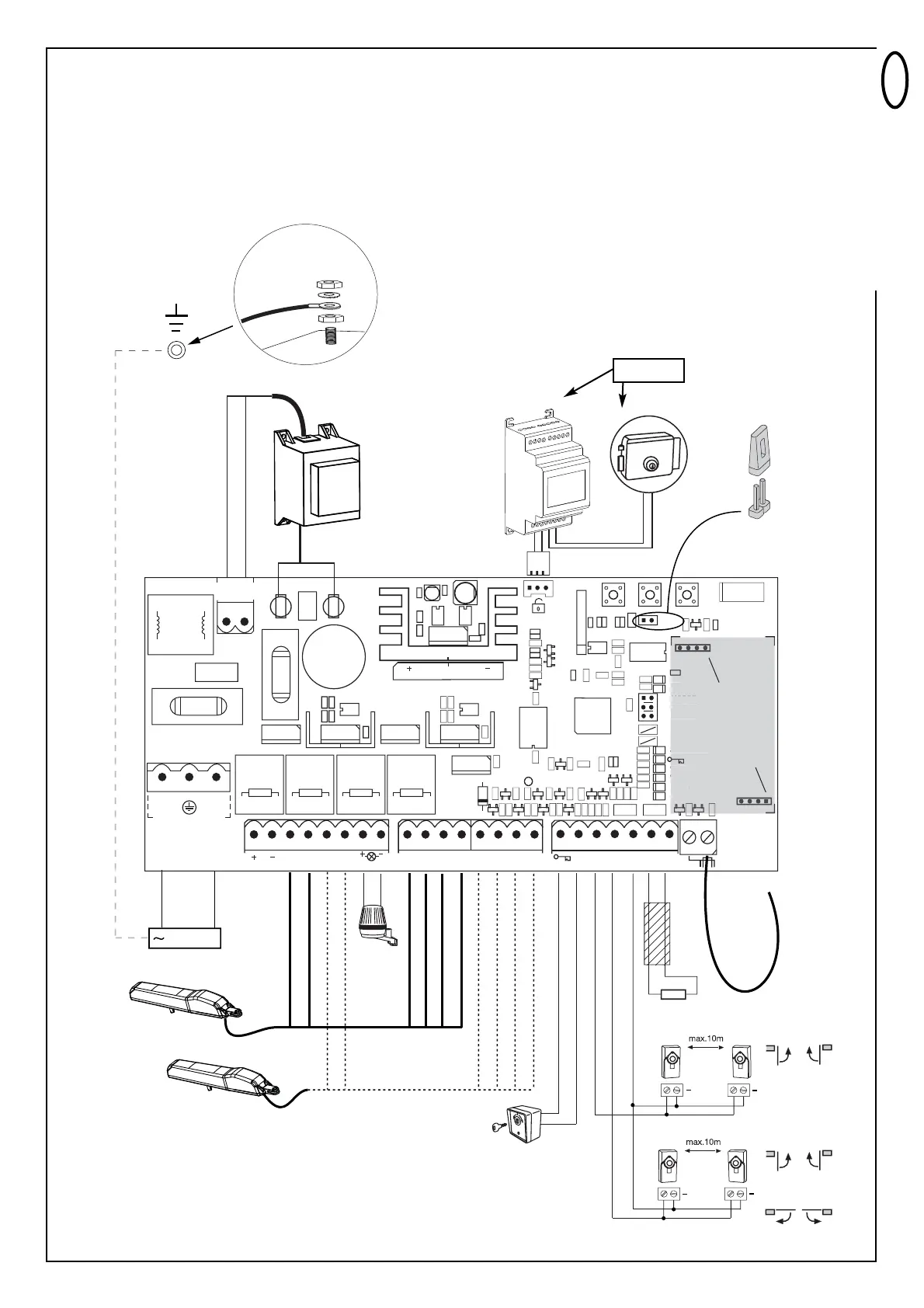

WIRING OF CONTROL / SUMMARY
a) start with still dead 230Volts supply cable on the left side of the box.
b) Attach cable eye to ground wire. Then connect ground wire to base
plate with washer and nut (exactly as shown in picture detail).
Connect all other cables to control.
c. For the drives: Use cables which are suitable for outside use
(Thickness: 0,75mm²). If needed, use the same cable twice.
Attention:Check repeatedly that cable colours are connected correctly
to motor. Otherwise motor might be damaged or will not operate
properly. Pay special attention when using distribution boxes.
We recommend the following accessories: LA400-JB40E Kit for
cable extension of one installation unit. Consists of 12m of
cable 6-pole with identical colours, distribution box IP65,cable screw
joints and fastening material
