Chamberlain SL585 - Page 3

3
24"
(61 cm)
Allow
For
Door
Opening
16.5"
(41.9 cm)
13.5"
(34.3 cm)
22.5"
(57.2 cm)
30"
(76.2 cm)
3 (7.6 cm) Dia. Pipe
(Not Provided)
"
12" Min.
(30.5 cm)
MODEL SL585
• 1/2 HP Motor
Maximum Gate Speed – 11"/sec. (27.9 cm/sec.)
Maximum Gate Weight – 1000 lbs. (453.6 kg)
Maximum Cantilever Gate Width – 25 ft. (7.6 m)
Maximum Overhead Roller Gate Width – 45 ft. (13.7 m)
Maximum V-Track Gate Width – 35 ft. (10.7 m)
• 1 HP Motor
Maximum Gate Speed – 11"/sec. (27.9 cm/sec.)
Maximum Gate Weight – 1600 lbs. (725.8 kg)
Maximum Cantilever Gate Width – 35 ft. (10.7 m)
Maximum Overhead Roller Gate Width – 70 ft. (21.3 m)
Maximum V-Track Gate Width – 50 ft. (15.2 m)
MODEL SL595
• 1/2 HP Motor
Maximum Gate Speed – 12"/sec. (30.5 cm/sec)
Maximum Gate Weight – 1100 lbs. (499 kg)
Maximum Cantilever Gate Width – 25 ft. (7.6 m)
Maximum Overhead Roller Gate Width – 45 ft. (13.7 m)
Maximum V-Track Gate Width – 35 ft. (10.7 m)
• 1 HP Motor
Maximum Gate Speed – 12"/sec. (30.5 cm/sec)
Maximum Gate Weight – 1700 lbs. (771.1 kg)
Maximum Cantilever Gate Width – 35 ft. (10.7 m)
Maximum Overhead Roller Gate Width – 70 ft. (21.3 m)
Maximum V-Track Gate Width – 50 ft. (15.2 m)
• 2 HP Motor
Maximum Gate Speed – 12"/sec. (30.5 cm/sec)
Maximum Gate Weight – 2500 lbs. (1134 kg)
Maximum Cantilever Gate Width – 45 ft. (13.7 m)
Maximum Overhead Roller Gate Width – 90 ft. (27.4 m)
Maximum V-Track Gate Width – 60 ft. (18.3 m)

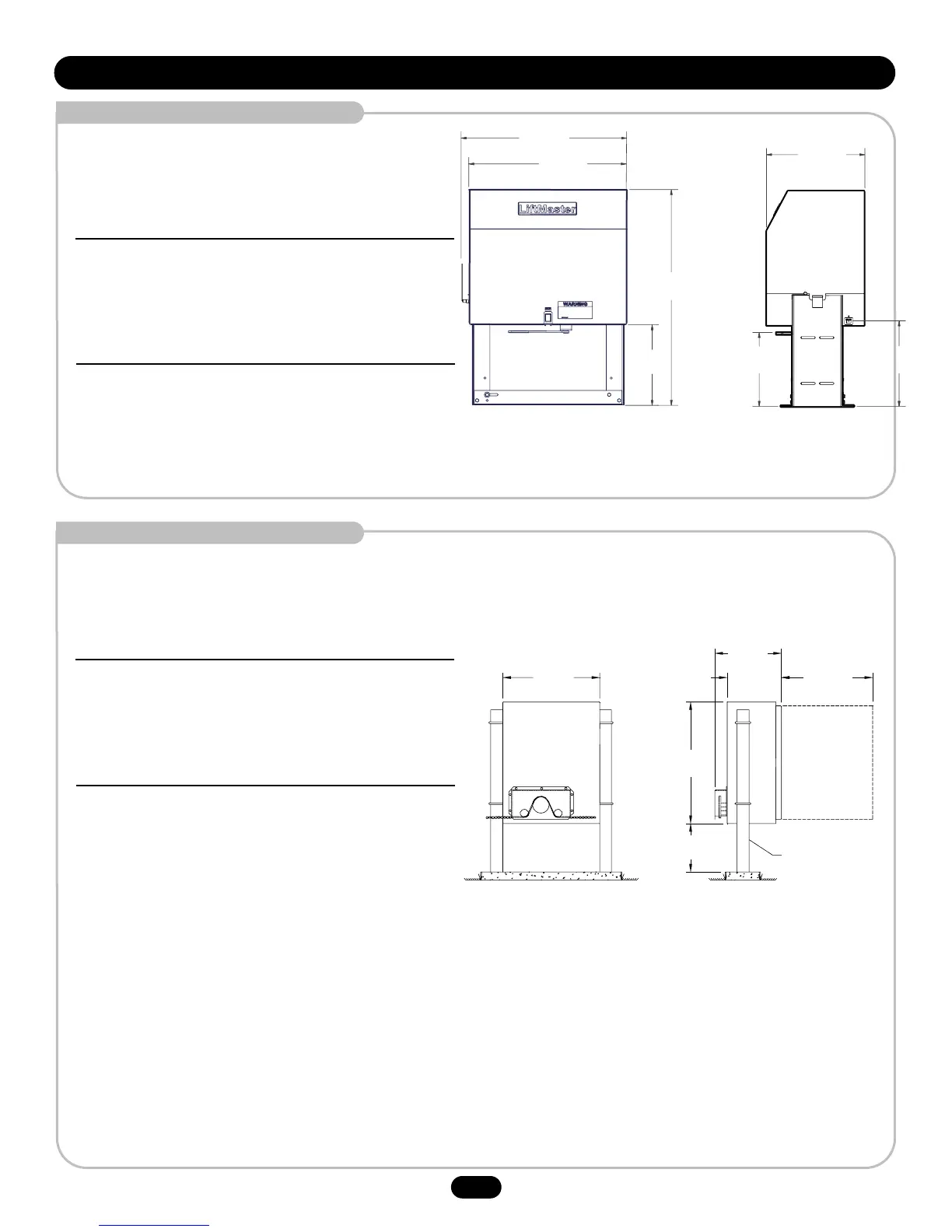

ΟΠΕΡΑΤΟΡ ∆ΙΜΕΝΣΙΟΝΣ ΑΝ∆ ΗΟΡΣΕΠΟΩΕΡ ΧΗΑΡΤ
17.2"
(43.7 cm)
12.9"
(32.8 cm)
14.9"
(37.9 cm)
28.9"
(73.4 cm)
27.5"
(69.9 cm)
14.1"
(35.8 cm)
37.7"
(95.8 cm)
Opposite Gate Side
Gate Side
