Chamberlain Whisper Drive Security+ HD800D - Motor Unit Assembly Parts

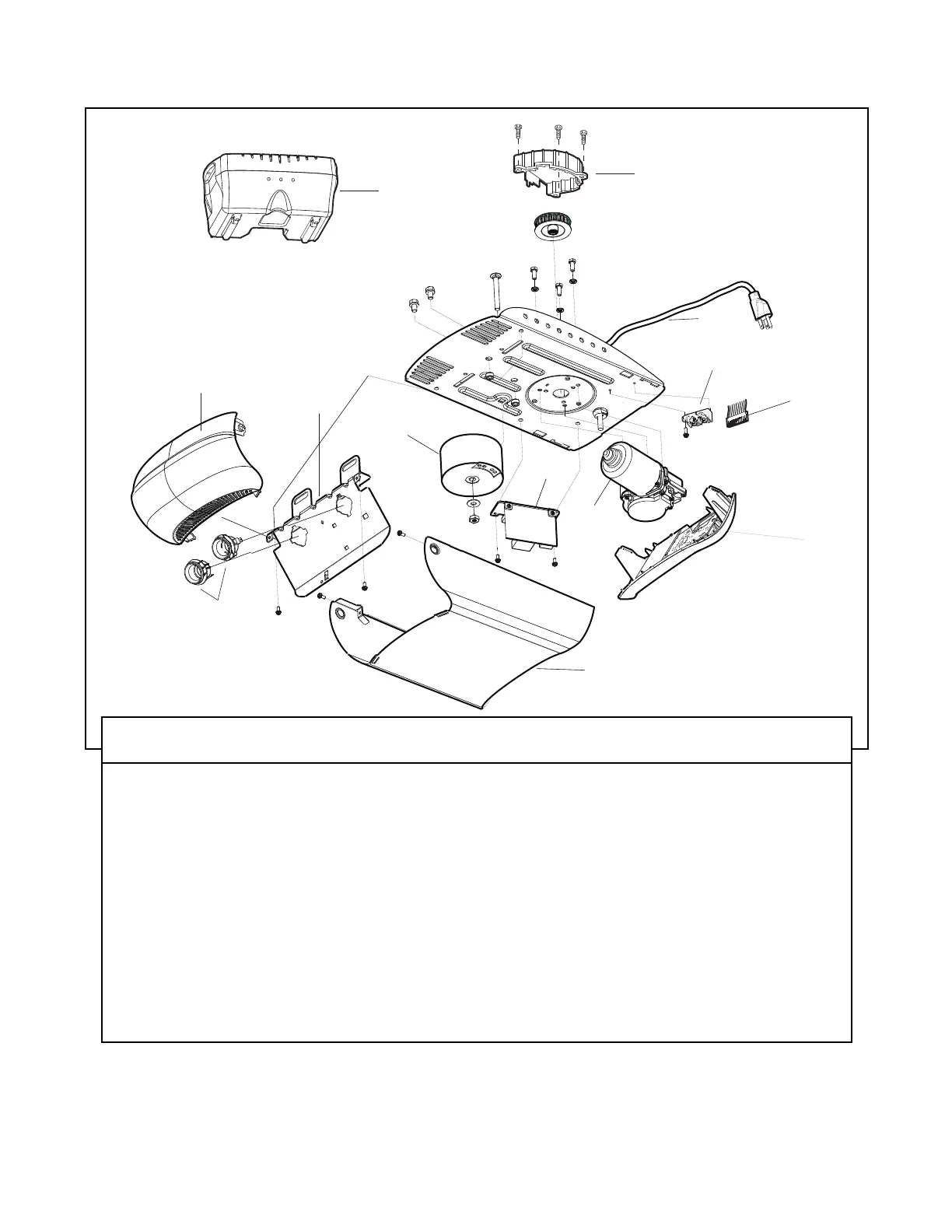

Motor Unit Assembly Parts
40
2
3
4
5
6
7
8
9
10
11
12
1
13
KEY PART
NO. NO. DESCRIPTION
1 41C76 Belt cap and sprocket
2 41B4245 Line cord
3 41B4375-2 Terminal block w/screws
4 41C5317 Wire harness (logic)
41C5839 High voltage wire harness
41C5806 DC motor wire harness
41C5418 Light socket wire harness
5 41D605-1 Motor 80kg/100kg
6 41DB001 Receiver logic board
assembly with end panel
KEY PART
NO. NO. DESCRIPTION
7 41B5351-7 Power supply
8 41C168 Transformer and harness
9 41D630-2 Bracket: light socket, limit
switch
10 41A5490-17 Cover
11 175C147 Light socket
12 108D78 Light lens
13 41A5893-1 BBU housing ONLY
NOT SHOWN
41B591 Battery replacement for BBU
41A5726 BBU circuit board
72A35 Fuse
