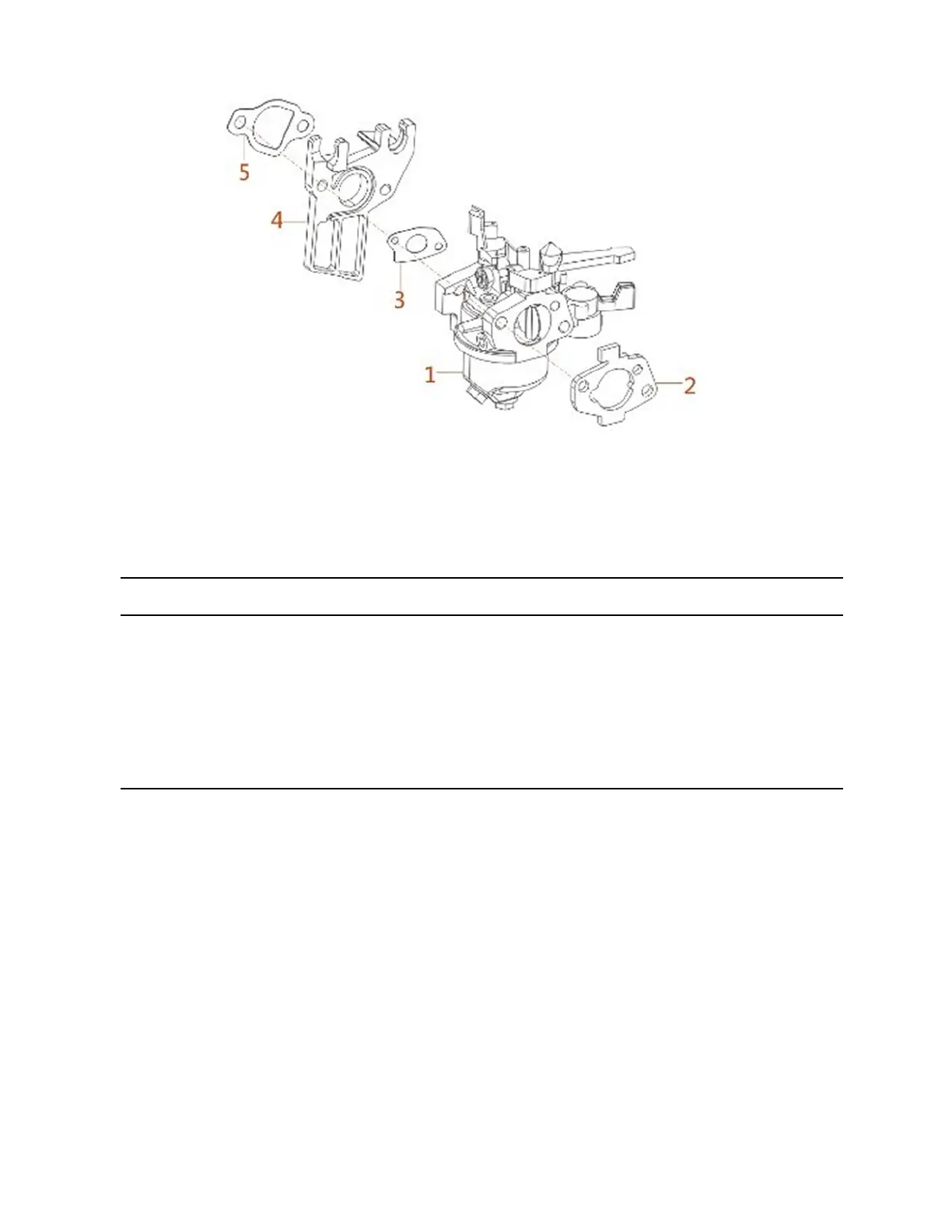

Champ FX200 - Carburetor Assembly
33 pages
Manual
Save Page as PDF
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Carburetor
Assembl
y
Ref
#
Part #
Description
Q
ty
.
1
FX200
-
002
CARBURETOR ASSY
FX200
1
2
CH78364
GASKET, AIR CLEANER
1
3
CH78365
GASKET, CARBURETOR
1
4
CH78366
PLATE, CARBURETOR INSULA
TOR
1
5
CH78367
GASKET, INLET
1
25
27
29
