CONTROLS AND FEATURES
11
CONTROLS AND FEATURES
Read this operator’s manual before operating your generator. Familiarize yourself with the location and function of the controls and
features. Save this manual for future reference.
Generator

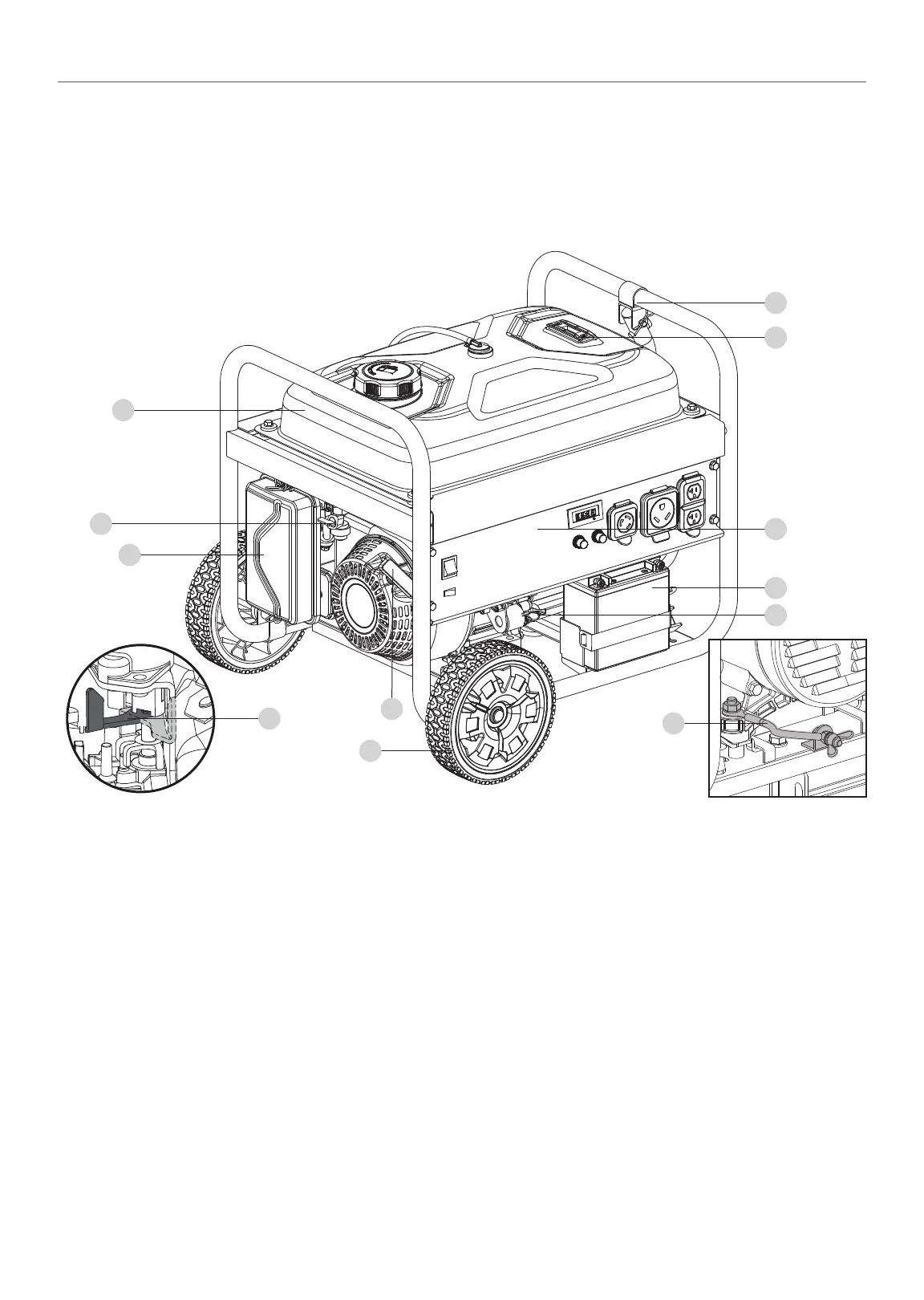

1. Gasoline Tank – 4.7 gal. (17.8 L)
2. Fuel Valve – Used to turn fuel supply on and off to engine.
3. Air Filter – Protects the engine by filtering dust and debris
from the intake air
4. Recoil Starter – Used to manually start the engine
5. Never Flat Wheels – 8 in. (20.3 cm)
6. Oil Fill Cap/Dipstick – Used to check and fill oil level.
7. Battery – Provides 12V DC power the starting system.
8. Control Panel – See “Control Panel” section.
9. Fuel Gauge – Indicates the amount of gasoline in the fuel
tank.
10. Folding Handle – Used to move unit by lifting and rolling
on wheels. Do not use to lift or carry the unit.
11. Choke – Used to start the engine.
12. Ground Terminal – Consult an electrician for local
grounding regulations.
