Champion 100554 - Control Panel

100554 - 3500W WIRELESS START GENERATOR
CONTROLS AND FEATURES
12

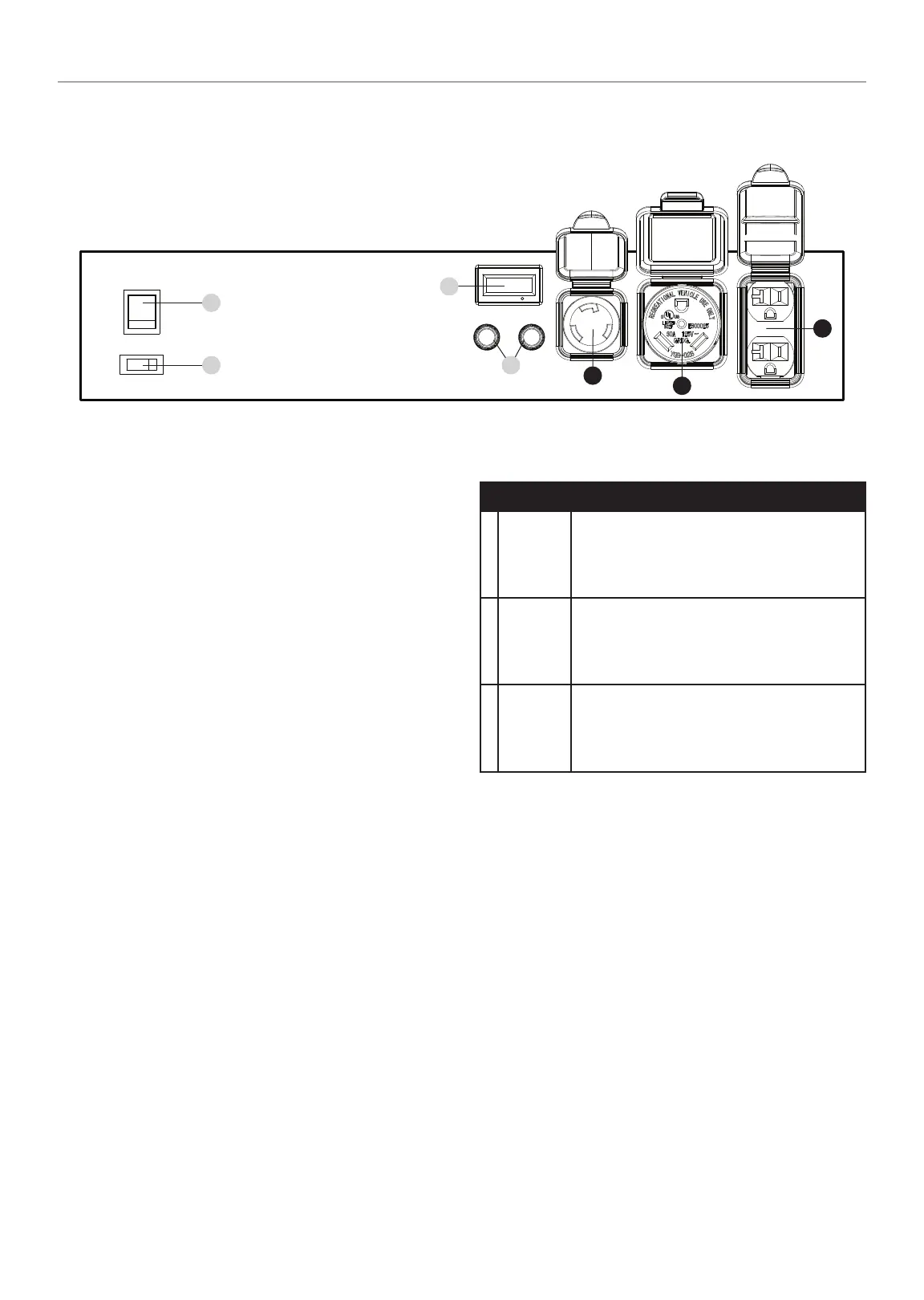

Control Panel
1. Ignition Switch – Used to START or STOP the generator.
2. Battery Switch – Enables/disables starting electrically.
3. Intelligauge – Four mode digital meter for displaying
voltage, frequency (hertz), run time, and total run time.
4. Circuit Breakers (Push Reset) – Protects the generator
against electrical overloads.
RECEPTACLES
A
W
120V AC, 30A Locking (NEMA L5-30R)
May be used to supply electrical power for
operation of 120 Volt AC, 30 Amp, single
phase, 60 Hz electrical loads.
B
t
120V AC, 30A RV (NEMA TT-30R)
May be used to supply electrical power for
operation of 120 Volt AC, 30 Amp, single
phase, 60 Hz electrical loads.
C
A
(2×) 120V AC, 20A (NEMA 5-20R)
May be used to supply electrical power for
operation of 120 Volt AC, 20 Amp, single
phase, 60 Hz electrical loads.
1
2
3
4
A
B
C
