201110 - 9200W ELECTRIC START GENERATOR
CONTROLS AND FEATURES
12
CONTROLS AND FEATURES
Read this operator’s manual before operating your generator. Familiarize yourself with the location and function of the controls and
features. Save this manual for future reference.

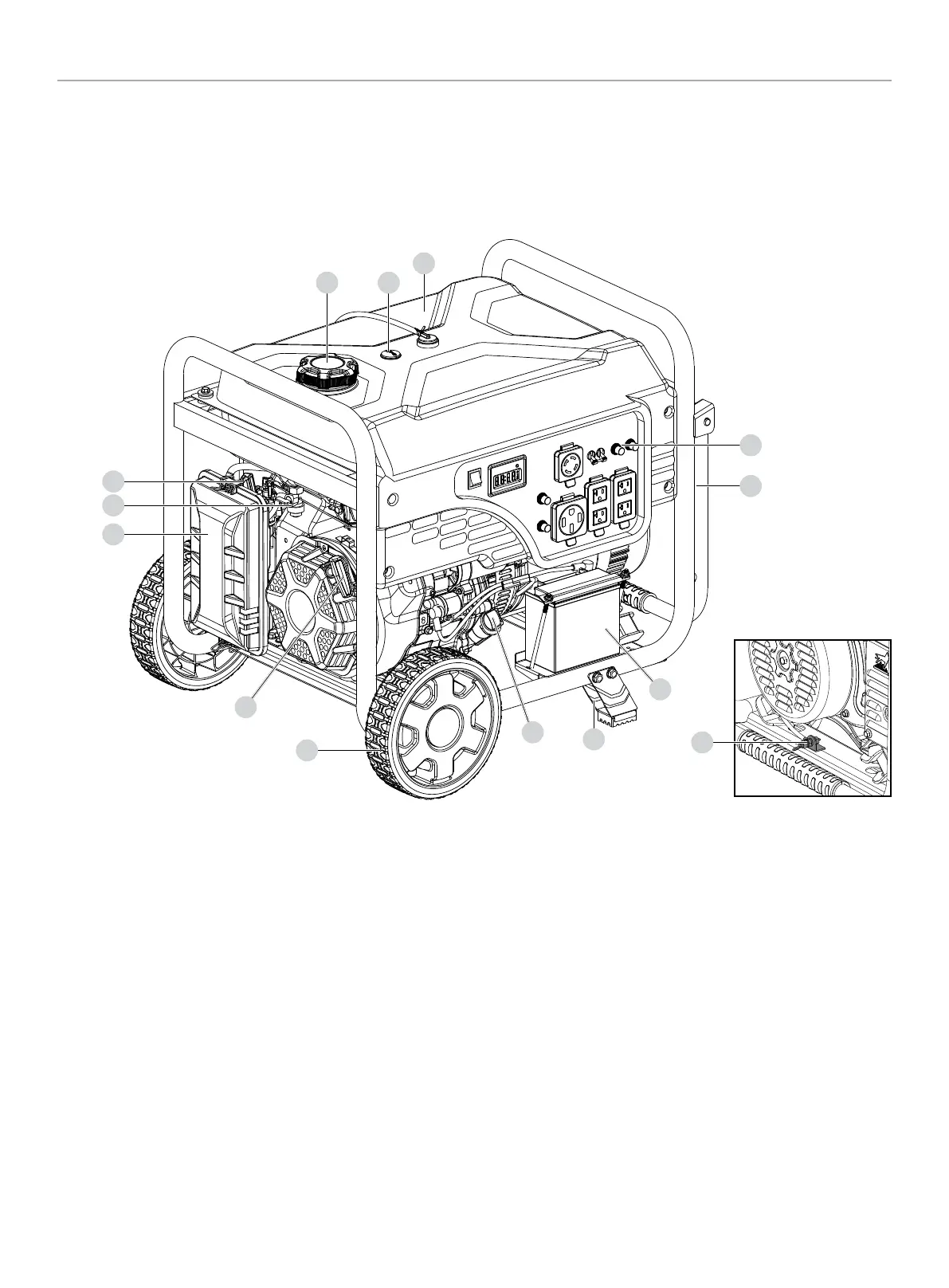

Generator
1. Gasoline Tank – 7.7 gal. (29.1 L)
2. Gasoline Gauge
3. Fuel Cap – Remove to add fuel.
4. Choke lever – Used to start the engine.
5. Fuel Valve – Used to turn fuel supply on and off to engine.
6. Air Filter – Protects the engine by filtering dust and debris
from the intake air.
7. Recoil Starter – Used to manually start the engine.
8. Never Flat Wheels – 9.5 in. (24.1 cm)
9. Oil Fill Cap/Dipstick – Used to check and fill oil level.
10. Support Leg
11. Battery – Provides 12V DC power the starting system.
12. Ground Terminal – Consult an electrician for local grounding
regulations.
13. Folding Handle – Used to move unit by lifting and rolling on
wheels. Do not use to lift or carry the unit.
14. Control Panel – See Control Panel section.
1
2
3
10
11
12
4
14
13
6
8
9
7
5
