Champion 201110 - Control Panel Overview; Ignition Switch and Intelligauge; CO Shield LED and Circuit Breakers; Electrical Receptacles

201110 - 9200W ELECTRIC START GENERATOR
CONTROLS AND FEATURES
13

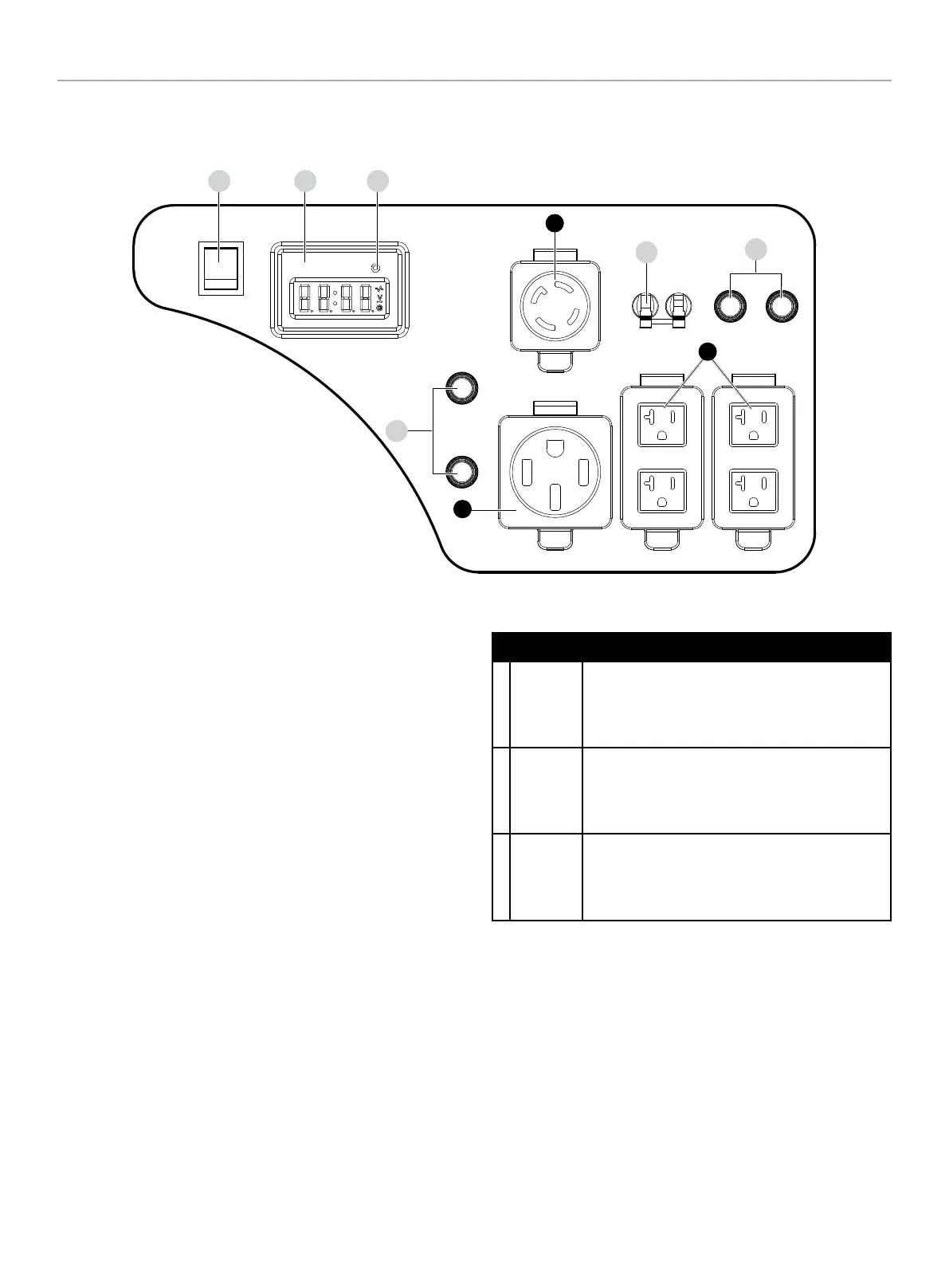

Control Panel
1. Ignition Switch – Used to START or STOP the generator.
2. Intelligauge – Four mode digital meter for displaying voltage,
frequency, run time, and total run time.
3. CO Shield
®
LED – The CO Shield
®
technology monitors
for accumulation of poisonous carbon monoxide (CO) gas
produced by engine exhaust when the generator is running. If
CO Shield
®
detects elevated levels of CO gas, it automatically
shuts off the engine.
* *See CO Shield section for more information
4. Circuit Breakers (Flip Reset) – Protects the generator
against electrical overloads.
5. Circuit Breakers (Push Reset) – Protects the generator
against electrical overloads.
RECEPTACLES
A
Y
120/240V AC, 30A Locking (NEMA L14-30R)
May be used to supply electrical power for
operation of 120/240 Volt AC, 30 Amp, single
phase, 60 Hz electrical loads.
B
D
120/240V AC, 38A (NEMA 14-50R)
May be used to supply electrical power for
operation of 120/240 Volt AC, 38 Amp, single
phase, 60 Hz electrical loads.
C
C
(4×) 120V AC, 20A GFCI (NEMA 5-20R)
May be used to supply electrical power for
operation of 120 Volt AC, 20 Amp, single phase,
60 Hz electrical loads.
1 2 3
5
5
4
A
C
B
